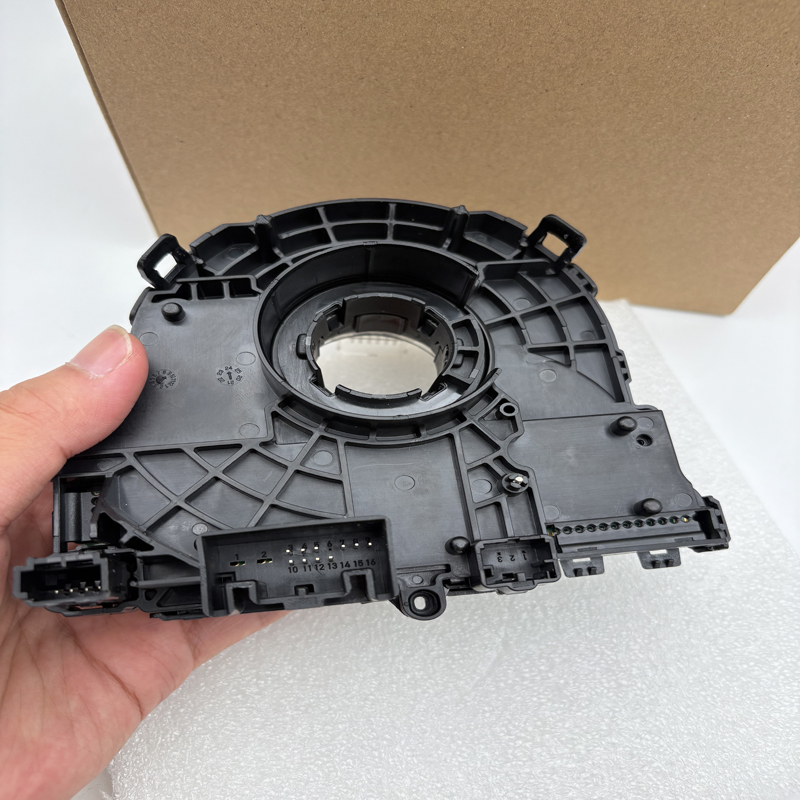

Clock Spring 8K0953568G 8K0953568M with Steering Angle Sensor for Audi A4 A5 Q5 S4 S5 2009-2016

Direct replacement clock spring (spiral cable) with integrated steering angle sensor for Audi A4/A5/Q5/S4/S5 (2009-2016). Replaces OEM #8K0953568G, 8K0953568M, 8K0956568P. Includes angle sensor. Essential for driver airbag (SRS), horn, radio, cruise, and ESP. Requires post-installation calibration (G85, code 40168). High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 2-year warranty. Verify compatibility.

Product Description – Clock Spring 8K0953568G/8K0953568M with Steering Angle Sensor for Audi A4/A5/Q5 (2009-2016)

🔍 IMPORTANT – PLEASE READ

This clock spring (spiral cable / slip ring) is a critical safety component behind the steering wheel, maintaining electrical connection for airbag (SRS), horn, radio, cruise control, and ESP/stability systems.

⚠️ CRITICAL: This part includes integrated steering angle sensor (G85). If your original sensor is separate, you must transfer it.

⚠️ POST-INSTALLATION REQUIREMENT: After installation, the steering angle sensor (G85) must be recalibrated using VCDS/ODIS (security access code 40168) to clear fault code 00778 and restore ESP function.

OEM Cross Reference: 8K0953568G, 8K0953568M, 8K0953568N, 8K0953568P, 8K0956568P, 8K0956568N. 8K0953568M supersedes 8K0953568G.

Return Policy: Not returnable once installed. Ensure compatibility before purchase.

Compatible Audi Models

Model Years Chassis
A4 / S4 2009–2016 B8 / B8.5
A5 / S5 / RS5 2008–2017 B8 platform
Q5 / SQ5 2009–2017 8R
allroad 2013–2016 B8.5

Technical Specifications

  • Brand: ROYUAN – Premium aftermarket manufacturer
  • Function: Clock spring / Airbag spiral cable / Slip ring with integrated steering angle sensor (G85)
  • Placement: Steering column, behind steering wheel
  • OEM Supplier: Kostal
  • OE Numbers: 8K0953568G, 8K0953568M, 8K0953568N, 8K0953568P, 8K0956568P, 8K0956568N

Key Functions
✅ Airbag (SRS) activation  ✅ Horn  ✅ Steering wheel audio controls  ✅ Cruise control  ✅ ESP / Stability control (via integrated angle sensor).

Failure Symptoms
⚠️ Airbag warning light  📢 Horn not working  🎛️ Controls unresponsive  🔊 Clicking noise  🚨 ESP/ESC warning light  🚨 Airbag may not deploy.

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect battery negative terminal and wait at least 5 minutes for airbag discharge.

Centering: Keep front wheels straight. Do NOT remove the centering clip until fully installed. Turn rotor clockwise to stop, then back approx. 2.5 turns to center.

Sensor Transfer: This part includes integrated angle sensor. If original has separate sensor, transfer it to new unit.

CALIBRATION (CRITICAL): After installation, calibrate G85 using VCDS/ODIS:

  1. Go to address word 16 (Steering wheel electronics).
  2. Select "Security Access" and enter code 40168.
  3. Choose "Basic Settings" (function 04) -> "Steering angle sensor: calibration".
  4. Turn wheel left/right ~30°, return to center, confirm.
  5. Clear fault codes.

Verification: Compare connectors with original. Provide VIN for confirmation.

Post-Installation: Test horn, controls, and ensure airbag/ESP lights turn off.

Professional Installation: Strongly recommended (requires diagnostic tool for calibration).

Quality You Can Trust

  • High-purity copper ribbon – stable signal
  • Flame-retardant housing – safety certified
  • 300,000-cycle endurance test (-40°C to +85°C)
  • Centering clip included – do not remove early
  • 2-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), installation guide on request.
