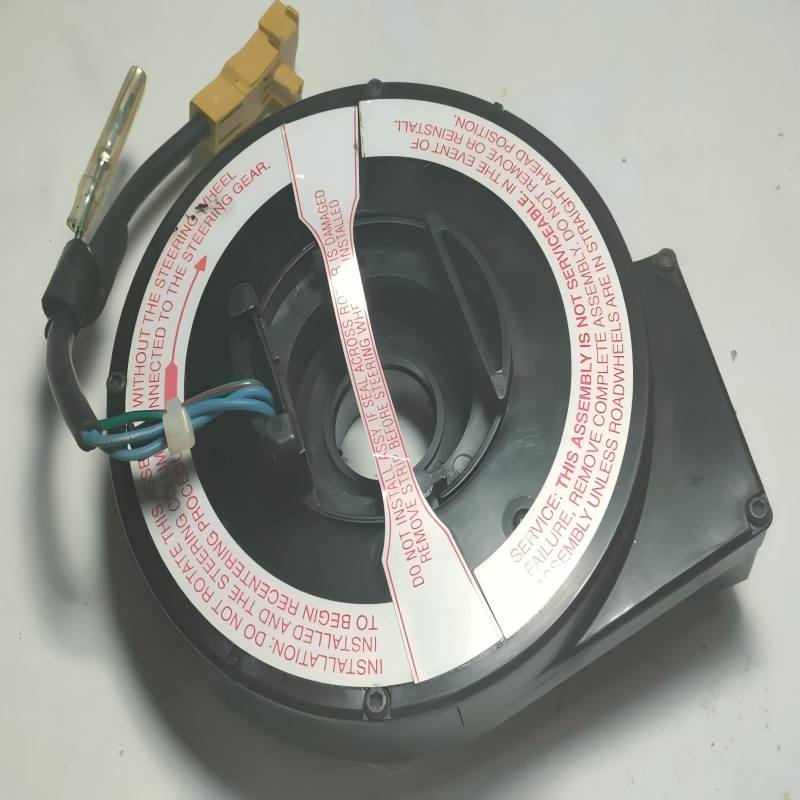

4685684AD/CSP125 Clock Spring - Chrysler/Dodge/Plymouth MPV Series 1996-2000
Precise Compatibility
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dodge |
Caravan |
1996-2000 |
Fits all trims |
|
Dodge |
Grand Caravan |
1996-2000 |
Fits all trims |
|
Plymouth |
Grand Voyager |
1996-2000 |
Fits all trims |
|
Plymouth |
Voyager |
1996-2000 |
Fits all trims |
💡
Important Note: This part is NOT compatible with any models manufactured in 2001 or later, nor with non-MPV models (e.g., sedans, trucks).
Product Features & Technical Specifications
🔧 Core Functions
•
Airbag circuit: Maintains continuous and stable connection for the airbag system during steering wheel rotation, a critical component for airbag deployment
•
Horn functionality: Ensures unbroken electrical path for reliable horn operation
•
Multi-function control: Transmits signals for steering wheel-mounted audio and cruise control functions
•
Diagnostic compatibility: Supports trouble code reading and detection via the original vehicle ECU system
✅ Quality Assurance
•
100% batch inspection: Tested for electrical conductivity, insulation resistance (≥10MΩ) and rotational durability
•
Premium construction: High-conductivity copper conductors, flame-retardant ABS housing, and reinforced torsion springs
•
Service life: Equivalent to OEM standards (≥1 million rotational cycles), suitable for frequent steering operations
•
Operating environment: Temperature range from -40°C to +85°C, adaptable to various climatic conditions
🔍 Technical Specifications
•
Interface: Perfectly matches the original steering wheel control module for plug-and-play installation
•
Rotation angle: Designed to support maximum ±3 full rotations of the steering wheel, meeting the steering requirements of MPV models
•
Weight: Approximately 0.35kg, lightweight design that does not affect steering feel
•
Certification: Complies with ISO/TS 16949 automotive parts quality standards
Wholesale Supply Information
•
MOQ: 10 units, mixed orders are supported
•
Stock availability: 8,500+ units in stock for immediate shipment
•
Packaging: Neutral or Royuan-branded packaging, shockproof and moisture-proof design suitable for international shipping
•
Documentation provided: Technical Data Sheet (TDS), Certificate of Origin, and cross-reference compatibility table
Contact for Quotation: Official Website - www.royuan.ltd | WhatsApp - 86-18766792702
Installation & Precautions
Safety first: Disconnect the negative battery terminal and wait 15 minutes before replacement to ensure the airbag system is fully powered off
Professional installation: Recommended to be installed by certified technicians to avoid airbag malfunctions caused by improper installation
Part verification: Confirm that part numbers 4685684AD/CSP125 match the vehicle’s VIN information before installation
Installation location: Located on the steering column under the steering wheel, accessible after removing the steering wheel
Common Faults & Solutions
|
Fault Symptom |
Possible Cause |
Solution |
|
Airbag warning light on |
Internal circuit breakage of the clock spring |
Replace with 4685684AD/CSP125 |
|
Horn not working |
Poor contact or internal wire damage |
Inspect and replace the clock spring |
|
Steering wheel controls unresponsive |
Cable wear or breakage |
Replace immediately to ensure airbag function |
Summary
The 4685684AD/CSP125 Clock Spring is the OEM-equivalent replacement part for 1996-2000 MPV models of Chrysler, Dodge and Plymouth, fitting all listed models and trims. As a safety-critical component, it ensures the stable operation of the airbag system, horn and multi-function controls. Royuan offers a 12-month warranty with an MOQ of only 10 units and sufficient stock, making it your ideal choice for auto parts supply chain.
