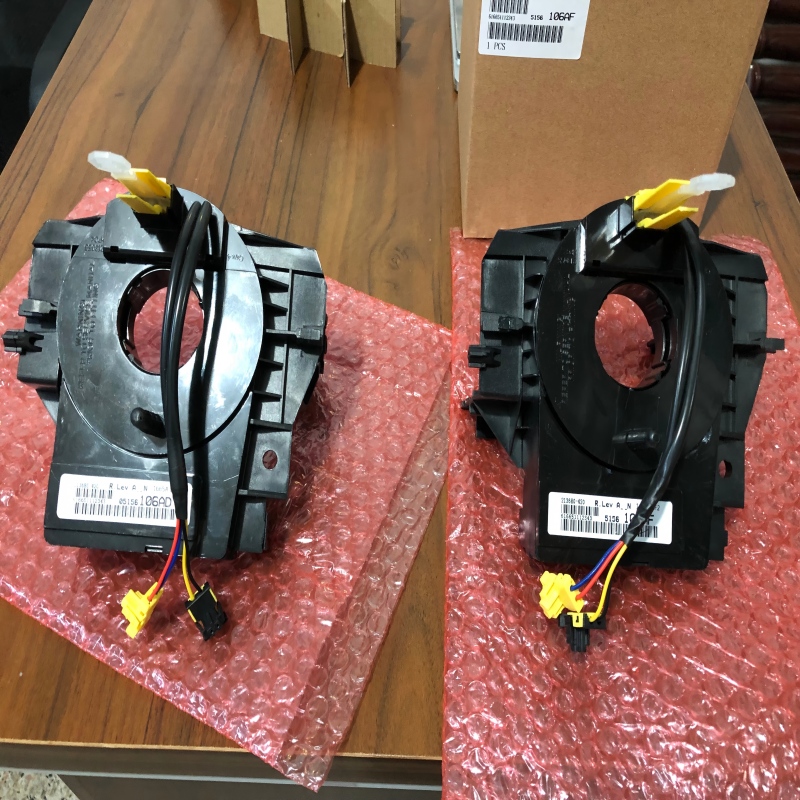

05156106AD/56046533AE et al. Clock Spring - Chrysler/Jeep/Dodge 2007-2016 (With Sensor)
Royuan OEM-grade wholesale Clock Spring (Part Numbers: 05156106AD, 56046533AE, 56046533AF et al.) fits 2007-2016 Chrysler, Jeep, Dodge models including 2010 Dodge Caliber. Integrated with sensor, it ensures stable transmission of airbag, horn, steering control and sensor signals. Batch-tested, ISO/TS 16949 certified, 12-month warranty, ideal for auto parts distributors and repair shops.
Precise Compatibility
| Brand | Model | Year | Notes |
|---|---|---|---|
| Chrysler | Multiple Models | 2007-2016 | With sensor; verify VIN for exact fitment |
| Jeep | Multiple Models | 2007-2016 | With sensor; compatible with applicable variants |
| Dodge | Multiple Models | 2007-2016 | With sensor; full-range compatibility for eligible trims |
| Dodge | Caliber | 2010 | Exclusive sensor-equipped variant fitment |
⚠️ Important Note: This part is NOT compatible with non-sensor-equipped variants of the listed models, nor with vehicles outside the 2007-2016 year range. Double-check vehicle sensor configuration and VIN before purchase.
Product Features & Technical Specifications
🔧 Core Functions
- Airbag circuit: Maintains continuous and stable connection for airbag system during steering wheel rotation, critical for deployment safety.
- Horn functionality: Ensures unbroken electrical path for reliable horn operation in all driving scenarios.
- Steering wheel controls: Transmits signals for steering wheel-mounted audio, cruise and auxiliary functions.
- Sensor signal transmission: Integrated sensor enables accurate data transmission for vehicle dynamic control systems.
- Diagnostic compatibility: Supports trouble code reading and system detection via original vehicle ECU.
✅ Quality Assurance
- 100% batch inspection: Tested for electrical conductivity, insulation resistance (≥10MΩ), rotational durability and sensor signal stability.
- Premium construction: High-conductivity copper conductors, flame-retardant ABS housing, reinforced torsion springs and sealed sensor module.
- Service life: Equivalent to OEM standards (≥1 million rotational cycles), adapted to long-term use with sensor integration.
- Operating environment: Temperature range from -40°C to +85°C, resistant to vibration, dust and moisture.
- Certification: Complies with ISO/TS 16949 automotive parts quality standards.
🔍 Technical Specifications
- Interface: Perfectly matches original steering column control module for plug-and-play installation.
- Rotation angle: Supports maximum ±3 full steering wheel rotations, meeting the requirements of Chrysler/Jeep/Dodge models.
- Sensor integration: Built-in sensor with precise signal transmission, no additional calibration required for matching models.
- Weight: Approximately 0.36kg, lightweight design that does not affect steering feel.
Wholesale Supply Information
- MOQ: 10 units, mixed orders with other Royuan clock spring models are supported.
- Stock availability: 6,000+ units in stock for immediate shipment.
- Packaging: Neutral or Royuan-branded packaging, shockproof and moisture-proof design suitable for international logistics.
- Documentation provided: Technical Data Sheet (TDS), Certificate of Origin, cross-reference compatibility table.
- Contact for Quotation: Official Website - www.royuan.ltd | WhatsApp - 86-18766792702
Installation & Precautions
- Safety first: Disconnect the negative battery terminal and wait 15 minutes before replacement to power off the airbag and sensor systems completely.
- Professional installation: Recommended to be installed by certified technicians familiar with sensor-equipped steering systems.
- Part verification: Confirm that the part number matches the vehicle’s VIN, model, year and sensor configuration before installation.
- Sensor protection: Avoid collision or damage to the integrated sensor module during installation and transportation.
- Installation location: Located on the steering column under the steering wheel, accessible after removing the steering wheel assembly.
Common Faults & Solutions
| Fault Symptom | Possible Cause | Solution |
|---|---|---|
| Airbag warning light on | Internal circuit breakage or sensor connection failure | Replace with matched part and check sensor wiring |
| Horn not working | Poor contact or wire damage in clock spring | Inspect and replace the clock spring |
| Steering wheel controls unresponsive | Cable wear or sensor signal interruption | Replace immediately and verify sensor function |
| Sensor malfunction warning | Sensor module damage or signal transmission failure | Install new clock spring with integrated sensor |
Summary
The 05156106AD, 56046533AE and other cross-referenced clock springs are OEM-equivalent replacement parts with integrated sensor, exclusively designed for 2007-2016 Chrysler, Jeep, Dodge models and 2010 Dodge Caliber. As a safety-critical component, it ensures stable operation of airbag, horn, steering control and sensor systems, adapting to various vehicle operating conditions. Royuan offers 12-month warranty, sufficient stock and flexible MOQ, making it your trusted choice for auto parts supply chain.
