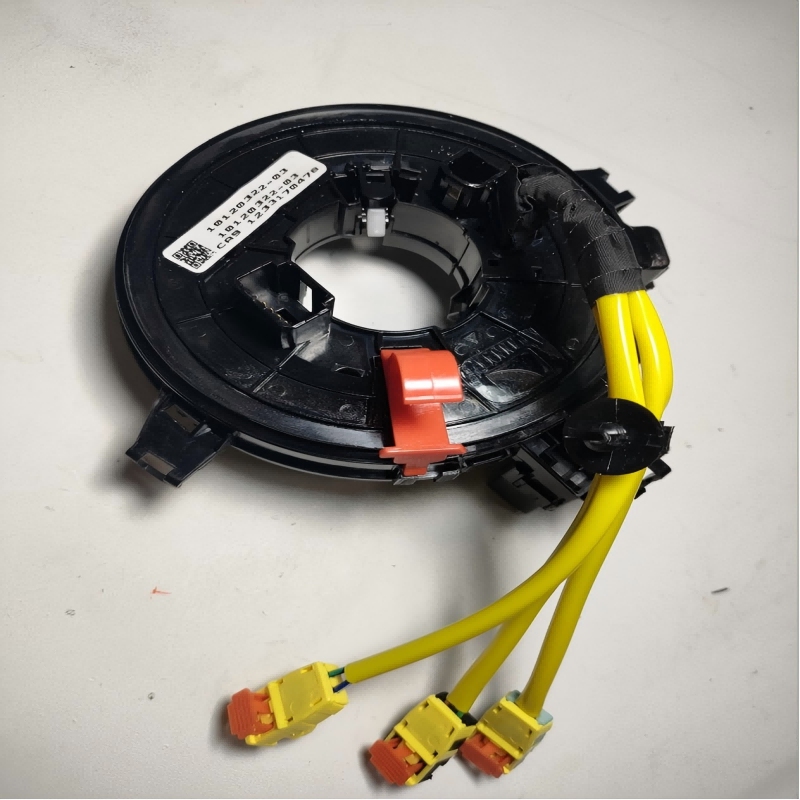

10120322 Clock Spring (Three-Plug) - Chrysler Pacifica 2017
Royuan OEM-grade wholesale Clock Spring (Part Number: 10120322) features a three-plug design, exclusively fitting 2017 Chrysler Pacifica. It ensures stable electrical connections for airbags, horns and steering wheel controls. Batch-tested, ISO/TS 16949 certified with 12-month warranty, ideal for auto parts distributors and repair shops.
Precise Compatibility
| Brand | Model | Year | Notes |
|---|---|---|---|
| Chrysler | Pacifica | 2017 | Three-plug configuration only; fits all trims |
⚠️ Important Note: This part is NOT compatible with Chrysler Pacifica models outside 2017, nor with variants equipped with 2-plug or 4-plug clock springs. Verify plug quantity and vehicle VIN before purchase.
Product Features & Technical Specifications
🔧 Core Functions
- Airbag circuit: Maintains continuous and stable connection for airbag deployment, a critical safety component for 2017 Pacifica.
- Horn functionality: Ensures unbroken electrical path for reliable horn operation in all driving scenarios.
- Steering wheel controls: Transmits signals for steering-mounted audio, cruise and vehicle function controls.
- Three-plug advantage: Optimized interface design for 2017 Pacifica’s electrical architecture, ensuring no signal interference.
- Diagnostic compatibility: Works seamlessly with the vehicle’s ECU for trouble code reading and system checks.
✅ Quality Assurance
- 100% batch inspection: Tested for electrical conductivity, insulation resistance (≥100MΩ), rotational durability and plug contact stability.
- Premium construction: High-conductivity copper conductors, flame-retardant ABS housing, reinforced torsion springs and corrosion-resistant plug pins.
- Service life: Equivalent to OEM standards (≥1 million rotational cycles), adapted to 2017 Pacifica’s driving conditions.
- Operating environment: Temperature range from -40°C to +85°C, resistant to vibration, dust and moisture.
- Certification: Complies with ISO/TS 16949 automotive parts quality standards.
🔍 Technical Specifications
- Interface: Three-plug design, 100% matching 2017 Chrysler Pacifica’s original steering column module for plug-and-play installation.
- Rotation angle: Supports maximum ±3 full steering wheel rotations, meeting the handling requirements of Chrysler Pacifica.
- Plug material: Gold-plated contact pins for anti-oxidation and long-term stable signal transmission.
- Weight: Approximately 0.38kg, lightweight design that does not affect steering feel.
Wholesale Supply Information
- MOQ: 10 units, mixed orders with other Royuan clock spring models are supported.
- Stock availability: 5,000+ units in stock for immediate shipment.
- Packaging: Neutral or Royuan-branded packaging, shockproof and moisture-proof design suitable for international logistics.
- Documentation provided: Technical Data Sheet (TDS), Certificate of Origin, compatibility verification table.
- Contact for Quotation: Official Website - www.royuan.ltd | WhatsApp - 86-18766792702
Installation & Precautions
- Safety first: Disconnect the negative battery terminal and wait 15 minutes before replacement to power off the airbag system completely.
- Plug verification: Double-check that the original clock spring has three plugs to avoid mismatched installation.
- Professional installation: Recommended to be installed by certified technicians familiar with Chrysler Pacifica’s steering system.
- Installation location: Located on the steering column under the steering wheel, accessible after removing the steering wheel assembly.
Common Faults & Solutions
| Fault Symptom | Possible Cause | Solution |
|---|---|---|
| Airbag warning light on | Internal circuit breakage or loose plug connection | Replace with 10120322 and secure plug pins |
| Horn not working | Poor plug contact or internal wire damage | Inspect plug connection and replace clock spring if needed |
| Steering controls unresponsive | Plug pin oxidation or cable wear | Clean plug pins or install new 10120322 clock spring |
Summary
The 10120322 three-plug clock spring is the OEM-equivalent replacement part exclusively for 2017 Chrysler Pacifica. Its optimized three-plug design perfectly matches the vehicle’s electrical system, ensuring stable operation of airbag, horn and steering control functions. Royuan offers a 12-month warranty, sufficient stock and flexible MOQ, making it your trusted choice for auto parts supply chain.
