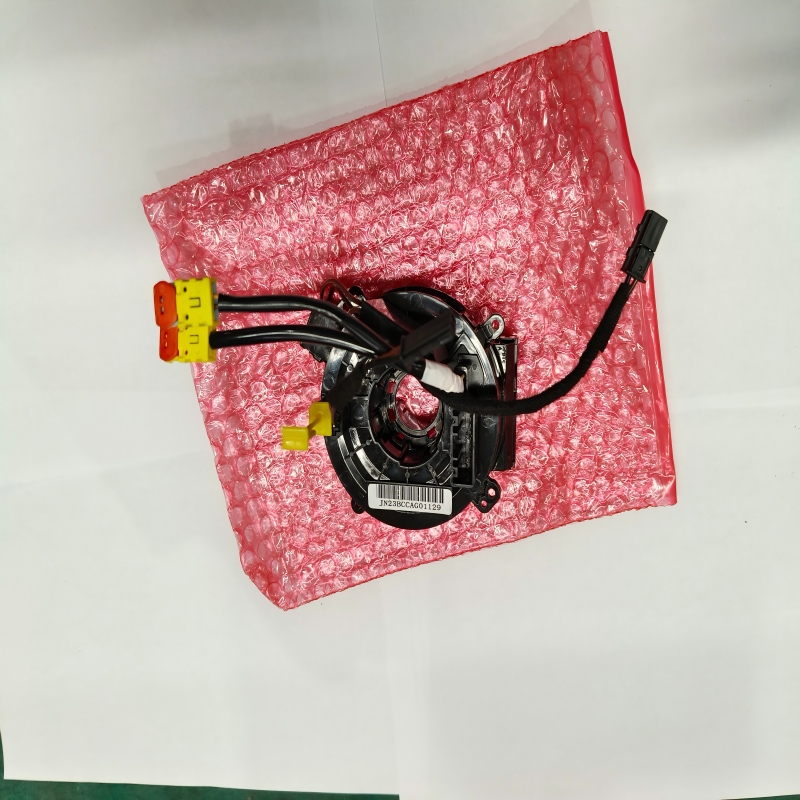

22866484 CLOCK SPRING fit for CADILLAC CTS 2013-2019/XTS 2014-2019 (10 PIN)
Royuan OEM-grade wholesale Clock Spring (Part Number: 22866484) features a 10-pin design, fitting Cadillac CTS (2013-2019) and XTS (2014-2019) models. It ensures stable electrical connections for airbags, horns and steering wheel controls. Batch-tested, ISO/TS 16949 certified, 12-month warranty, ideal for auto parts distributors and repair shops.
Precise Compatibility
| Brand | Model | Year Range | Specifications | Notes |
|---|---|---|---|---|
| CADILLAC | CTS | 2013-2019 | 10-pin; 22866484 | Exact fit for all trims of this generation |
| CADILLAC | XTS | 2014-2019 | 10-pin; 22866484 | Matches original steering system configuration |
⚠️ Important Note: This part is NOT compatible with non-10-pin steering system variants, Cadillac CTS/XTS outside the specified years, or other Cadillac vehicle series. Verify vehicle VIN, production year and pin count before purchase.
Product Features & Technical Specifications
🔧 Core Functions
- Airbag circuit protection: Maintains continuous signal transmission for airbag deployment during steering wheel rotation, a critical safety component for luxury sedans
- 10-pin multi-function support: Enables stable operation of horn, steering wheel-mounted audio, cruise control, phone and driving assistance functions, matching the advanced electrical architecture of Cadillac models
- Diagnostic compatibility: Works seamlessly with the vehicle's ECU for trouble code reading and steering system health checks
✅ Quality Assurance
- 100% batch inspection: Tested for electrical conductivity, insulation resistance (≥100MΩ), rotational durability and 10-pin contact stability under vehicle vibration
- Premium construction: High-conductivity copper conductors, flame-retardant ABS housing, reinforced torsion springs adapted to luxury vehicle driving conditions
- Service life: Equivalent to OEM standards (≥1 million rotational cycles), suitable for frequent steering operations in luxury sedans
- Operating environment: Temperature range from -40°C to +85°C, resistant to dust, moisture and engine compartment heat
- Certification: Complies with ISO/TS 16949 automotive parts quality standards
🔍 Technical Specifications
- Interface: 10-pin design, perfectly matches the original steering column control module of specified Cadillac CTS/XTS models
- Rotation angle: Supports maximum ±3 full steering wheel rotations, meeting the handling requirements of luxury sedans
- Pin material: Gold-plated contact pins for anti-oxidation and long-term stable signal transmission
- Weight: Approximately 0.35kg, lightweight design that does not affect steering feel
Wholesale Supply Information
- MOQ: 10 units, mixed orders with other Royuan clock spring models are supported
- Stock availability: 4,500+ units in stock for immediate shipment
- Packaging: Neutral or Royuan-branded packaging, shockproof and moisture-proof design suitable for international logistics
- Documentation provided: Technical Data Sheet (TDS), Certificate of Origin, 10-pin configuration verification table
- Contact for Quotation: Official Website - www.royuan.ltd | WhatsApp - 86-18766792702
Installation & Precautions
- Safety first: Disconnect the negative battery terminal and wait 15 minutes before replacement to fully power off the airbag system
- Pin count verification: Confirm the original clock spring has 10 pins to avoid mismatched installation
- Professional installation: Recommended to be installed by technicians familiar with Cadillac luxury sedan steering systems
- Installation location: Located on the steering column under the steering wheel, accessible after removing the steering wheel assembly and trim covers
Common Faults & Solutions
| Fault Symptom | Possible Cause | Solution |
|---|---|---|
| Airbag warning light on | Internal circuit breakage or loose 10-pin connection | Replace with 22866484 and secure all pins |
| Horn not working | Poor contact in 10-pin interface or wire damage | Inspect pin connection and replace clock spring if needed |
| Steering wheel controls unresponsive | 10-pin signal interruption or cable wear | Install new 22866484 clock spring and test functions |
Summary
The 22866484 Clock Spring is the OEM-equivalent replacement part with 10-pin design, exclusively for 2013-2019 Cadillac CTS and 2014-2019 Cadillac XTS. Tailored to the electrical architecture of luxury sedans, it ensures stable operation of airbag, horn and multi-function steering control systems, meeting strict safety and durability requirements. Royuan offers a 12-month warranty, sufficient stock and flexible MOQ, making it your trusted choice for Cadillac auto parts supply.
