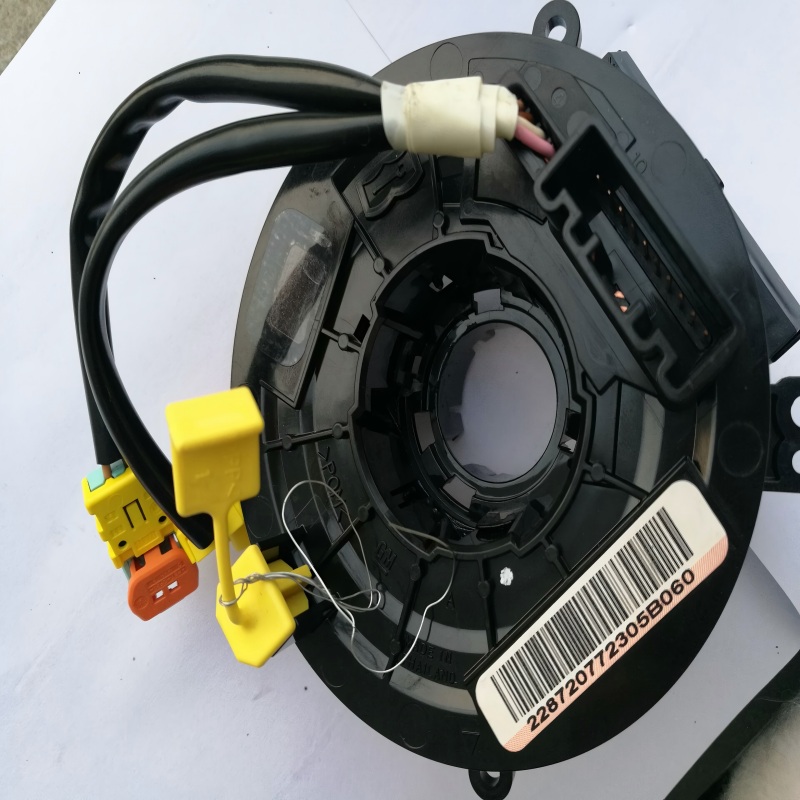

23166809 CLOCK SPRING fit for CADILLAC GM ATS 2.0L 2013-2019

Royuan OEM-grade wholesale Clock Spring (Part Number:23166809) fits 2013-2019 Cadillac GM ATS 2.0L models. It ensures stable electrical connections for airbags, horns and steering wheel multi-controls. Batch-tested, ISO/TS 16949 certified, 12-month warranty, with premium conductivity and anti-vibration performance, ideal for auto parts distributors and luxury car repair shops.

Precise Compatibility

Brand Model Year Range Specifications Notes
CADILLAC GM ATS 2013-2019 23166809；2.0L Exact fit for all trims of 2.0L version, plug-and-play

⚠️ Important Note: This part is NOT compatible with Cadillac ATS non-2.0L engine variants, models outside 2013-2019, or other Cadillac series vehicles. Verify vehicle VIN, engine displacement and production year before purchase.

Product Features & Technical Specifications

🔧 Core Functions

  • Airbag circuit protection: Maintains continuous signal transmission for airbag deployment during steering wheel rotation, a critical safety component for Cadillac luxury sedans.
  • Multi-function support: Enables stable operation of horn, steering wheel-mounted audio, cruise control and driving mode adjustment functions, perfectly adapted to ATS 2.0L electrical architecture.
  • Diagnostic compatibility: Works seamlessly with the vehicle’s ECU for trouble code reading and steering system health checks.

✅ Quality Assurance

  • 100% batch inspection: Tested for electrical conductivity, insulation resistance (≥100MΩ), rotational durability and vibration resistance adapted to 2.0L turbo engine working conditions.
  • Premium construction: High-conductivity oxygen-free copper conductors, flame-retardant high-strength ABS housing, reinforced torsion springs to withstand high-performance driving vibration.
  • Service life: Equivalent to OEM standards (≥1 million rotational cycles), suitable for frequent steering operations of luxury sports sedans.
  • Operating environment: Temperature range from -40°C to +85°C, resistant to dust, moisture and engine compartment high temperature.
  • Certification: Complies with ISO/TS 16949 automotive parts quality standards.

🔍 Technical Specifications

  • Interface: Perfectly matches the original steering column control module of 2013-2019 Cadillac ATS 2.0L for plug-and-play installation.
  • Rotation angle: Supports maximum ±3 full steering wheel rotations, meeting the high handling requirements of ATS models.
  • Pin material: Gold-plated contact pins for anti-oxidation and long-term stable signal transmission.
  • Weight: Approximately 0.32kg, lightweight design that does not affect steering responsiveness of luxury sedans.

Wholesale Supply Information

  • MOQ: 10 units, mixed orders with other Royuan clock spring models are supported.
  • Stock availability: 3,800+ units in stock for immediate shipment.
  • Packaging: Neutral or Royuan-branded packaging, shockproof and moisture-proof design suitable for international logistics of luxury car parts.
  • Documentation provided: Technical Data Sheet (TDS), Certificate of Origin, compatibility verification table.
  • Contact for Quotation: Official Website - www.royuan.ltd | WhatsApp - 86-18766792702

Installation & Precautions

  1. Safety first: Disconnect the negative battery terminal and wait 15 minutes before replacement to fully power off the airbag system.
  2. Configuration verification: Confirm the vehicle is Cadillac ATS 2.0L and produced in 2013-2019 to avoid mismatched installation.
  3. Professional installation: Recommended to be installed by technicians familiar with Cadillac luxury sedan steering systems.
  4. Installation location: Located on the steering column under the steering wheel, accessible after removing the steering wheel assembly and trim covers.

Common Faults & Solutions

Fault Symptom Possible Cause Solution
Airbag warning light on Internal circuit breakage or loose connector Replace with 23166809 and secure all connections
Horn not working Poor contact in interface or wire damage caused by turbo engine vibration Inspect connector tightness and replace clock spring if needed
Steering wheel controls unresponsive Signal interruption or cable wear Install new 23166809 clock spring and test all functions

Summary

The 23166809 Clock Spring is the OEM-equivalent replacement part, exclusively for 2013-2019 Cadillac GM ATS 2.0L models. Tailored to the electrical architecture of Cadillac luxury sports sedans, it ensures stable operation of airbag, horn and multi-function steering control systems, meeting the strict safety and durability requirements of high-performance driving. Royuan offers a 12-month warranty, sufficient stock and flexible MOQ, making it your trusted choice for Cadillac auto parts supply.
