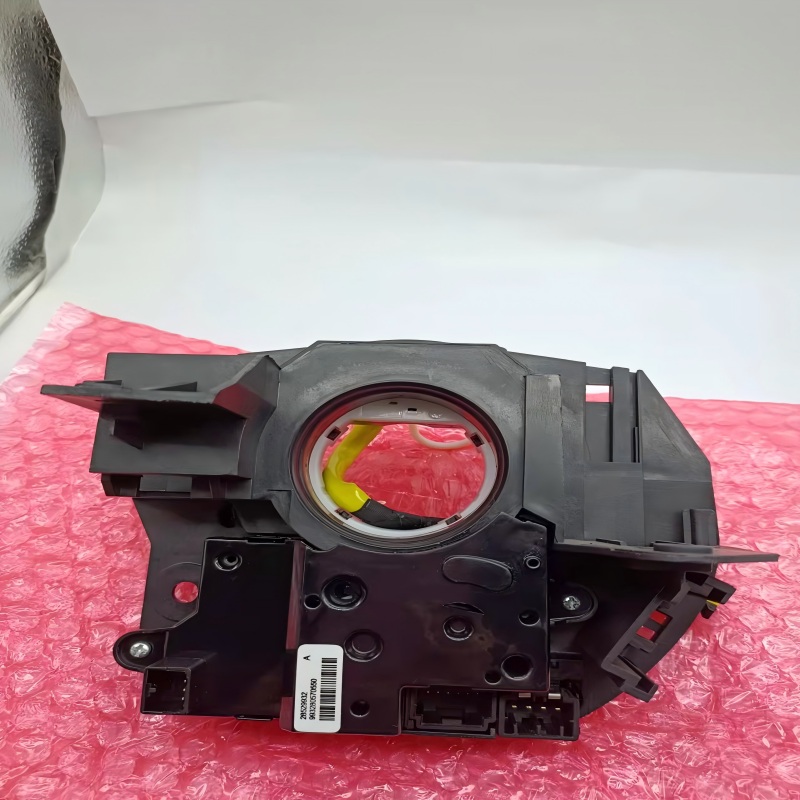

56046241AG CLOCK SPRING with Sensor fit for Dodge Journey 2011-2018, Chrysler Voyager, Dodge Grand Caravan 2012 3.6L V6
Royuan OEM-grade Clock Spring (OE:56046241AG) with built-in Steering Angle Sensor fits Dodge Journey (2011-2018), Chrysler Voyager, and Dodge Grand Caravan 2012 3.6L V6. Ensures stable signal transmission for airbags, horns, and steering wheel controls while providing precise steering angle data to vehicle stability systems. Batch-tested, ISO/TS 16949 certified, 12-month warranty. Ideal for auto parts distributors and Dodge/Chrysler repair shops.
Precise Compatibility
| Brand | Model | Year Range | Engine | Notes |
|---|---|---|---|---|
| Dodge | Journey | 2011-2018 | All trims | Perfect match for steering column electrical system |
| Chrysler | Voyager | Full range | All trims | Direct replacement for original clock spring |
| Dodge | Grand Caravan | 2012 | 3.6L V6 | Exact fit for 3.6L Pentastar engine models |
⚠️ Important Note: This part is NOT compatible with vehicles outside the listed years/models, other Dodge/Chrysler series, or modified steering systems. Always verify vehicle VIN and production date before installation.
Product Features & Technical Specifications
🔧 Core Functions
- Dual-purpose design: Airbag clock spring + Steering Angle Sensor (SAS) in one integrated unit
- Maintains continuous electrical connections between steering wheel and vehicle body during rotation
- Transmits critical signals for:
- Driver airbag system (safety-critical)
- Horn functionality
- Steering wheel audio/cruise/phone controls
- Electronic Stability Program (ESP)/Traction Control
- Provides precise steering angle data to vehicle ECU for stability control systems
✅ Quality Assurance
- 100% batch inspection for insulation resistance (≥100MΩ) and signal integrity
- High-conductivity copper conductors with flame-retardant ABS housing
- Reinforced construction for vibration resistance in SUV/MPV applications
- ≥1 million rotation service life (exceeds OEM standards)
- Temperature resistant (-40°C to +85°C) for all weather conditions
- ISO/TS 16949 certified manufacturing process
- 12-month warranty against defects
🔍 Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 56046241AG (with sensor) |
| Interface | OEM-standard multi-pin connector (plug-and-play) |
| Rotation Range | ±3 full rotations (meets all listed vehicle requirements) |
| Sensor Type | Hall-effect Steering Angle Sensor |
| Sensor Precision | ±1% full scale (industry-leading accuracy) |
| Weight | 0.41kg (heavier than standard clock springs due to sensor) |
| Compatibility Code | Direct replacement for 68067552AD |
Wholesale Supply Information
- MOQ: 10 units (mixed orders with other clock spring models welcome)
- Stock: 2,900+ units available for immediate shipment
- Packaging: Shockproof neutral packaging or Royuan-branded packaging
- Lead Time: 7-15 days for bulk orders
- Contact: www.royuan.ltd or WhatsApp: +86-18766792702
Installation & Precautions
-
Safety First:
- Disconnect vehicle battery and wait 15 minutes to disable airbag system
- Never attempt installation without proper training (airbag deployment hazard)
-
Installation Steps:
- Ensure wheels are straight and steering wheel centered
- Remove steering wheel (following vehicle-specific procedure)
- Unbolt old clock spring from steering column
- Align new clock spring to "zero position" (usually marked with arrows)
- Secure in place and reconnect electrical harnesses
- Reinstall steering wheel, ensuring proper alignment
- Reconnect battery and check for error codes
-
Post-installation:
- Perform test drive to verify all functions (horn, controls, no airbag warning)
- Use diagnostic tool to clear any residual error codes
- Verify steering angle sensor calibration (may require professional scan tool)
Common Faults & Solutions
| Fault Symptom | Possible Cause | Solution |
|---|---|---|
| Airbag warning light on | Clock spring circuit breakage | Replace with 56046241AG |
| Steering controls unresponsive | Loose connector or internal wire break | Check connections; if damaged, replace clock spring |
| ESP/Traction control warning | Steering angle sensor malfunction | Replace with 56046241AG |
| Horn not working | Contact wear in clock spring | Install new 56046241AG |
Summary
56046241AG is the OEM-equivalent clock spring with integrated Steering Angle Sensor for Dodge Journey (2011-2018), Chrysler Voyager, and Dodge Grand Caravan 2012 3.6L V6. This critical safety component ensures reliable operation of airbags, steering controls, and stability systems while providing precise steering angle data for advanced driver assistance features.
With 2,900+ units in stock and 12-month warranty, Royuan is your trusted source for this specialized part. Contact us today for competitive pricing and fast shipping.
