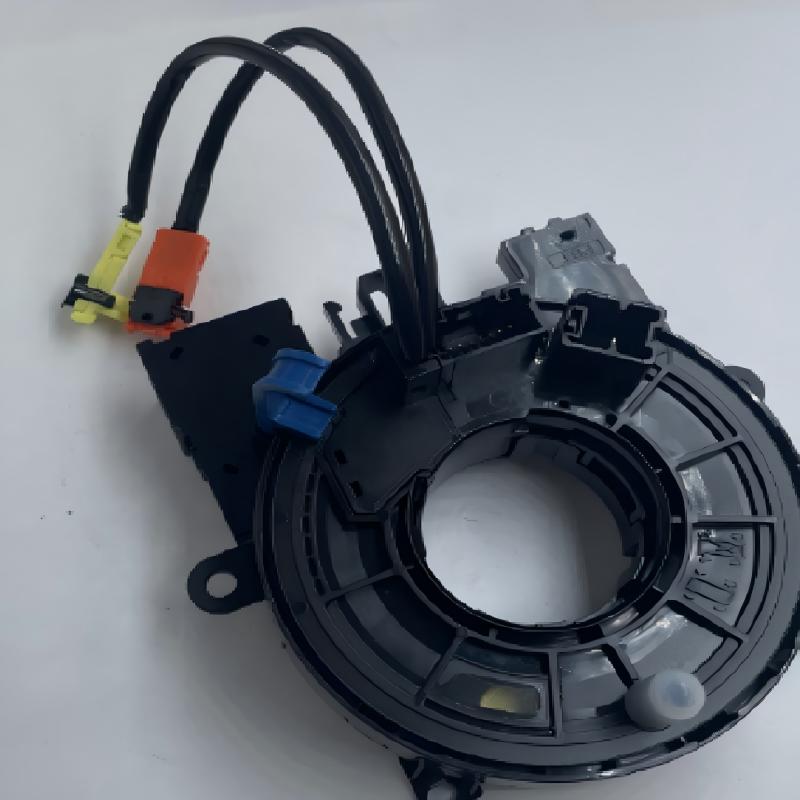

Clock Spring 25554-6CJ2A / 25554-6CC2A for Nissan Altima 2017-2020 – 16+2 Pin – OEM 25554-6CJ2A, 25554-6CC2A

Direct replacement 16+2 pin clock spring for Nissan Altima (2017-2020). OEM numbers: 25554-6CJ2A, 25554-6CC2A. Restores electrical connection for airbag, horn, and steering wheel controls. Features 16+2 pin configuration (18 pins total) – verify your original part matches this pin count. Made with high-strength copper ribbon and flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip for easy installation. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 25554-6CJ2A / 25554-6CC2A for Nissan Altima 2017-2020 (16+2 Pin)

Direct Fit for Nissan Altima with 16+2 Pin Connector
This clock spring is engineered specifically for Nissan Altima (2017–2020) that use a 16+2 pin connector configuration. It directly replaces OEM part numbers 25554-6CJ2A and 25554-6CC2A, guaranteeing a perfect fit and reliable performance when properly matched. The 16+2 designation indicates a total of 18 pins, likely arranged as two separate connectors or a combined plug with 16+2 layout.

Important: Verify Pin Count
This clock spring features 16+2 pins (18 total). Before ordering, please confirm that your original clock spring has the same pin configuration and connector shape. Some Altima models may use different pin counts (e.g., 16-pin, 20-pin) depending on trim level and options (e.g., ProPILOT Assist, heated steering wheel, paddle shifters). If unsure, contact us with your VIN for verification.

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It ensures continuous electrical connection as the wheel turns, enabling:

  • Proper airbag deployment in a collision
  • Reliable horn operation
  • Functioning of steering wheel audio, phone, and cruise control buttons

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Replacing it with our high-quality unit restores full functionality and safety.

Quality You Can Trust

  • High-Purity Copper Ribbon: Ensures stable, interference-free signal transmission even after thousands of turns.
  • Flame-Retardant Housing: Durable engineering plastic that meets stringent automotive safety standards.
  • Rigorous Testing: Passed 300,000-cycle endurance test; operates flawlessly from -40°C to +85°C.
  • Centering Clip Included: Holds the spring in correct alignment during installation – simply remove after mounting.

Specifications

Specification Details
Compatible Vehicles Nissan Altima (2017–2020) with 16+2 pin connector
OEM Part Numbers 25554-6CJ2A, 25554-6CC2A
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Connector Type 16+2 pin (18 pins total) – Please verify with your original part
Installation Location Inside the steering wheel
Function Maintains electrical connection for airbag, horn, and multifunction steering wheel controls
Material High-strength flame-retardant engineering plastic + High-purity copper ribbon
Wire Configuration 16+2 pins – verify pin layout from original part
Rotation Angle ±5 turns (sufficient for all steering requirements)
Operating Temperature -40°C to +85°C
Durability Test Passed 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 12 months

Package Includes

  • 1 x Clock Spring Assembly (with centering clip, 16+2 pin connector)
  • 1 x Installation Guide (available upon request)

Frequently Asked Questions

Q: Which vehicles is this clock spring compatible with?
A: It is designed for Nissan Altima (2017–2020) with a 16+2 pin connector. Please verify your specific model year and trim.

Q: What OEM numbers does this product replace?
A: It directly replaces OEM part numbers 25554-6CJ2A and 25554-6CC2A. These may be superseded numbers or variations for different trim levels. Always verify your old part number before ordering.

Q: How do I know if I need the 16+2 pin version?
A: Check your original clock spring's connector. If it has a total of 18 pins (count the terminals), and likely arranged as 16+2 (possibly two separate connectors), this is the correct version. If it has a different pin count, please contact us with your VIN for assistance.

Q: What are the symptoms of a bad clock spring?
A: Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Q: Can I install it myself?
A: Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Q: Does it work in extreme temperatures?
A: Yes, it is tested for reliable operation from -40°C to +85°C.

Q: Is there a warranty?
A: Yes, we offer a 1-year warranty against manufacturing defects. Contact our support team if you encounter any issues.

Order with Confidence

  • CE / RoHS / ISO9001 certified
  • 1-year warranty
  • 24/7 customer support
