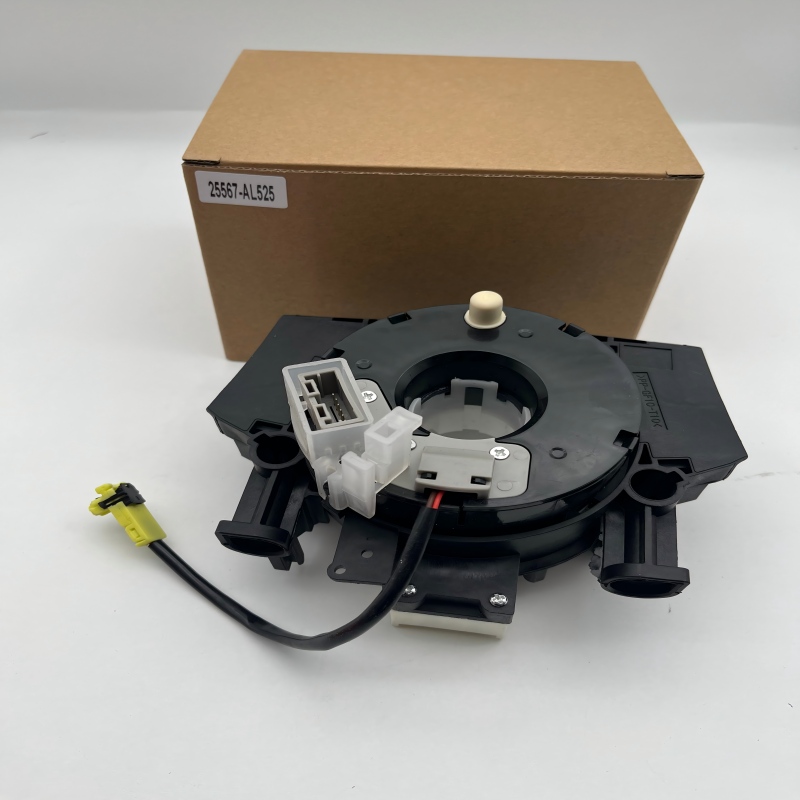

Clock Spring 25567-AL525 for Left Hand Drive Nissan Pathfinder R51 2005-2010 / Navara D40 2.5L 3.0L – OEM 25567-AL525
Product Description – Clock Spring 25567-AL525 for LHD Nissan Pathfinder R51 / Navara D40
Direct Fit for Left Hand Drive Nissan 4x4 Models
This clock spring is engineered specifically for left hand drive Nissan Pathfinder R51 (2005–2010) and Nissan Navara D40 (2005–2015) vehicles, including models equipped with 2.5L and 3.0L diesel engines. It directly replaces OEM part number 25567-AL525 (also compatible with 25567-AL500), guaranteeing a perfect fit and reliable performance for LHD configurations.
Important: LHD Vehicle Compatibility
This clock spring is specifically designed for left hand drive (LHD) Nissan Pathfinder R51 and Navara D40 models. If your vehicle is right hand drive (RHD), please contact us for the correct part number.
Vehicle Compatibility Details
Nissan Pathfinder R51 (2005–2010):
- All LHD R51 Pathfinder models with factory steering wheel controls
- Compatible with both 2.5L diesel and 4.0L petrol variants
Nissan Navara D40 (2005–2015):
- 2.5L diesel (YD25DDTi engine): All LHD variants including 2.5 D, 2.5 dCi (98kW, 106kW, 120kW, 126kW, 140kW outputs)
- 3.0L diesel (V9X engine): 3.0 dCi 4WD models with 170kW output (2010–2015)
- Compatible with Platform/Chassis and Ute body styles
- Fits 2WD and 4WD configurations
Why Your Clock Spring Matters
The clock spring (also called spiral cable or contact reel) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:
- Airbag deployment: Ensures the driver's airbag receives power and signals at all steering angles
- Horn operation: Maintains reliable horn function
- Steering wheel controls: Audio volume/track, cruise control, and phone buttons
- Vehicle stability systems: Supports steering angle sensor data for ESP/ABS systems
A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Since it's responsible for two safety devices (airbag and horn), prompt replacement is highly recommended.
Quality You Can Trust
- High-Purity Copper Ribbon: Ensures stable, interference-free signal transmission even after thousands of turns
- Flame-Retardant Housing: Durable engineering plastic meeting stringent automotive safety standards
- Rigorous Testing: Passed 300,000-cycle endurance test; operates flawlessly from -40°C to +85°C
- Centering Clip Included: Holds the spring in correct alignment during installation – simply remove after mounting
- Extended Warranty: 2-year warranty against manufacturing defects
Specifications
| Specification | Details |
|---|---|
| Compatible Vehicles | Nissan Pathfinder R51 (2005–2010) LHD / Nissan Navara D40 (2005–2015) LHD with 2.5L & 3.0L diesel engines |
| OEM Part Numbers | 25567-AL525, 25567AL525, 25567-AL500, 25567AL500 |
| Product Name | Clock Spring / Spiral Cable / Airbag Rotor / Contact Reel |
| Steering Configuration | Left Hand Drive (LHD) – Verify your vehicle's configuration |
| Installation Location | Inside the steering wheel, behind the airbag module |
| Function | Maintains electrical connection for airbag, horn, cruise control, and multifunction steering wheel controls |
| Material | High-strength flame-retardant engineering plastic + High-purity copper ribbon |
| Rotation Angle | ±2.5 turns from center (sufficient for all steering requirements) |
| Operating Temperature | -40°C to +85°C |
| Durability Test | Passed 300,000-cycle flex test |
| Certifications | CE, RoHS, ISO9001 |
| Warranty | 2 years |
Package Includes
- 1 x Clock Spring Assembly (with centering clip)
- 1 x Installation Guide (available upon request)
Frequently Asked Questions
Q: Which vehicles is this clock spring compatible with?
A: This clock spring is designed for left hand drive (LHD) Nissan Pathfinder R51 (2005–2010) and Nissan Navara D40 (2005–2015) models, including 2.5L and 3.0L diesel variants. For exact fitment, please verify your vehicle's VIN.
Q: What OEM numbers does this product replace?
A: It directly replaces OEM part numbers 25567-AL525 and 25567-AL500. Always verify your old part number before ordering.
Q: Is this for left hand drive or right hand drive vehicles?
A: This specific part is for left hand drive (LHD) vehicles only. If your vehicle is right hand drive (RHD), please contact us for the correct part number.
Q: Will this fit my Navara D40 with 3.0L V9X engine?
A: Yes, compatibility data confirms fitment for LHD Navara D40 3.0 dCi 4WD models with V9X engine (170kW), produced from 2010–2015.
Q: What are the symptoms of a bad clock spring?
A: Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons (audio/cruise), or a clicking noise when turning the wheel. In some cases, ABS or stability control warnings may appear.
Q: Can I install it myself?
A: Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.
Q: Does it work in extreme temperatures?
A: Yes, it is tested for reliable operation from -40°C to +85°C, making it suitable for all climates.
Q: What warranty do you offer?
A: This clock spring comes with a 2-year warranty against manufacturing defects. Contact our support team if you encounter any issues.
Q: How do I confirm compatibility before ordering?
A: For 100% compatibility confirmation, email your vehicle's 17-digit VIN number to our support team.
