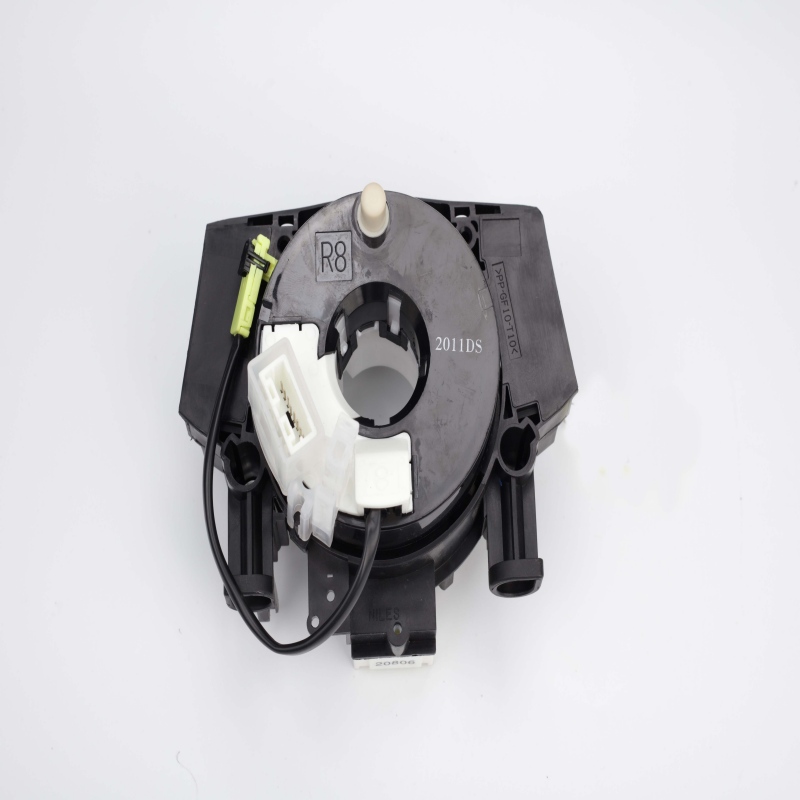

Clock Spring 25567-CF40B / 25560-EC49B for Right Hand Drive Nissan Navara D40 VSX R8 – OEM 25567-CF40B, 25560-EC49B
Product Description – Clock Spring 25567-CF40B / 25560-EC49B for RHD Nissan Navara D40 VSX R8
Direct Fit for Right Hand Drive Nissan Navara D40 VSX R8
This clock spring is engineered specifically for right hand drive Nissan Navara D40 (2005–2015) in VSX and R8 trim levels. It directly replaces OEM part numbers 25567-CF40B and 25560-EC49B, guaranteeing a perfect fit and reliable performance when properly matched.
Important: RHD Vehicle Compatibility
This clock spring is specifically designed for right hand drive (RHD) Nissan Navara D40 models. If your vehicle is left hand drive (LHD), please contact us for the correct part number.
Vehicle Compatibility Details
Nissan Navara D40 was produced from 2005 to 2015, with the VSX and R8 representing higher specification trims featuring additional steering wheel controls. These models typically include:
- Factory cruise control switches
- Audio control buttons (volume, track)
- Bluetooth phone controls (on later models)
- Optional steering wheel heating
The clock spring maintains electrical continuity for these functions while the wheel turns, in addition to critical safety connections for the airbag and horn.
Why Your Clock Spring Matters
The clock spring (also called spiral cable or contact reel) is a critical safety component located behind the steering wheel. It ensures continuous electrical connection as the wheel turns, enabling:
- Proper airbag deployment in a collision
- Reliable horn operation
- Functioning of steering wheel audio, phone, and cruise control buttons
- Support for steering angle sensor data (if equipped) used in stability control systems
A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Since it's responsible for two safety devices (airbag and horn), prompt replacement is highly recommended.
Quality You Can Trust
- High-Purity Copper Ribbon: Ensures stable, interference-free signal transmission even after thousands of turns.
- Flame-Retardant Housing: Durable engineering plastic that meets stringent automotive safety standards.
- Rigorous Testing: Passed 300,000-cycle endurance test; operates flawlessly from -40°C to +85°C.
- Centering Clip Included: Holds the spring in correct alignment during installation – simply remove after mounting.
- Extended Warranty: 1-year warranty against manufacturing defects.
Specifications
| Specification | Details |
|---|---|
| Compatible Vehicles | Nissan Navara D40 (2005–2015) – RHD models, VSX and R8 trims |
| OEM Part Numbers | 25567-CF40B, 25560-EC49B |
| Product Name | Clock Spring / Spiral Cable / Airbag Rotor / Contact Reel |
| Steering Configuration | Right Hand Drive (RHD) – Verify your vehicle's configuration |
| Installation Location | Inside the steering wheel, behind the airbag module |
| Function | Maintains electrical connection for airbag, horn, cruise control, and multifunction steering wheel controls |
| Material | High-strength flame-retardant engineering plastic + High-purity copper ribbon |
| Wire Configuration | Verify pin count and layout from original part |
| Rotation Angle | ±2.5 turns from center (sufficient for all steering requirements) |
| Operating Temperature | -40°C to +85°C |
| Durability Test | Passed 300,000-cycle flex test |
| Certifications | CE, RoHS, ISO9001 |
| Warranty | 1 year |
Package Includes
- 1 x Clock Spring Assembly (with centering clip)
- 1 x Installation Guide (available upon request)
Frequently Asked Questions
Q: Which vehicles is this clock spring compatible with?
A: This clock spring is designed for right hand drive (RHD) Nissan Navara D40 (2005–2015) in VSX and R8 trim levels. It supports vehicles equipped with factory steering wheel controls. For exact fitment, please verify your VIN.
Q: What OEM numbers does this product replace?
A: It directly replaces OEM part numbers 25567-CF40B and 25560-EC49B. These numbers may be superseded or interchanged depending on the vehicle's production year and equipment level. Always verify your old part number before ordering.
Q: Is this for right hand drive or left hand drive vehicles?
A: This specific part is for right hand drive (RHD) vehicles only . If your Navara D40 is left hand drive (LHD), please contact us for the correct part number.
Q: What are the symptoms of a bad clock spring?
A: Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons (audio/cruise), or a clicking noise when turning the wheel. In some cases, the steering angle sensor may fail, causing ABS or stability control warnings.
Q: Can I install it myself?
A: Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.
Q: Does it work in extreme temperatures?
A: Yes, it is tested for reliable operation from -40°C to +85°C, making it suitable for all climates.
Q: Is there a warranty?
A: Yes, we offer a 1-year warranty against manufacturing defects. Contact our support team if you encounter any issues.
Q: How do I confirm compatibility before ordering?
A: For 100% compatibility confirmation, email your vehicle's 17-digit VIN number to our support team. We will cross-reference and ensure you receive the correct part.
Order with Confidence
- CE / RoHS / ISO9001 certified – meets OEM specifications
- 1-year warranty
- 24/7 customer support
- Verified RHD compatibility for Navara D40 VSX/R8
