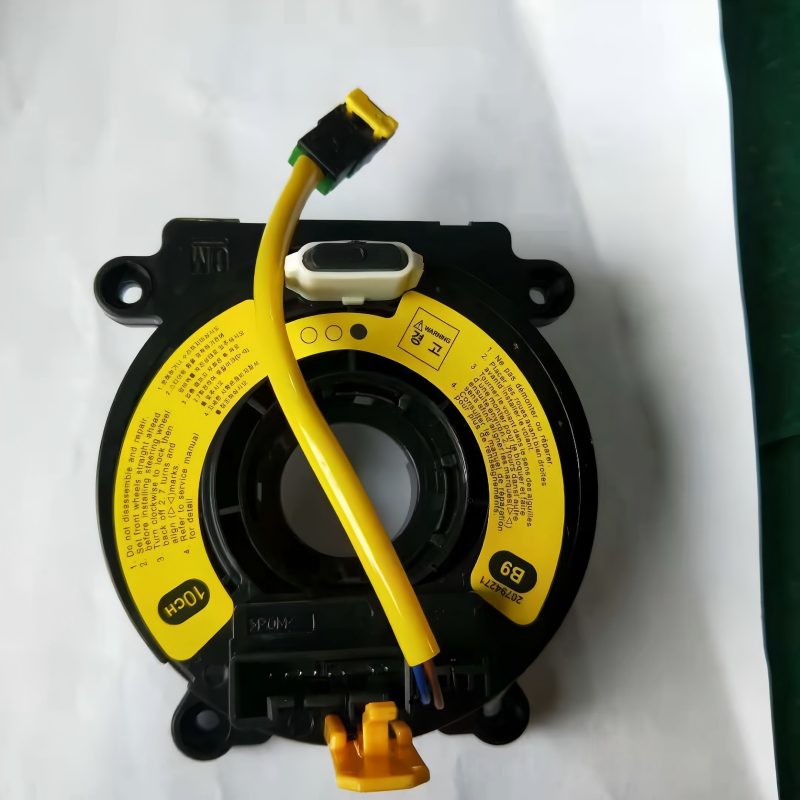

Clock Spring 96628699 / 96628697 for Chevrolet Captiva – 12 Pin – OEM 96628699, 96628697

Direct replacement 12-pin clock spring for Chevrolet Captiva (2006-2018). Compatible OEM numbers: 96628699, 96628697. Restores electrical connection for airbag, horn, and steering wheel controls. Features 12-pin configuration – verify your original part matches this pin count. Made with high-strength copper ribbon and flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 96628699 / 96628697 for Chevrolet Captiva (12 Pin)

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for Chevrolet Captiva models with a 12-pin connector. However, trim levels and steering wheel options (audio controls, cruise control) may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Chevrolet Captiva (2006–2018)
This clock spring is engineered for Chevrolet Captiva (first generation, C100 platform) produced approximately from 2006 to 2018 . It directly replaces OEM part numbers 96628699 and 96628697, guaranteeing a perfect fit and reliable performance when properly matched.

12-Pin Configuration
This clock spring features a 12-pin connector, commonly used in Captiva models with factory-installed steering wheel controls (audio, cruise). Before ordering, please verify that your original clock spring has 12 pins and the connector shape matches.

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio and cruise controls (if equipped)
  • ✅ Steering angle sensor data (on equipped models)

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Prompt replacement is highly recommended for safety.

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), it is highly advised to replace a faulty unit immediately .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Specifications

Specification Details
Compatible Vehicles Chevrolet Captiva (approx. 2006–2018) with 12-pin connector
OEM Part Numbers 96628699, 96628697
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Connector Type 12-pin – verify with original part
Material High-strength flame-retardant plastic + High-purity copper ribbon
Operating Temperature -40°C to +85°C
Durability Test 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 12 months

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
