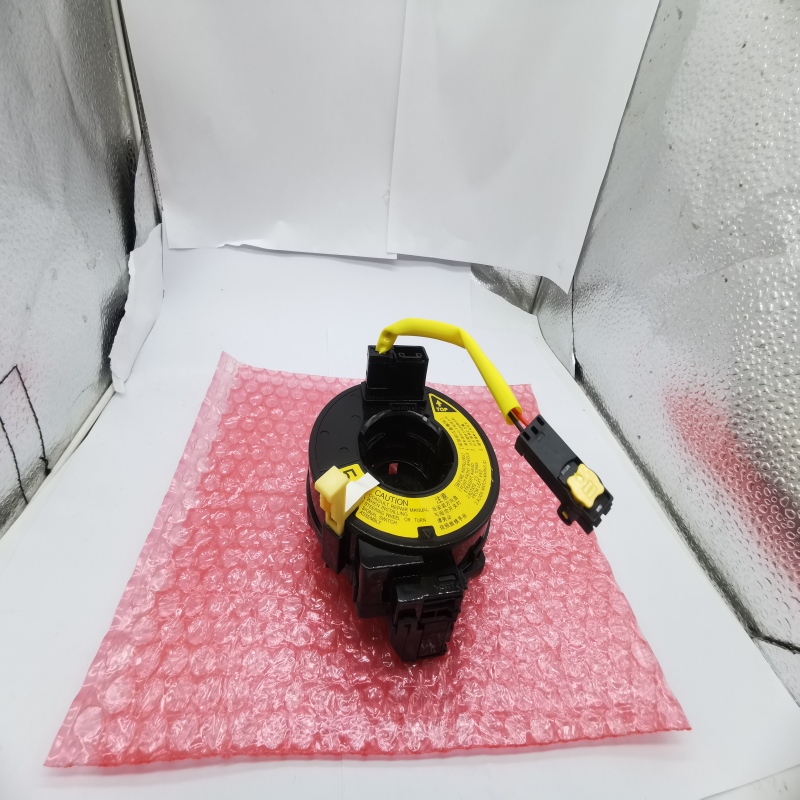

Clock Spring 37480-77J00 for Suzuki Grand Vitara / Swift / SX4 / Alto – 6 Pins – OEM 37480-77J00

Direct replacement 6-pin clock spring for Suzuki vehicles: Grand Vitara, Swift, SX4, and Alto . OEM number: 37480-77J00. Restores electrical connection for airbag safety system, horn, radio controls, and cruise control . Features 6-pin configuration – verify your original part matches this pin count. High-strength copper ribbon, flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. 2-year warranty . CE/ISO9001 certified.

Product Description – Clock Spring 37480-77J00 for Suzuki Grand Vitara / Swift / SX4 / Alto (6 Pin)

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for multiple Suzuki models with a 6-pin connector. However, trim levels and steering wheel options (audio controls, cruise control) may affect connector pin layout. Always visually compare with your original part. To confirm compatibility, email your vehicle's 17-digit VIN to our support team .

Direct Fit for Suzuki Models
This clock spring is engineered for the following Suzuki vehicles :

Model Years Notes
Suzuki Grand Vitara 2005–2014 Verify 6-pin configuration
Suzuki Swift 2005–2016 Confirmed fitment
Suzuki SX4 2006–2014 Verify compatibility
Suzuki Alto 2009–2014 Verify compatibility

Compatible OEM Numbers: 37480-77J00 (primary) .

6-Pin Configuration
This clock spring features a 6-pin connector, commonly used in Suzuki models with factory steering wheel controls . Before ordering, please verify that your original clock spring has 6 pins and the connector shape matches.

What is a Clock Spring?
The airbag clock spring is a coil that withdraws and extends inside its housing as the steering wheel turns. Its role is to maintain electrical coherence for all the components on the driver's airbag such as the airbag safety system, radio volume and station selections, horn and cruise controls .

Why Your Clock Spring Matters
The clock spring is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Radio volume and station selections
  • ✅ Cruise control functions (if equipped)

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive .

⚠️ IMPORTANT SAFETY NOTE

A clock spring can become faulty when wires become worn and break, causing a short or open circuit. This can cause the airbag warning light to come on. Horn, radio controls and cruise controls can also stop working .

Since the clock spring is responsible for two safety devices including the horn and airbag safety system, it is highly advised to replace a faulty clock spring with a new unit as soon as possible .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Extended Warranty: 2-year warranty against manufacturing defects
  • 🔹 60 Days Money Back Guarantee

Specifications

Specification Details
OEM Part Number 37480-77J00
Connector Type 6-pin – verify with original part
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Weight Approx. 0.35 kg
Dimensions Approx. 160 x 90 x 50 mm
Material High-strength flame-retardant plastic + High-purity copper ribbon
Placement on Vehicle Inside steering wheel / steering column
Operating Temperature -40°C to +85°C
Durability Test 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 2 years

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
