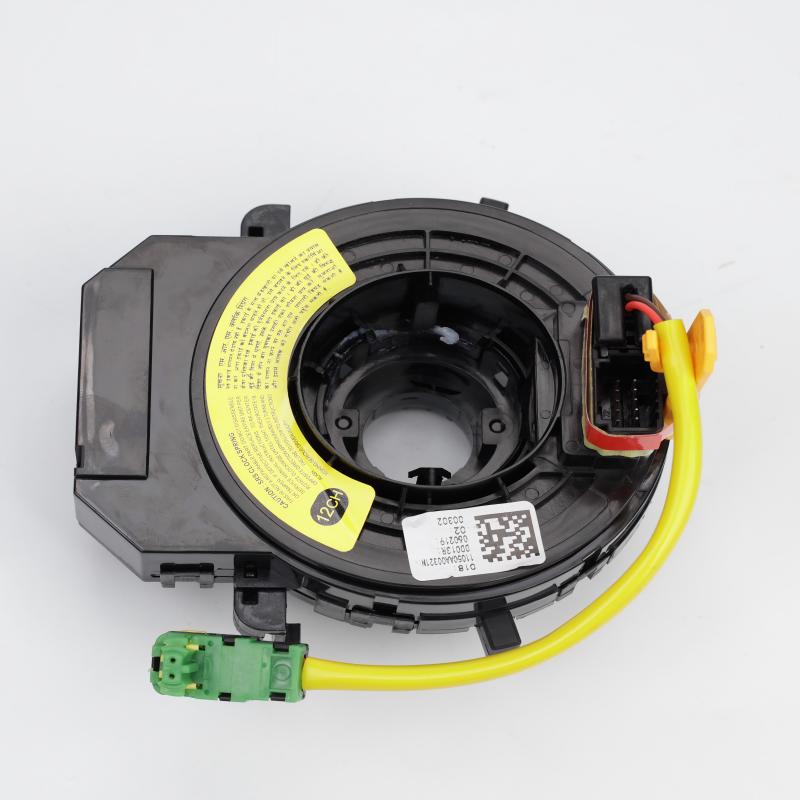

Clock Spring 1105GAA00320N for Mahindra Scorpio 12CH – 10 Pin – OEM 1105GAA00320N

Direct replacement 10-pin clock spring for Mahindra Scorpio (12CH variant). OEM number: 1105GAA00320N. Restores electrical connection for airbag, horn, and multifunction steering wheel controls (audio, cruise if equipped). Features 10-pin configuration – verify your original part matches this pin count. High-strength copper ribbon, flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 1105GAA00320N for Mahindra Scorpio 12CH (10 Pin)

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for Mahindra Scorpio models designated as "12CH" with a 10-pin connector. This configuration typically supports multifunction steering wheel controls (audio, cruise) in addition to airbag and horn. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Mahindra Scorpio (12CH Variant)
This clock spring is engineered for specific Mahindra Scorpio models, often referred to as the "12CH" variant (likely indicating a higher trim level or specific market version). It directly replaces OEM part number 1105GAA00320N, ensuring reliable performance when properly matched.

Model Approx. Years Notes
Mahindra Scorpio (12CH) 2015–2021 (approx.) Higher trim with multifunction steering wheel, 10-pin connector

Compatible OEM Numbers: 1105GAA00320N (primary).

10-Pin Configuration
This clock spring features a 10-pin connector, used on Mahindra Scorpio models equipped with factory-installed steering wheel controls (audio volume/track, phone, cruise control). It maintains electrical connections for these features while also ensuring safety functions (airbag, horn).

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio, phone, and cruise controls (if equipped)

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Prompt replacement is highly recommended for safety.

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), it is highly advised to replace a faulty unit immediately .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Specifications

Specification Details
Compatible Vehicles Mahindra Scorpio (12CH variant) with 10-pin multifunction steering wheel
OEM Part Number 1105GAA00320N
Connector Type 10-pin – verify with original part
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Material High-strength flame-retardant plastic + High-purity copper ribbon
Operating Temperature -40°C to +85°C
Durability Test 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 12 months

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
