Clock Spring for Toyota Hilux / Camry / Yaris / Vios / Fortuner / Innova / Corolla / Prius / Auris – OEM 84306-0K051, 84306-0K050

Direct replacement clock spring for Toyota: Hilux (2004-2014), Camry/Hybrid (2006-2017), Yaris (2006-2014), Vios (2007-2014), Fortuner (2005-2012), Innova (2004-2016), Corolla/Altis (2007-2014), Prius TRESSE, Auris (NDE150/ADE150). OEM: 84306-0K051, 84306-0K050, 84306-12110, 84306-02200, 84306-52090. Restores airbag, horn, steering wheel controls. High-strength copper ribbon, flame-retardant plastic. Passed 300,000-cycle test. Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 84306-0K051 / 84306-0K050 for Toyota Hilux / Camry / Yaris / Innova / Corolla

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for multiple Toyota models. However, trim levels, steering wheel options (audio controls, cruise control), and left/right hand drive configurations may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Wide Compatibility for Toyota Models
This clock spring is engineered to fit the following Toyota vehicles (based on OEM data and aftermarket cross-references):

Model Chassis / Generation Approx. Years
Toyota Hilux Vigo / AN10/20/KUN15 2004–2014
Toyota Camry / Camry Hybrid ACV40/GSV40 (Asia) 2006–2017
Toyota Yaris XP90 (Asia) 2006–2014
Toyota Vios NCP42 2007–2014
Toyota Fortuner AN50/60 2005–2012
Toyota Innova / Kijang Innova AN40 2004–2016
Toyota Corolla / Altis E140/E150 2007–2014
Toyota Prius TRESSE – Compatible
Toyota Auris NDE150 / ADE150 2007–2012

Compatible OEM Numbers: 84306-0K051, 84306-0K050, 84306-12110, 84306-02200, 84306-52090, 84306-0D070, 84306-0N040.

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio, phone, and cruise controls (if equipped)

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), prompt replacement is highly recommended.

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

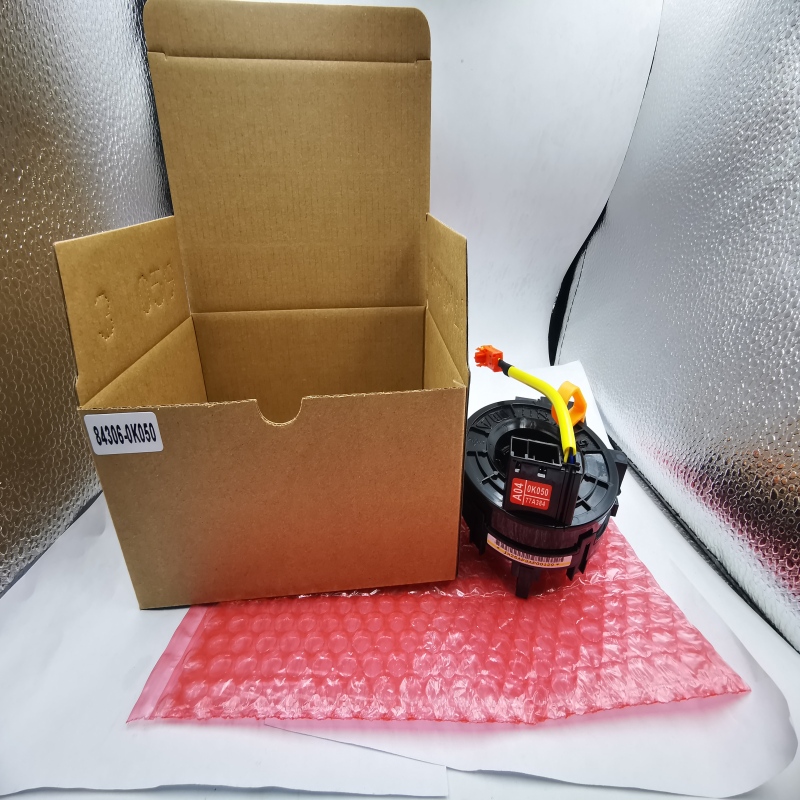

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
