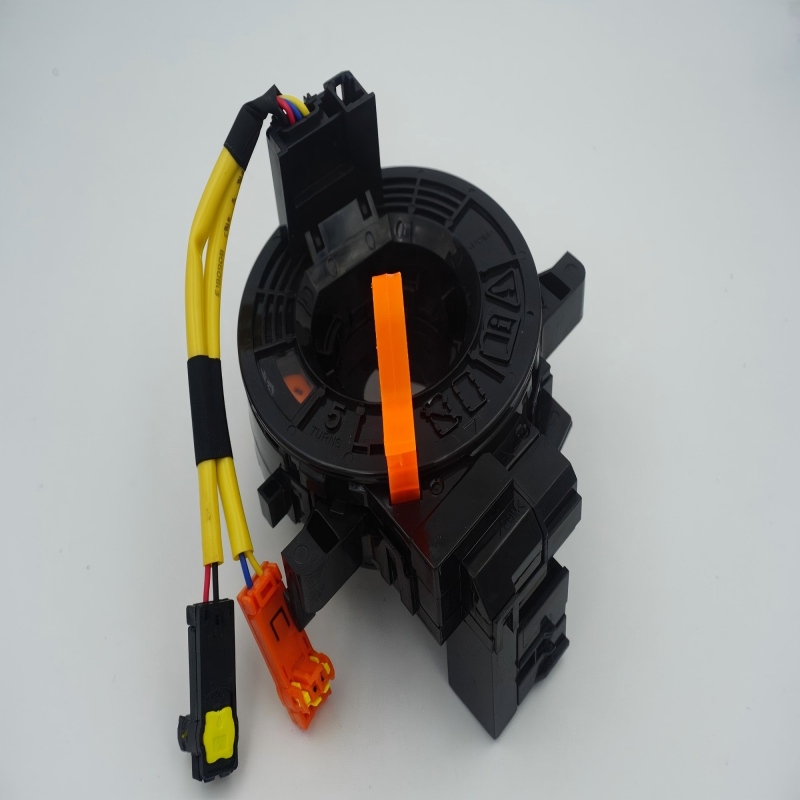

Clock Spring 84306-0P010 & 84306-22010 for Toyota Yaris 2006-2014 / RAV4 2006-2008 / Corolla 2008-2014 – OEM
Product Description – Clock Spring 84306-0P010 & 84306-22010 for Toyota Yaris / RAV4 / Corolla
🔍 IMPORTANT – PLEASE READ
This OEM clock spring is designed for specific Toyota models. This configuration is typically for vehicles without leather steering wheel and with basic steering wheel controls [citation:2]. Trim levels and steering wheel options may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.
Direct Fit for Toyota Models
This OEM replacement clock spring is engineered for the following Toyota vehicles based on manufacturer data [citation:2][citation:3]:
| Model | Chassis / Generation | Approx. Years |
|---|---|---|
| Toyota Yaris | XP90 | 2006–2013 |
| Toyota RAV4 | XA30 | 2006–2008 |
| Toyota Corolla | E140/E150 | 2009–2013 |
| Toyota Highlander | – | 2008–2010 |
| Toyota Matrix | – | 2009 |
| Toyota Tacoma | – | 2005–2011 |
Compatible OEM Numbers: 84306-0P010, 84306-22010 (interchangeable) [citation:4].
OEM Specifications
This genuine OEM-spec clock spring is designed for vehicles without leather steering wheel [citation:2]. It features:
- ✅ 3-pin connector configuration typical for base models
- ✅ High-grade copper ribbon with silver coating for superior conductivity [citation:4]
- ✅ Temperature-resistant wiring up to 105°C [citation:4]
- ✅ Factory-tested for 100% functionality [citation:4]
Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. It maintains continuous electrical connection as the wheel turns, enabling [citation:2][citation:3]:
- ✅ Proper airbag deployment
- ✅ Reliable horn operation
- ✅ Steering wheel audio and cruise controls (if equipped)
⚠️ IMPORTANT SAFETY NOTE
A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), prompt replacement is highly recommended [citation:4].
Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly.
Quality You Can Trust
- 🔹 High-Purity Copper Ribbon: 0.21mm thickness with silver coating for superior conductivity [citation:4]
- 🔹 Flame-Retardant Housing: Tightly sealed construction prevents moisture ingress and rust [citation:4]
- 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
- 🔹 Centering Clip Included: Do NOT remove until fully installed
- 🔹 Warranty: 12 months against manufacturing defects [citation:2]
Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
