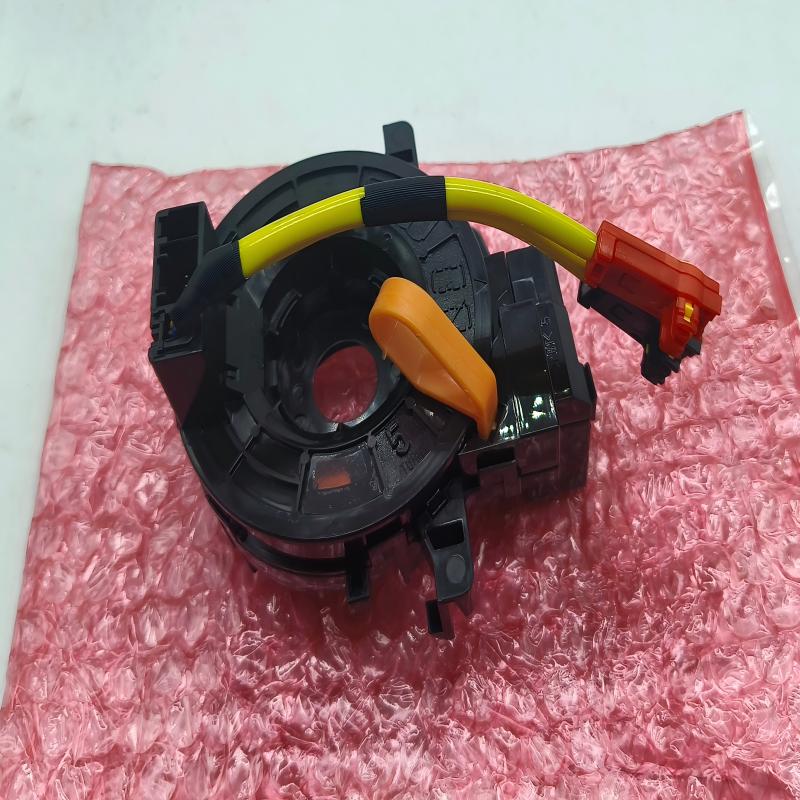

Clock Spring 84306-06140 & 84306-48030 for Toyota RAV4 / Camry / Corolla / Highlander / Tacoma / Prado / Lexus / ISUZU D-MAX – OEM

Direct replacement OEM clock spring for multiple Toyota/Lexus models: RAV4 (2006-2012), Camry (2007-2011), Corolla (2009-2012), Highlander (2008-2012), Matrix (2009-2013), Tacoma (2005-2015), Prado GRJ150, Lexus ES/GS/IS/LS/RX (2006-2010), Scion xB/xD (2008-2011), Pontiac Vibe (2009-2010), ISUZU D-MAX (2012+). OEM: 84306-06140, 84306-48030. 5-connector, 20-terminal design. High-strength copper ribbon, flame-retardant plastic. 300,000-cycle test. Includes centering clip. CE/ISO9001 certified.

Product Description – Clock Spring 84306-06140 & 84306-48030 for Toyota / Lexus / ISUZU D-MAX

🔍 IMPORTANT – PLEASE READ

This OEM clock spring fits a wide range of Toyota/Lexus models and ISUZU D-MAX. However, trim levels, steering wheel options (audio controls, cruise control), and production years may affect connector pin layout. Always visually compare with your original part. For ISUZU D-MAX, compatibility is indicated but please verify with original part as cross-brand fitment may vary. For 100% confirmation, contact us with your VIN.

Wide Compatibility Across Toyota & Lexus Models
This OEM replacement clock spring is engineered for the following vehicles based on manufacturer data and aftermarket cross-references :

Make Model Years
Toyota RAV4 2006–2012
Camry 2007–2011
Corolla 2009–2013
Highlander 2008–2012
Matrix 2009–2013
Tacoma 2005–2015
Tundra 2006–2009
Avalon 2005–2010
Land Cruiser 2008–2011
Prius 2004–2009
Land Cruiser Prado GRJ150 (verify)
Lexus ES350 2007–2010
GS300/GS350/GS430/GS450h/GS460 2006–2010
IS250/IS350/IS F 2006–2010
LS460 2007–2009
LX570 2008–2010
RX330/RX400h 2004–2008
Scion xB 2008–2010
xD 2008–2011
Pontiac Vibe 2009–2010
ISUZU D-MAX Pickup UTE 2012–present (verify)

Compatible OEM Numbers: 84306-06140, 84306-48030, 84306-06110, 84306-48020, 84306-02210, 84306-0E010, 84306-0N010 .

Technical Specifications
Based on manufacturer data, this clock spring has the following specifications :

  • ✅ Connector Quantity: 5
  • ✅ Terminal Quantity: 20
  • ✅ Wire Quantity: 2
  • ✅ Cruise Control: Not specified – verify with vehicle equipment
  • ✅ Terminal Type: Blade Pin
  • ✅ Material: High-strength flame-retardant plastic + High-purity copper ribbon

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. It maintains continuous electrical connection as the wheel turns, enabling :

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio and cruise controls (if equipped)

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), prompt replacement is highly recommended.

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly. Do NOT judge fitment by vehicle model and year alone – always compare appearance and pin count .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
