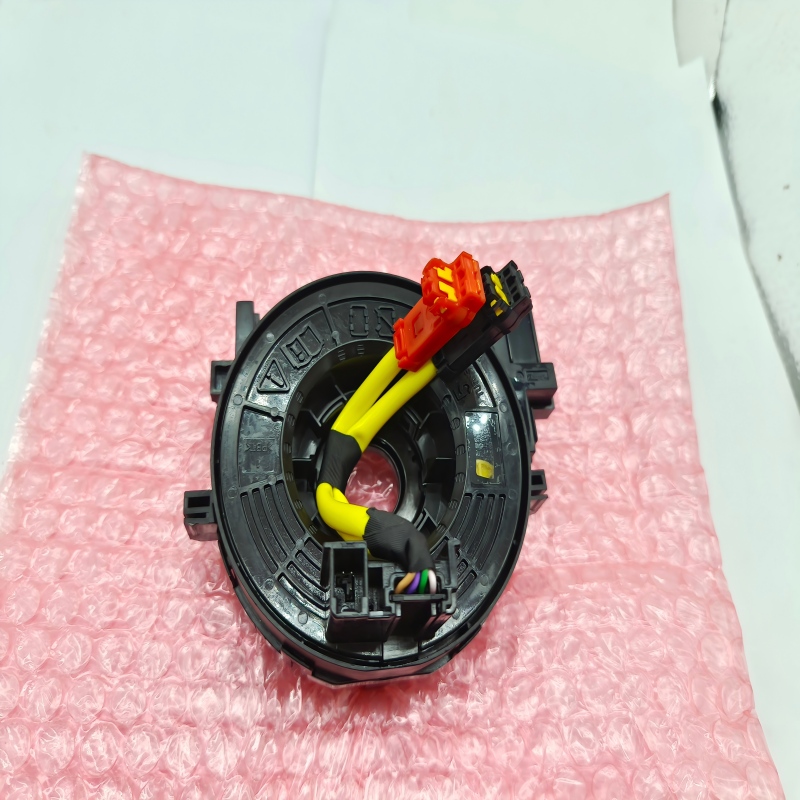

Clock Spring 84306-06210 for Toyota Hilux 2010 – 3 Pin – OEM

Direct replacement 3-pin OEM clock spring for Toyota Hilux (2010). OEM number: 84306-06210. Restores electrical connection for airbag, horn, and basic steering wheel controls. Features 3-pin configuration – verify your original part matches this pin count. High-strength copper ribbon, flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 84306-06210 for Toyota Hilux 2010 (3 Pin)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring is designed for Toyota Hilux (2010) with a 3-pin connector. This configuration typically supports basic airbag and horn functions, and may include steering wheel controls depending on trim level. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Toyota Hilux
This OEM replacement clock spring is engineered for the following Toyota model :

Model Chassis / Generation Years
Toyota Hilux AN10 / KUN15 2010

Compatible OEM Numbers: 84306-06210 (primary).

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. It maintains continuous electrical connection as the wheel turns, enabling :

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio and cruise controls (if equipped)

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), prompt replacement is highly recommended .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly. Do NOT judge fitment by vehicle model alone – always compare appearance and pin count .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
