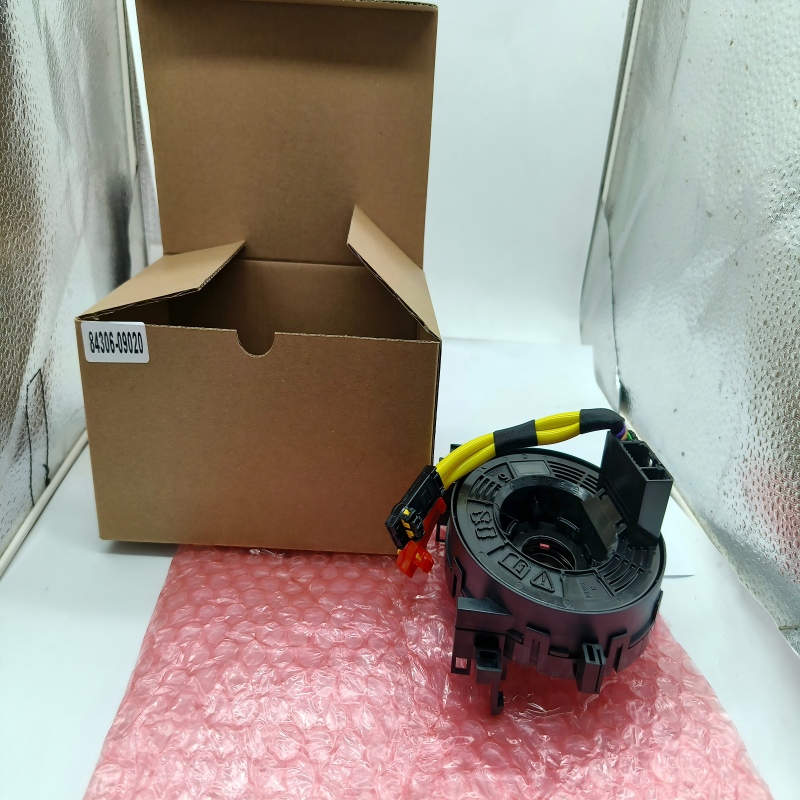

Clock Spring 84306-09020 for Toyota Camry 2010+ / Aurion / Camry Hybrid (ASV50 / AVV50 / GSV50 / ZRE17) – 12+4 Pin OEM

Direct replacement OEM clock spring for Toyota Camry (2010+), Aurion, and Camry Hybrid (ASV50/AVV50/GSV50/ZRE17). Compatible with 2011-2014 Camry Hybrid models . Features 12+4 pin configuration – verify your original part matches this pin count. Restores electrical connection for airbag, horn, cruise control, and steering wheel audio controls. High-strength copper ribbon with silver coating , flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip.

Product Description – Clock Spring 84306-09020 for Toyota Camry / Aurion / Camry Hybrid (12+4 Pin)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring features a 12+4 pin connector configuration, designed for specific Toyota Camry models. Trim levels and steering wheel options (heated wheel, paddle shifters, radar cruise controls) may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Toyota Models
This OEM replacement clock spring is engineered for the following Toyota vehicles based on manufacturer data :

Model Chassis / Code Years
Toyota Camry ASV50 / AVV50 / GSV50 2010–2017
Toyota Camry Hybrid AVV50 2011–2014
Toyota Aurion ZRE17 2010–2015
Toyota Camry (China) XV50 2011–2014

Compatible OEM Numbers: 84306-09020 (primary) .

Technical Specifications
Based on manufacturer data, this clock spring features premium quality construction :

  • ✅ Connector Configuration: 12+4 pins (verify with original part)
  • ✅ High-Purity Copper Ribbon: 0.21mm thickness with silver coating for superior conductivity
  • ✅ Temperature Resistance: Wiring rated up to 105°C
  • ✅ Moisture Protection: Insulation tape sealed housing prevents rust and corrosion
  • ✅ Secure Connectors: Locking position ensures stable connection, prevents loosening
  • ✅ Silent Operation: Tightly sealed plastic housing minimizes noise during rotation

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive . It maintains continuous electrical connection as the wheel turns, enabling :

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio, phone, and cruise controls
  • ✅ Steering angle sensor data for stability control (on equipped models)

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), prompt replacement is highly recommended .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly. Do NOT judge fitment by vehicle model alone – always compare appearance and pin count .

Quality You Can Trust

  • 🔹 Factory-Tested: 100% functionality tested before shipment
  • 🔹 Rigorous Durability: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 OEM Standard: Manufactured to meet or exceed original specifications
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 12 months against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
