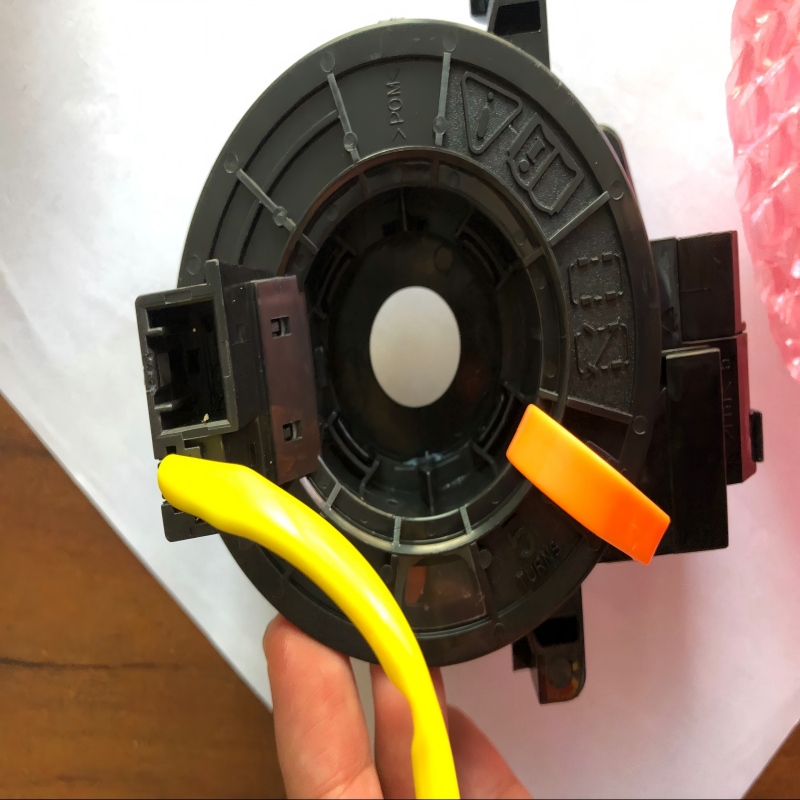

Clock Spring 84306-52100 84306-02190 for Toyota Yaris 2008-2013 Corolla 2007-2013 Vios 2008-2013 – 6 Pin OEM

Direct replacement 6-pin OEM clock spring for Toyota Yaris (2008-13), Corolla (2007-13), Vios (2008-13). Replaces 84306-52100, 84306-02190, 84306-12100. Official Toyota "Spiral Cable". For vehicles w/ cruise control & audio controls (multi-function). Restores airbag (SRS), horn & steering wheel switches. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 84306-52100 / 84306-02190 for Toyota Yaris / Corolla / Vios (6 Pin)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring features a 6-pin connector configuration, designed for vehicles equipped with cruise control and/or steering wheel audio controls. It is NOT compatible with base models lacking these features. Always visually compare pin count and connector shape with your original part before ordering. For 100% confirmation, contact us with your VIN.

OEM Cross Reference: This part replaces multiple OEM numbers including 84306-52100, 84306-02190, 84306-12100, 84306-0D140.

Direct Fit for Toyota Models
Based on manufacturer data and aftermarket compatibility research, this clock spring fits the following Toyota vehicles:

Model	Years	Chassis / Notes
Toyota Yaris	2008–2013	NCP9# series (with multi-function wheel)
Toyota Corolla	2007–2013	ZRE15# series (E140/E150)
Toyota Vios	2008–2013	NCP92/ZSP92 series
Toyota Auris	2007–2012	E150 series (verified by cross-reference)
Toyota Verso-S	2014	⚠️ User-provided – please verify with original part
Toyota Yaris	2005–2007	⚠️ User-provided – please verify with original part

Compatible OEM Numbers: 84306-52100 (primary), 84306-02190, 84306-12100, 84306-0D140. Official Toyota part name: "Cable Sub Assembly Spir" or "Spiral Cable".

6-Pin Configuration – For Multi-Function Steering Wheels
This clock spring features a 6-pin connector, which provides additional circuits for:

✅ Airbag (SRS) system (critical safety component)
✅ Horn operation
✅ Cruise control switches (if equipped)
✅ Steering wheel audio controls (if equipped)

It is specifically intended for vehicles originally equipped with these features. Using an incorrect clock spring will result in loss of those functions and may trigger the SRS warning light.

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. It maintains continuous electrical connection as the wheel turns.

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for multiple safety and convenience devices, prompt replacement is highly recommended.

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly. The spring is supplied in the central position and secured with a pin – do NOT remove the pin until after installation. Do not attempt to rewind the spiral cable if it has been removed.

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission for all circuits
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
