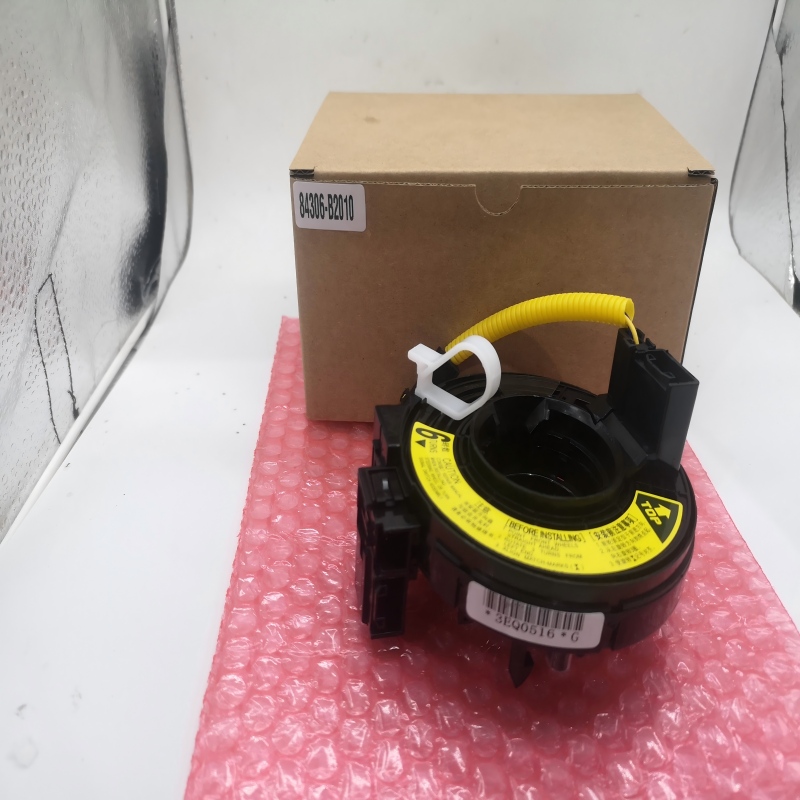

Clock Spring 84306-B2010 for Toyota Avanza F601/F602 2005-2009 Rush Passo Lite – Black Center OEM

Direct replacement OEM clock spring with black center aperture for Toyota Avanza (F601/F602 2005-2009), Rush, Passo, and Lite/Townace. OEM: 84306-B2010 (replaces 84306-B4010). Official Toyota part "Spiral Cable". Features distinctive black center design. Restores airbag (SRS), horn, and steering wheel control functions. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 84306-B2010 for Toyota Avanza / Rush / Passo / Lite (Black Center)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring features a distinctive black center aperture design . It is designed for vehicles equipped with steering wheel controls (audio, etc.). Always visually compare pin count, connector shape, and appearance with your original part before ordering. For 100% confirmation, contact us with your VIN.

OEM Cross Reference: This part replaces multiple OEM numbers including 84306-B2010, 84306-B4010 . Official Toyota part name: "Spiral Cable" or "Cable Sub-Assy, Spir" .

Note: Black center design may indicate specific application – verify compatibility with your vehicle.

Direct Fit for Toyota & Daihatsu Models
Based on manufacturer data and aftermarket compatibility research, this clock spring fits the following vehicles :

Make Model Years Chassis / Notes
Toyota Avanza 2005–2009 F601/F602 (with steering wheel controls)
Toyota Rush Verify F700 GR (user-provided – verify with original part)
Daihatsu Passo Verify KGC1/QNC10 (Japan market)
Toyota Lite / Townace Verify S402/S412 (Japan market)
Toyota Pixis Truck Verify S201U/S211U (Japan market)
Daihatsu Boon Verify M600 series (likely compatible)

Black Center Design
This clock spring features a black center aperture, which may indicate specific application variants. Always verify that this matches your original part's appearance .

Key Functions
This spiral cable maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :

  • ✅ Airbag (SRS) system (critical safety component)
  • ✅ Horn operation
  • ✅ Steering wheel audio controls (if equipped)
  • ✅ Other steering wheel switches (if equipped)

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns . A faulty clock spring may trigger the airbag warning light, cause horn failure, or make steering wheel controls unresponsive .

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Prompt replacement is highly recommended .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly. The spring is supplied in the central position and secured with a pin – do NOT remove the pin until after installation . Professional installation recommended .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
