Clock Spring 84306-B1010 for Toyota Wigo 2014-2016 Avanza 2012-2015 Rush 2008-2010 Passo – Red Center OEM

Direct replacement OEM clock spring with distinctive red center aperture for Toyota Wigo (2014-2016), Avanza (2012-2015), Rush (2008-2010), Agya (2012), and Passo (2010). OEM: 84306-B1010 (replaces 84306-BZ040). Official Toyota part "Spiral Cable". Features distinctive red center design for easy identification. Restores airbag (SRS), horn, and steering wheel control functions. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip.

Product Description – Clock Spring 84306-B1010 for Toyota Wigo / Avanza / Rush / Agya / Passo (Red Center)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring features a distinctive red center aperture design. It is designed for vehicles equipped with steering wheel controls (audio, etc.). Always visually compare pin count, connector shape, and the RED center appearance with your original part before ordering. For 100% confirmation, contact us with your VIN.

OEM Cross Reference: This part replaces multiple OEM numbers including 84306-B1010, 84306-BZ040 [citation:3]. Official Toyota part name: "Spiral Cable" or "Cable Sub-Assy, Spir".

Note: Red center design is a key identifier for this specific model – ensure your original part has the same red center before ordering.

Direct Fit for Toyota & Perodua Models
Based on manufacturer data and aftermarket compatibility research, this clock spring fits the following vehicles :

Make Model Years Notes
Toyota Wigo 2014–2016 Confirmed [citation:1]
Toyota Avanza 2012–2015 Confirmed [citation:1]
Toyota Rush 2008–2010 Confirmed [citation:2]
Toyota Agya 2012 Confirmed [citation:2]
Toyota Passo 2010 Confirmed [citation:2]
Perodua Myvi Verify Replaces 84306-BZ040 – verify with original part [citation:3]

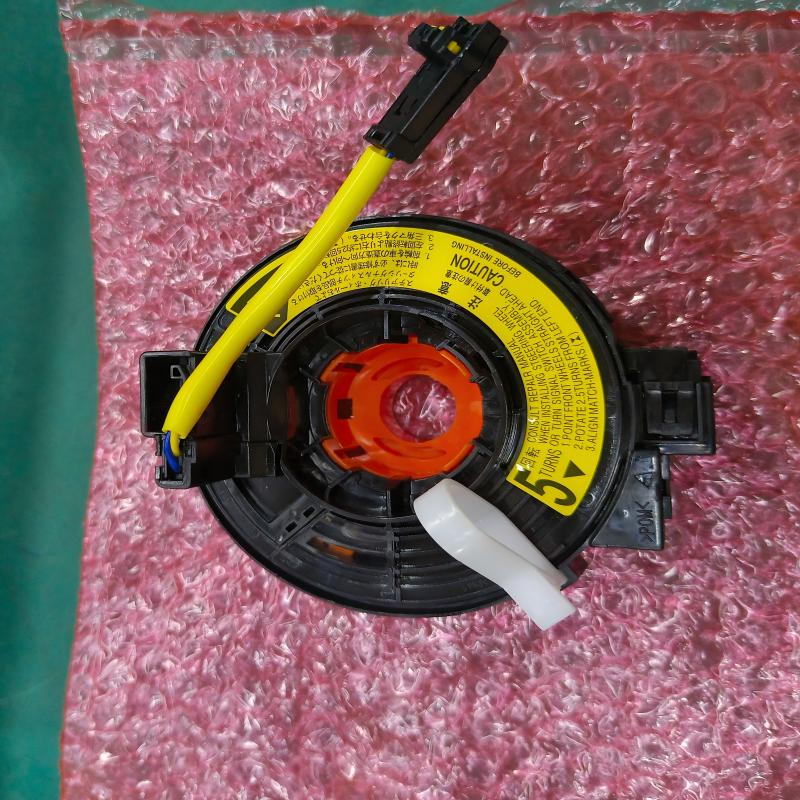

Red Center Design – Key Identification Feature
This clock spring features a red center aperture, which distinguishes it from other similar models (e.g., 84306-B2010 has black center). Always ensure your original part has the same red center appearance before ordering.

Key Functions
This spiral cable maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :

  • ✅ Airbag (SRS) system – critical safety component [citation:2]
  • ✅ Horn operation
  • ✅ Steering wheel audio controls (if equipped) [citation:2]
  • ✅ Other steering wheel switches (if equipped)

Why Your Clock Spring Matters
The clock spring (also called spiral cable) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns. A faulty clock spring may trigger the airbag warning light, cause horn failure, or make steering wheel controls unresponsive [citation:2].

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Prompt replacement is highly recommended if you experience any issues with steering wheel controls or airbag warning lights [citation:2].

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly [citation:1]. The spring is supplied in the central position – do NOT rotate or remove the pin until after installation. Professional installation recommended.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission [citation:2]
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed [citation:1]
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
