Which vehicles is this clock spring compatible with?

It is designed for Jeep Grand Cherokee (2011–2013, WK2 chassis).

What OEM number does this product replace?

It directly replaces OEM part number 10008742. It may also be known as 870C.

What are the symptoms of a bad clock spring?

Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Can I install it myself?

Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Does it work in extreme temperatures?

Yes, it is tested for reliable operation from -40°C to +85°C.

Yes, we offer a 1-year warranty against manufacturing defects.

ꁆ ꁇ

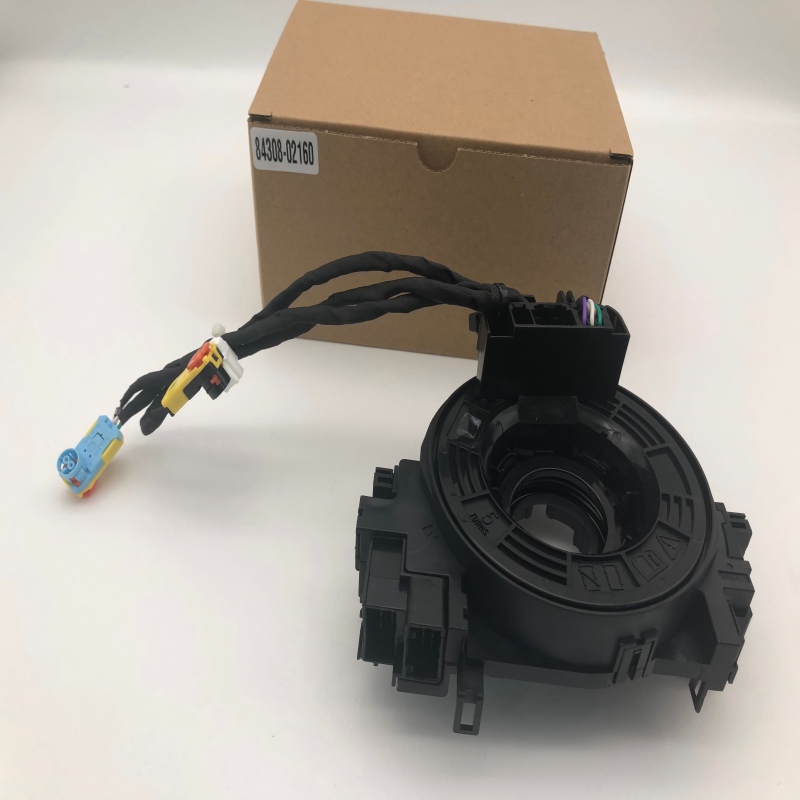

Clock Spring 84308-02160 for Toyota Camry Avalon 2019 RAV4 2019 Corolla 2020 – Without Angle Sensor – OEM

Direct replacement OEM clock spring for Toyota Camry/Avalon (2019), RAV4 (2019), and Corolla (2020). OEM: 84308-02160. Clock spring ONLY – does NOT include steering angle sensor (transfer from original if equipped). Designed for vehicles with multi-function steering wheel and Toyota Safety Sense. Restores airbag (SRS), horn, and steering wheel controls. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified.

Product Description – Clock Spring 84308-02160 for Toyota Camry / Avalon / RAV4 / Corolla (Without Angle Sensor)

🔍 IMPORTANT – PLEASE READ

This OEM clock spring is designed for late-model Toyota vehicles equipped with multi-function steering wheels and Toyota Safety Sense (TSS) .

⚠️ CRITICAL: This listing is for the clock spring ONLY. It does NOT include the steering angle sensor. If your vehicle is equipped with VSC, LKA, or other driver assist systems, you must carefully detach the angle sensor from your original clock spring and reattach it to this new unit .

Always visually compare pin count, connector shape, and appearance with your original part before ordering. For 100% confirmation, contact us with your VIN.

OEM Reference: 84308-02160 (primary). Official Toyota part name: "Cable Sub-Assy, Spir" or "Spiral Cable".

Direct Fit for Toyota Models
Based on manufacturer data, this clock spring fits the following Toyota vehicles :

Model	Year	Chassis / Notes
Toyota Camry	2019	XV70 series with TSS
Toyota Avalon	2019	XX50 series with TSS
Toyota RAV4	2019	XA50 series with TSS 2.0
Toyota Corolla	2020	E210 series with TSS 2.0

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :

✅ Airbag (SRS) system – critical safety component
✅ Horn operation
✅ Steering wheel audio, phone, and cruise controls
✅ Toyota Safety Sense interface (if equipped)

Note: This clock spring does NOT include the steering angle sensor. If your vehicle has stability control (VSC) or driver assist features, the angle sensor must be transferred from your original unit.

Why Your Clock Spring Matters
A faulty clock spring may trigger the airbag warning light, cause horn failure, or make steering wheel controls unresponsive. In modern Toyota vehicles with TSS, proper clock spring function is essential for driver assist systems to operate correctly .

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge.

Angle Sensor Transfer (if applicable): If your original clock spring has an attached angle sensor, carefully unclip it and mount it onto the new clock spring in the same orientation .

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable .

Verification: Always verify that the replacement part matches your original in connector type, pin count, and physical appearance. Professional installation recommended .

Post-Installation: After installation, verify all steering wheel functions (horn, controls, airbag light) operate correctly. If the SRS light remains on, diagnostic scanning may be required .

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission for all circuits
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
