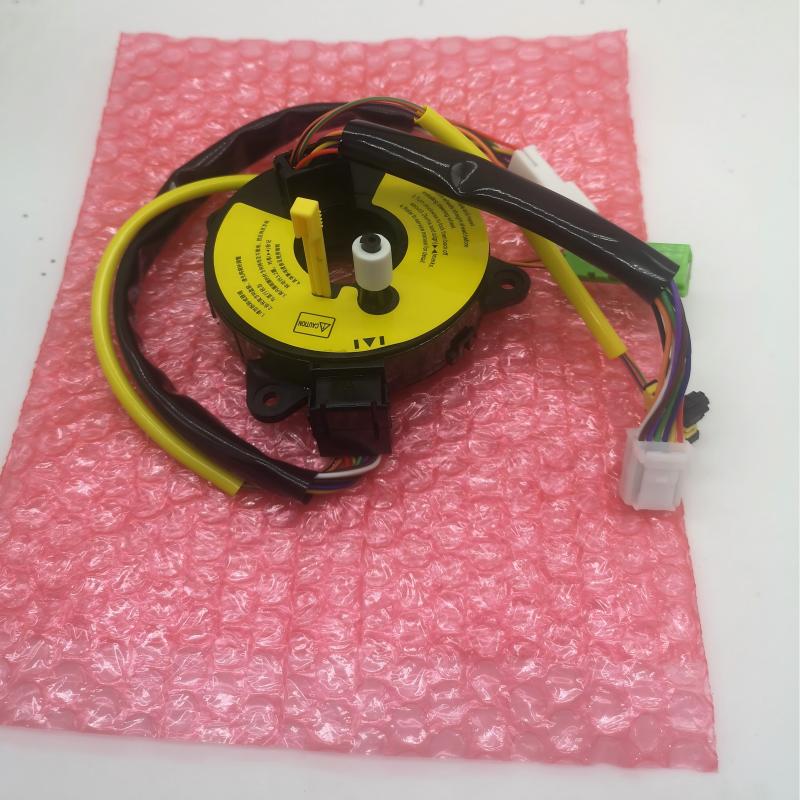

Clock Spring C00045162 for SAIC Maxus V80 2011-2023 – Aftermarket

Direct replacement aftermarket clock spring for SAIC Maxus V80 (2011-2023). Replaces OEM part number C00045162. Restores airbag (SRS) and horn functions. Designed for vehicles with or without multifunction steering wheel – verify connector before ordering. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Aftermarket Clock Spring C00045162 for SAIC Maxus V80

🔍 IMPORTANT – PLEASE READ

This aftermarket clock spring is designed to fit SAIC Maxus V80 models. However, due to different trim levels and steering wheel configurations (with/without multifunction buttons), there may be variations in connector type and pin count.

⚠️ CRITICAL: Always visually compare pin count, connector shape and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Reference: This part replaces original SAIC Maxus part number C00045162.

Compatible Vehicles
Based on market research, this clock spring is compatible with the following SAIC Maxus V80 models:

Make Model Years Notes
SAIC Maxus V80 (Classic) 2011–2020 Verify connector
SAIC Maxus V80 (New Model) 2021–2023 Verify connector
SAIC Maxus EV80 (Electric) 2015–2022 May use same part – verify

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

  • ✅ Airbag (SRS) system – critical safety component
  • ✅ Horn operation
  • ✅ Optional: steering wheel audio/cruise controls (if equipped and connector matches)

Why Your Clock Spring Matters
A faulty clock spring may trigger the airbag warning light or cause horn failure. Prompt replacement is recommended if any of these symptoms occur.

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable.

Verification: Always verify that the replacement part matches your original in connector type and pin count. Professional installation recommended.

Post-Installation: After installation, verify horn function and ensure the airbag warning light extinguishes correctly.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
