Which vehicles is this clock spring compatible with?

It is designed for Jeep Grand Cherokee (2011–2013, WK2 chassis).

What OEM number does this product replace?

It directly replaces OEM part number 10008742. It may also be known as 870C.

What are the symptoms of a bad clock spring?

Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Can I install it myself?

Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Does it work in extreme temperatures?

Yes, it is tested for reliable operation from -40°C to +85°C.

Yes, we offer a 1-year warranty against manufacturing defects.

ꁆ ꁇ

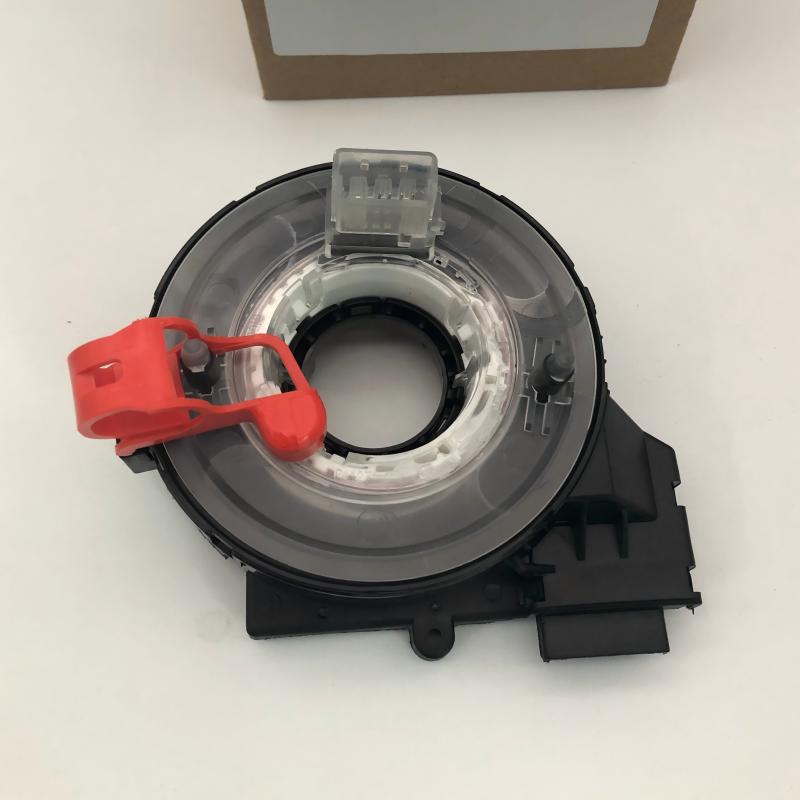

Clock Spring 3C0959653B 1K0959653B for VW Passat B6 CC Magotan 2006-2012

Direct replacement clock spring for Volkswagen Passat B6/CC (2006-2012) and Magotan (2007-2012). Replaces OEM #3C0959653B, 1K0959653B. Essential component for driver airbag (SRS), horn and steering wheel controls. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Clock Spring 3C0959653B / 1K0959653B for VW Passat B6 / CC / Magotan

🔍 IMPORTANT – PLEASE READ

This clock spring is designed to fit Volkswagen Passat B6, CC and Magotan models from 2006-2012. It replaces OE part numbers 3C0959653B and 1K0959653B [citation:2][citation:4].

⚠️ CRITICAL: Always visually compare connector shape, pin configuration and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Cross Reference: 3C0959653B, 1K0959653B, 3C0 959 653 B, 1K0 959 653 B [citation:2].

Direct Fit for Volkswagen Models
Based on compatibility research, this clock spring fits the following vehicles [citation:2]:

Make	Model	Years	Notes
Volkswagen	Passat B6	2006–2010	2.0T / 3.6L / 4Motion [citation:2]
Volkswagen	CC	2009–2012	2.0T / VR6 / 4Motion [citation:2]
Volkswagen	Magotan	2007–2012	Chinese market, Passat B6 platform [citation:1]

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling [citation:2][citation:4]:

✅ Airbag (SRS) system – critical safety component
✅ Horn operation
✅ Steering wheel audio controls (if equipped)
✅ Cruise control switches (if equipped)

Note: On some models, the clock spring works with the steering angle sensor and may throw faults in that system if not properly installed or matched [citation:2]. After installation, the steering angle sensor may require calibration using a diagnostic scanner [citation:3][citation:7].

Signs of Failure
A faulty clock spring may exhibit the following symptoms [citation:3][citation:4][citation:7]:

⚠️ Airbag warning light illuminates on dashboard
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🚨 In critical cases, driver airbag may not deploy in a collision [citation:4]

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge [citation:3][citation:6].

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable [citation:3][citation:7].

Installation Steps: Remove steering wheel, disconnect old clock spring, install new unit ensuring proper alignment, reconnect all electrical connections [citation:1][citation:6].

Sensor Calibration: After installation, the steering angle sensor may require calibration using a diagnostic scanner (VCDS/ODIS) to clear fault codes and ensure proper system function [citation:3][citation:7].

Verification: Always verify that the replacement part matches your original in connector type and pin configuration. Professional installation recommended [citation:3][citation:8].

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly [citation:3][citation:7].

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
