Which vehicles is this clock spring compatible with?

It is designed for Jeep Grand Cherokee (2011–2013, WK2 chassis).

What OEM number does this product replace?

It directly replaces OEM part number 10008742. It may also be known as 870C.

What are the symptoms of a bad clock spring?

Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Can I install it myself?

Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Does it work in extreme temperatures?

Yes, it is tested for reliable operation from -40°C to +85°C.

Yes, we offer a 1-year warranty against manufacturing defects.

ꁆ ꁇ

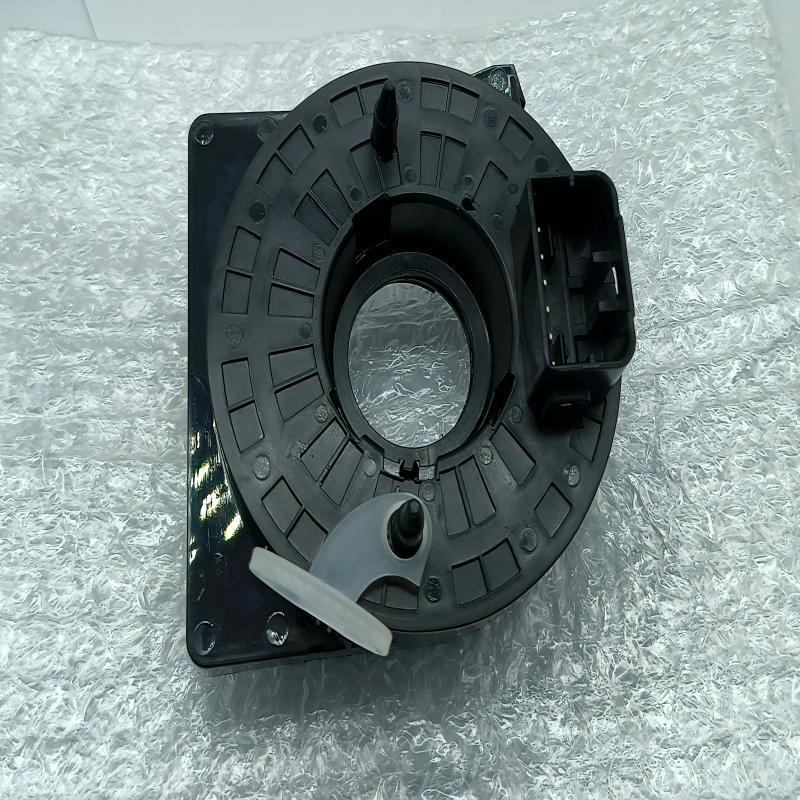

Clock Spring 6Q0959653A 6 Pin for Skoda Fabia 2007-2015 VW Polo 9N 2001-2009 T5 Transporter 2003-2015

Direct replacement clock spring with 6-pin connector for Škoda Fabia II (2007-2015), VW Polo 9N (2001-2009), VW Transporter T5 (2003-2015), SEAT Ibiza/Cordoba (2002-2012) and Škoda Roomster (2006-2015). Replaces OEM #6Q0959653A. For vehicles WITHOUT steering angle sensor. Essential component for driver airbag (SRS) and horn. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 6Q0959653A 6 Pin for Škoda / VW / SEAT

🔍 IMPORTANT – PLEASE READ

This clock spring features a 6-pin connector and is designed for vehicles without steering angle sensor . It fits a wide range of Volkswagen Group models from the 2000s to mid-2010s .

⚠️ CRITICAL: Always visually compare connector shape, pin configuration (6 pins) and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Reference: 6Q0959653A, 6Q0 959 653 A, 251658, 185694 .

Direct Fit for Škoda / VW / SEAT Models
Based on compatibility research from multiple suppliers, this 6-pin clock spring fits the following vehicles :

Make	Model	Years	Chassis / Notes
Škoda	Fabia II	2007–2015	5J/542, without angle sensor
Škoda	Roomster / Praktik	2006–2015	5J
Volkswagen	Polo	2001–2009	9N/9A, 6-pin connection
Volkswagen	Transporter / Multivan	2003–2015	T5 (7H/7J)
SEAT	Ibiza	2002–2012	6L/6J, 6-pin connection
SEAT	Cordoba	2002–2009	6L

Technical Specifications
This clock spring has the following characteristics based on supplier data :

🔹 Connector Configuration: 1 x 6-pin airbag connection (steering wheel side) + 1 x 6-pin connection to vehicle installation
🔹 Sensor Compatibility: For vehicles without steering angle sensor
Function: Clock spring, airbag squib
🔹 Placement on Vehicle: Steering column, behind steering wheel
🔹 Material: Plastic, flame-retardant housing
🔹 Colour: Black
🔹 Weight: Approximately 0.096–0.101 kg

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :

✅ Airbag (SRS) system – critical safety component
✅ Horn operation
✅ Steering wheel controls (if equipped and connector matches)

Signs of Failure
A faulty clock spring may exhibit the following symptoms :

⚠️ Airbag warning light illuminates on dashboard
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge .

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable .

Installation Notes: This 6-pin clock spring is designed for vehicles without steering angle sensor. If re-centering is required, turn the rotor counterclockwise as far as it will go, then clockwise approx. 3.0 turns until marks align .

Verification: Always verify that the replacement part matches your original in connector type and 6-pin configuration. Professional installation recommended .

Post-Installation: After installation, verify horn function and ensure the airbag warning light extinguishes correctly.

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
