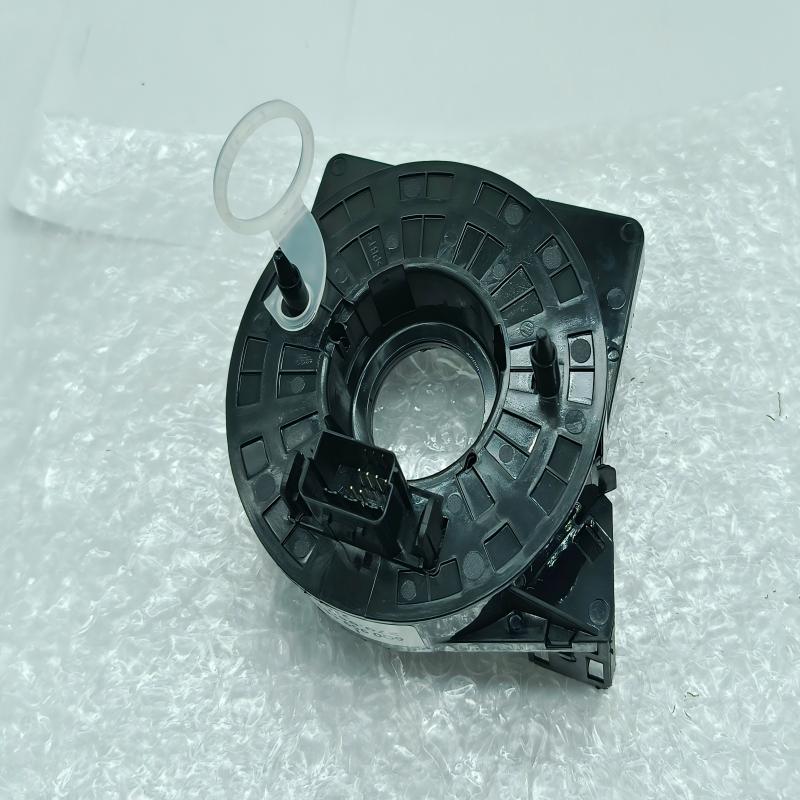

Clock Spring 6Q0959653B 6 Pin for VW Polo 9N 2002-2010 Transporter T5 2003-2015
Product Description – Clock Spring 6Q0959653B 6 Pin for VW Polo / Transporter T5
🔍 IMPORTANT – PLEASE READ
This clock spring features a 6-pin connector configuration and is designed for vehicles without steering angle sensor. It fits a wide range of Volkswagen Group models from the 2000s to mid-2010s .
⚠️ CRITICAL: Always visually compare connector shape, pin configuration (6 pins) and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.
OEM Reference: 6Q0959653B, 6Q0 959 653 B, 808359, 181595, 251756 .
Direct Fit for Volkswagen / SEAT / Škoda Models
Based on compatibility research from multiple suppliers, this 6-pin clock spring fits the following vehicles :
| Make | Model | Years | Chassis / Notes |
|---|---|---|---|
| Volkswagen | Polo | 2001–2009 | 9N/9A, 6-pin connection |
| Volkswagen | Transporter / Multivan | 2003–2015 | T5 (7H/7J) |
| Volkswagen | Transporter T6 | Verify | User-provided – please verify with original part |
| Volkswagen | UP! | 2011–2020 | 121/122/BL1/BL2/BL3/123 |
| Volkswagen | Amarok | Verify | May be compatible |
| SEAT | Ibiza III/IV | 2002–2012 | 6L/6J, 6-pin connection |
| SEAT | Cordoba | 2002–2009 | 6L |
| SEAT | Mii | 2011–2019 | KF1 |
| Škoda | Fabia II | 2007–2015 | 5J/542 |
| Škoda | Roomster / Praktik | 2006–2015 | 5J |
| Škoda | Citigo | 2011–2019 | NF1 |
Technical Specifications
This clock spring has the following characteristics based on supplier data :
- 🔹 Connector Configuration: 1 x 6-pin vehicle installation connection + 1 x 4+2 pin airbag connection
- 🔹 Sensor Compatibility: For vehicles without steering angle sensor
- 🔹 Function: Clock spring, airbag squib
- 🔹 Placement on Vehicle: Steering column, behind steering wheel
- 🔹 Weight: Approximately 0.096 kg
- 🔹 Connector Colors: As shown in product images (varies by manufacturer)
Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :
- ✅ Airbag (SRS) system – critical safety component
- ✅ Horn operation
- ✅ Steering wheel controls (if equipped and connector matches)
Signs of Failure
A faulty clock spring may exhibit the following symptoms :
- ⚠️ Airbag warning light illuminates on dashboard
- 📢 Horn does not function
- 🎛️ Steering wheel-mounted controls become unresponsive
- 🚨 In critical cases, driver airbag may not deploy in a collision
⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS
Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge .
Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable .
Installation Notes: This 6-pin clock spring is designed for vehicles without steering angle sensor. If re-centering is required, turn the rotor counterclockwise as far as it will go, then clockwise approximately 3.0 turns until marks align .
Important Warning: This electrical component does NOT cover warranty and return once installed – please ensure compatibility before installation .
Verification: Always verify that the replacement part matches your original in connector type and 6-pin configuration. Professional installation recommended .
Post-Installation: After installation, verify horn function and ensure the airbag warning light extinguishes correctly.
Quality You Can Trust
- 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
- 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
- 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
- 🔹 Centering Clip Included: Do NOT remove until fully installed
- 🔹 Warranty: 1-year against manufacturing defects
Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
