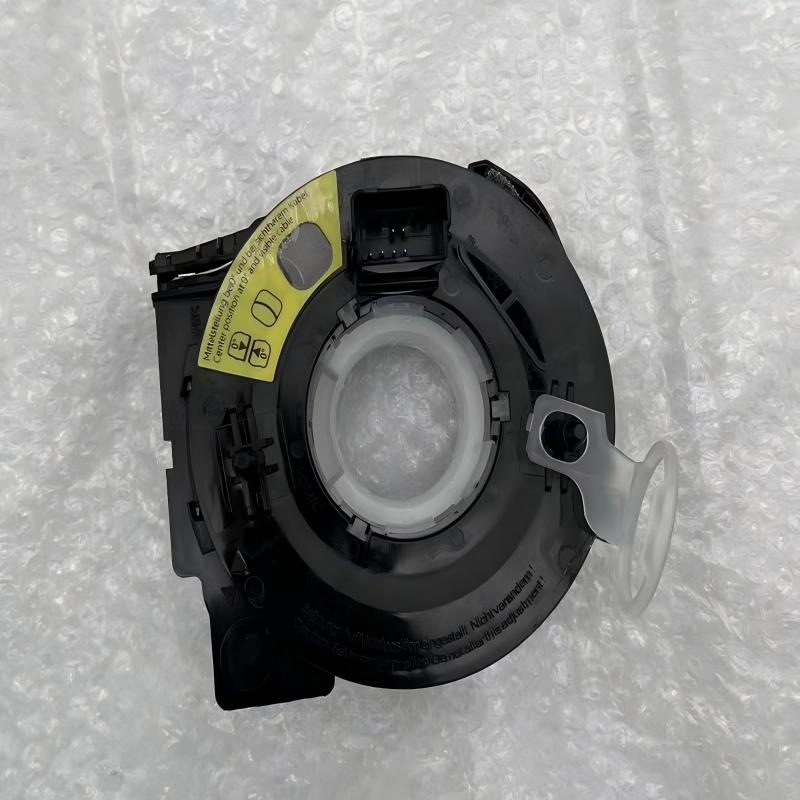

Clock Spring 6R0959653 6 Pin for VW POLO 2009-2024 Lavida 2008-2013 Skoda Fabia SEAT Ibiza

Direct replacement clock spring with 6-pin flat pin connector for Volkswagen POLO V (6R/6C, 2009-2024), Lavida (2008-2013), Škoda Fabia (2008-), and SEAT Ibiza (2014). Replaces OEM #6R0959653, 6R0 959 653. Essential component for driver airbag (SRS) and horn functions. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Clock Spring 6R0959653 6 Pin for VW POLO / Lavida / Škoda / SEAT

🔍 IMPORTANT – PLEASE READ

This clock spring features a 6-pin flat pin connector and is designed for Volkswagen Group small car platforms from the late 2000s onwards .

⚠️ CRITICAL: Always visually compare connector shape, pin configuration (6 pins) and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Reference: 6R0959653, 6R0 959 653 .

Direct Fit for Volkswagen / Škoda / SEAT Models
Based on compatibility research, this 6-pin clock spring fits the following vehicles :

Make Model Years Chassis / Notes
Volkswagen POLO V 2009–2024 6R1/6C1, 6-pin flat pin
Volkswagen Lavida (朗逸) 2008–2013 Small plug version
Volkswagen Transporter Verify User-provided – please verify with original part
Škoda Fabia (晶锐) 2008–
SEAT Ibiza IV 2014 6J chassis, 1.6 TDI

Technical Specifications
This clock spring has the following characteristics based on supplier data :

  • 🔹 Connector Type: 6-pin flat pin configuration
  • 🔹 Function: Clock spring, airbag squib
  • 🔹 Placement on Vehicle: Steering column, behind steering wheel
  • 🔹 OE Number Cross Reference: 6R0959653, 6R0 959 653

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling :

  • ✅ Airbag (SRS) system – critical safety component
  • ✅ Horn operation
  • ✅ Steering wheel controls (if equipped and connector matches)

Signs of Failure
A faulty clock spring may exhibit the following symptoms :

  • ⚠️ Airbag warning light illuminates on dashboard
  • 📢 Horn does not function
  • 🎛️ Steering wheel-mounted controls become unresponsive
  • 🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable.

Verification: Always verify that the replacement part matches your original in connector type and 6-pin configuration. Professional installation recommended.

Post-Installation: After installation, verify horn function and ensure the airbag warning light extinguishes correctly.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
