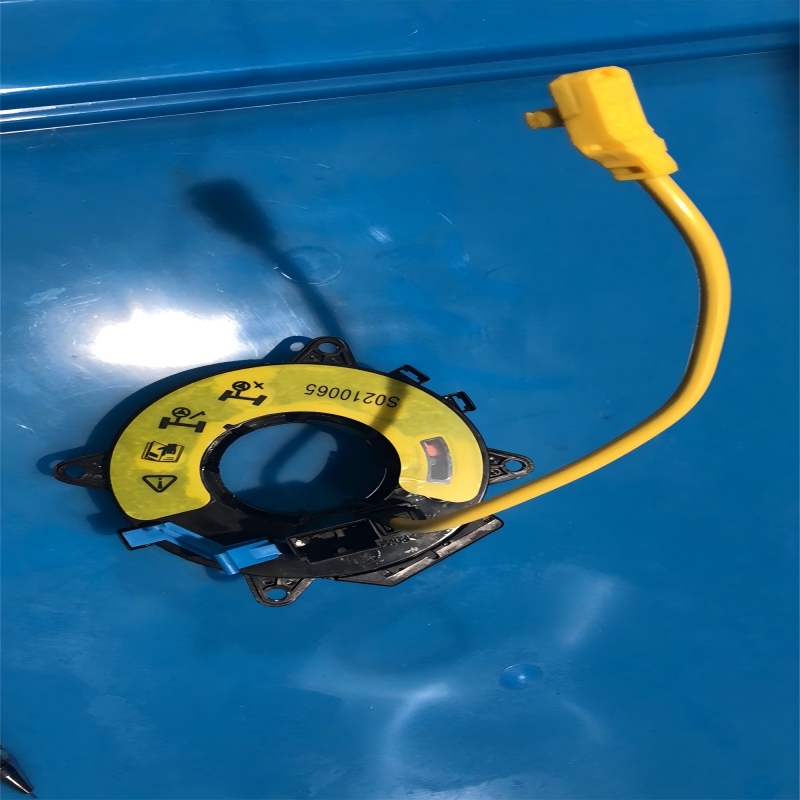

Clock Spring XRC100390 for Land Rover Freelander MK1 1998-2006 Squib Ring Rotary Coupling

Direct replacement clock spring (rotary coupler/squib ring) for Land Rover Freelander MK1 (L314, 1998-2006). Replaces OEM #XRC100390, 99165151, DH003337871. Essential component for driver airbag (SRS) and horn functions. Common symptoms of failure include horn not working and airbag warning light illumination. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring XRC100390 for Land Rover Freelander MK1 (1998-2006)

🔍 IMPORTANT – PLEASE READ

This clock spring (also known as rotary coupler or squib ring) is designed for the Land Rover Freelander MK1 (L314) manufactured between 1998 and 2006 [citation:1][citation:3]. It is a critical safety component located behind the steering wheel that maintains electrical connection for the airbag, horn, and steering wheel controls [citation:2][citation:5].

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Cross Reference: This part replaces OEM numbers including XRC100390, 99165151, DH003337871 [citation:4][citation:6].

Direct Fit for Land Rover Models
Based on compatibility research from multiple suppliers, this clock spring fits the following vehicles [citation:1][citation:2][citation:4]:

Make Model Years Chassis / Notes
Land Rover Freelander I (MK1) 1998–2006 L314 chassis [citation:1]

Technical Specifications

  • 🔹 Function: Clock spring / Rotary coupler / Airbag squib ring [citation:2][citation:3]
  • 🔹 Placement on Vehicle: Steering column, behind steering wheel
  • 🔹 Rotation Range: 2 1/4 turns either way from central position [citation:5][citation:8]
  • 🔹 Condition: Quality replacement part

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling [citation:1][citation:5]:

  • ✅ Airbag (SRS) system – critical safety component
  • ✅ Horn operation
  • ✅ Steering wheel controls (if equipped)

Common Signs of Failure
Based on owner experiences, a faulty clock spring may exhibit the following symptoms [citation:5][citation:8]:

  • ⚠️ Horn stops working (while horn still functions with central locking/alarm)
  • ⚠️ Airbag warning light illuminates on dashboard
  • ⚠️ Steering wheel-mounted controls become unresponsive
  • ⚠️ In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 30 minutes for the airbag system to discharge [citation:5][citation:8].

Centering: Ensure front wheels are perfectly straight. The new clock spring should be set to the central position before fitting. The rotary coupler will do 2 1/4 turns either way from the central position [citation:5][citation:8].

Installation: The new clock spring may come with a centering clip or tie – do NOT remove this until the clock spring is fully installed and the steering wheel is in position [citation:2].

Verification: After installation, check you have free steering lock to lock before driving off [citation:5]. Test horn function and ensure the airbag warning light extinguishes correctly.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
