Which vehicles is this clock spring compatible with?

It is designed for Jeep Grand Cherokee (2011–2013, WK2 chassis).

What OEM number does this product replace?

It directly replaces OEM part number 10008742. It may also be known as 870C.

What are the symptoms of a bad clock spring?

Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Can I install it myself?

Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Does it work in extreme temperatures?

Yes, it is tested for reliable operation from -40°C to +85°C.

Yes, we offer a 1-year warranty against manufacturing defects.

ꁆ ꁇ

Clock Spring 255670657R for Renault Clio II 1998-2012 Thalia Symbol – Airbag Spiral Cable

Direct replacement clock spring (airbag spiral cable) for Renault Clio II (1998-2012) and Thalia I / Symbol. Replaces OEM #255670657R, 25 56 706 57R. 2-pin airbag connector configuration (orange + grey). Essential component for driver airbag (SRS) and horn functions. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 2-year warranty.

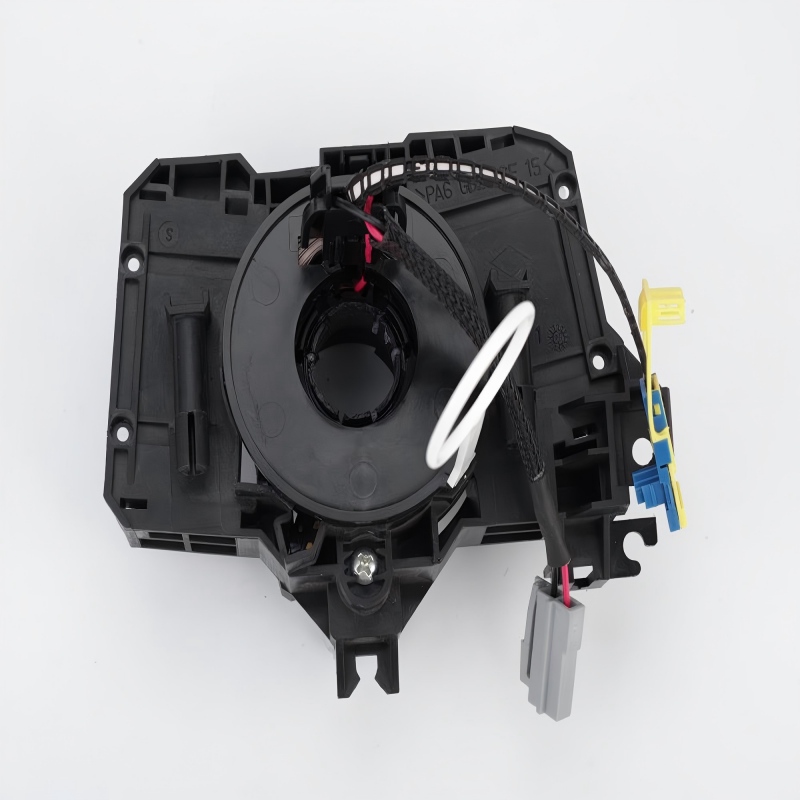

Product Description – Clock Spring 255670657R for Renault Clio II / Thalia / Symbol

🔍 IMPORTANT – PLEASE READ

This clock spring (also known as airbag spiral cable or steering wheel contact) is a critical safety component located behind the steering wheel. Its role is to maintain continuous electrical connection for the driver's airbag (SRS), horn, and steering wheel controls as the steering wheel turns.

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Cross Reference: This part replaces OEM numbers including 255670657R, 25 56 706 57R, 34446405, 251779, V46-72-0223, CCC71006AS.

Direct Fit for Renault Models
Based on compatibility research, this clock spring fits the following vehicles:

Make	Model	Years	Chassis / Notes
Renault	Clio II	1998–2012	BB/CB chassis
Renault	Clio II (Facelift)	1998–2004	SB0/SB1/SB2 chassis
Renault	Thalia / Symbol / Clio Symbol	2000–	LB chassis

Technical Specifications

🔹 Function: Clock spring, airbag spiral cable, steering wheel contact
🔹 Placement on Vehicle: Steering column, behind steering wheel
🔹 Connector Configuration: 2 connections to airbag (orange 2-pin + grey 2-pin); 2 connections to vehicle installation (1x 2-pin + 1x 2-pin with terminal)
🔹 OE Numbers: 255670657R, 25 56 706 57R

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

✅ Airbag (SRS) system – critical safety component
✅ Horn operation
✅ Steering wheel controls (if equipped)

Signs of Failure
A faulty clock spring may exhibit the following symptoms:

⚠️ Airbag warning light illuminates on dashboard
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Stop the engine, disconnect the battery, and wait at least 10 minutes for the airbag system to discharge. The spiral cable must be installed with the steering in the straight-ahead position and the steering wheel fully centered.

Centering: The new clock spring is supplied in the center position and secured with a pin – do NOT remove this pin until the clock spring is fully installed and the steering wheel is in position. If recentering is required, turn the rotor counterclockwise as far as it will go, then turn clockwise approximately 3.0 turns until the rotor marks align.

Important Warning: This electrical component is NOT warranty and returnable once installed – please ensure compatibility before installation. If the spiral cable has been dismantled, it cannot be rewound.

Verification: Always verify that the replacement part matches your original in connector type and pin configuration. To confirm compatibility, contact us with your VIN.

Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 2-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
