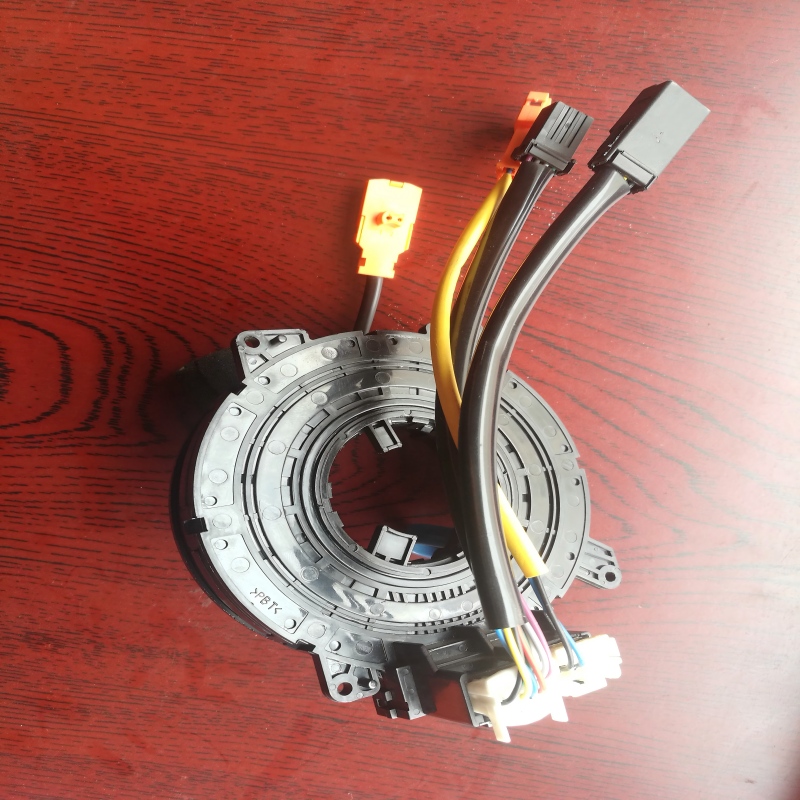

Clock Spring PW950909 10 Way for Proton Gen2 Waja Saga Persona Exora – Airbag Spiral Cable
Product Description – Clock Spring PW950909 10 Way for Proton Models
🔍 IMPORTANT – PLEASE READ
This clock spring features a 10-way (10-pin / 10-wire) connector configuration and is designed for Proton vehicles equipped with multifunction steering wheel controls (audio controls, cruise control, phone controls, etc.).
⚠️ CRITICAL: Always visually compare the connector shape, pin count (10 pins), and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN and photos of your original clock spring.
OEM Cross Reference: This part replaces OEM numbers including PW950909 .
Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.
Direct Fit for Proton Models
Based on compatibility research, this 10-way clock spring fits the following vehicles:
| Make | Model | Years | Notes |
|---|---|---|---|
| Proton | Gen2 | 2004– | 10-way configuration for high-spec models |
| Proton | Waja | 2000–2011 | 10-way configuration – verify with original part |
| Proton | Saga / BLM / FLX | 2008– | 10-way configuration – verify with original part |
| Proton | Persona | 2007– | 10-way configuration – verify with original part |
| Proton | Exora | 2009– | 10-way configuration – verify with original part |
Technical Specifications
- 🔹 Brand: ROYUAN – Premium aftermarket manufacturer
- 🔹 Function: Clock spring / Airbag spiral cable
- 🔹 Connector Configuration: 10-way (10-pin / 10-wire) connector
- 🔹 Placement on Vehicle: Steering column, behind steering wheel
- 🔹 Material: High-strength copper ribbon, flame-retardant ABS plastic housing
- 🔹 OE Number: PW950909
Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:
- ✅ Airbag (SRS) system – critical safety component
- ✅ Horn operation
- ✅ Steering wheel audio controls (volume, track, mode)
- ✅ Cruise control switches (if equipped)
- ✅ Bluetooth / phone controls (if equipped)
Signs of Failure
A faulty clock spring may exhibit the following symptoms:
- ⚠️ Airbag warning light illuminates on dashboard
- 📢 Horn does not function or sounds continuously
- 🎛️ Steering wheel-mounted controls (audio, cruise) become unresponsive
- ⚡ Intermittent electrical issues with steering wheel functions
- 🚨 In critical cases, driver airbag may not deploy in a collision
⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS
Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge.
Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable.
Verification: This 10-way clock spring is designed for vehicles with multifunction steering wheel controls. Count the pins on your original connector (should be 10 pins) before ordering. For 100% confirmation, contact us with your VIN and photos of your original clock spring.
Post-Installation: After installation, verify horn function, all steering wheel controls (audio, cruise, etc.), and ensure the airbag warning light extinguishes correctly.
Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.
Quality You Can Trust
- 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
- 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
- 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
- 🔹 Centering Clip Included: Do NOT remove until fully installed
- 🔹 Warranty: 1-year warranty
Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
