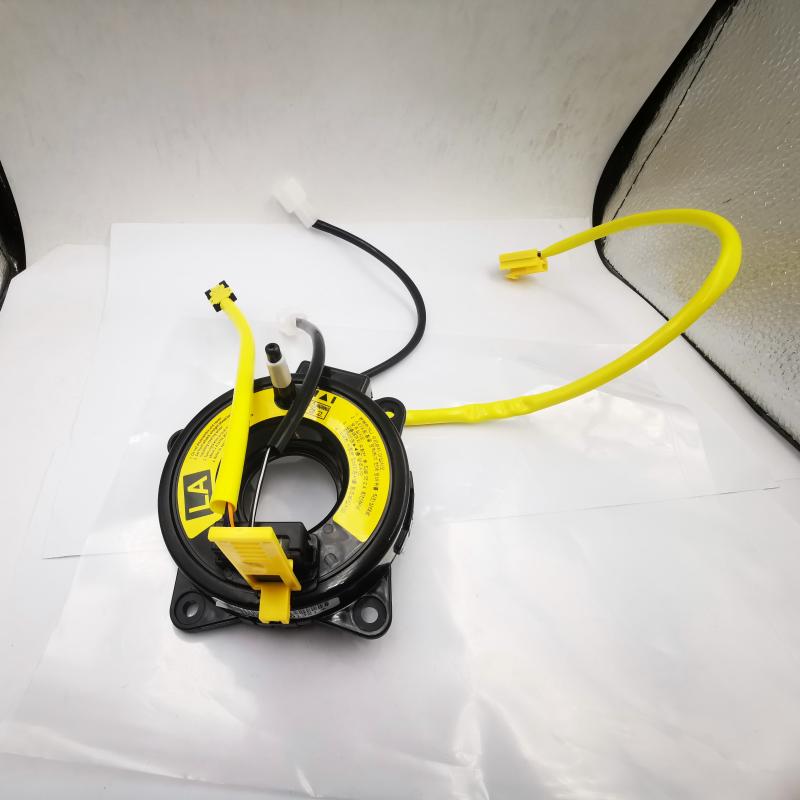

Clock Spring 96966752 for Daewoo Chevrolet Matiz Spark Life 2005-2009 – Airbag Spiral Cable

Direct replacement clock spring (airbag spiral cable) for Daewoo / Chevrolet Matiz (2005-2009), Spark Life. Replaces OEM #96966752. Essential component for driver airbag (SRS), horn, and steering wheel controls. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. IMPORTANT: Please compare with your original part before ordering.

Product Description – Clock Spring 96966752 for Daewoo / Chevrolet Matiz (Spark Life)

🔍 IMPORTANT – PLEASE READ

This clock spring (also known as airbag spiral cable or contact coil) is a critical safety component located behind the steering wheel. Its role is to maintain continuous electrical connection for the driver's airbag (SRS), horn, and steering wheel controls as the steering wheel turns .

⚠️ CRITICAL: Please visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN or clear photos of your original clock spring.

OEM Reference: 96966752 (verify with original part).

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Compatible Vehicles
Based on the part number and user-provided information, this clock spring is intended for the following vehicles. Customers must verify with their original part.

Make Model Years Notes
Daewoo / Chevrolet Matiz (M150 / M200) 2005–2009 800cc / 1.0L models – verify with original part
Chevrolet Spark Life 2005–2009 User-provided – verify with original part

Technical Specifications

  • 🔹 Brand: ROYUAN – Premium aftermarket manufacturer
  • 🔹 Function: Clock spring / Airbag spiral cable / Contact coil
  • 🔹 Placement on Vehicle: Steering column, behind steering wheel
    Part of the electrical contact between the steering column wiring harness and the driver side airbag module .
  • 🔹 Material: High-strength copper ribbon, flame-retardant ABS plastic housing
  • 🔹 OE Number (Reference): 96966752

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

  • ✅ Airbag (SRS) system activation – critical safety component .
  • ✅ Horn operation .
  • ✅ Steering wheel controls (if equipped).

Signs of Failure
A faulty clock spring may exhibit the following symptoms:

  • ⚠️ Airbag warning light illuminates on dashboard (stays ON after 4 seconds) .
  • 📢 Horn does not function .
  • 🎛️ Steering wheel-mounted controls become unresponsive.
  • 🚨 In critical cases, driver airbag may not deploy in a collision .

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 1 minute for the airbag system capacitor to discharge .

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. If the clock spring is not properly aligned, the steering wheel may not be able to rotate completely during a turn, and the SIR system may become inoperative .

Installation Steps: Remove the driver airbag module and steering wheel, disconnect the old clock spring and horn terminal connector, install the new clock spring with screws (torque to 3 N·m / 27 lb-in), then reconnect all electrical connections .

Alignment: After installation, turn the clock spring label clockwise to lock, then turn counterclockwise approximately 3 turns to the neutral position with front wheels straight ahead .

Important Notice: Do not turn the steering wheel more than 3.25 turns in either direction, as this may damage the clock spring . Never disassemble the clock spring .

Verification: Please compare connectors and pin configuration with your original part. Provide VIN and photos if unsure.

Post-Installation: After installation, verify horn function and ensure the airbag warning light turns OFF after approximately 4 seconds .

Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
