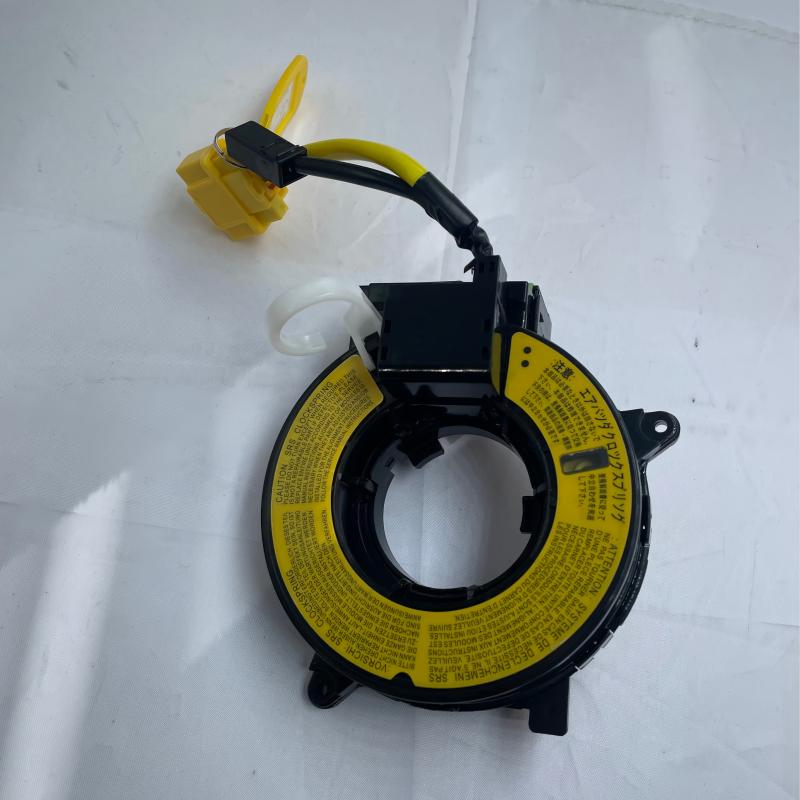

Clock Spring MN162064 for Mitsubishi Grandis 2003-2010 – Airbag Spiral Cable

Direct replacement clock spring (airbag spiral cable) for Mitsubishi Grandis (2003-2010). Replaces OEM #MN162064, 8619A018. Essential component for driver airbag (SRS), horn, and steering wheel controls. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Clock Spring MN162064 for Mitsubishi Grandis (2003-2010)

🔍 IMPORTANT – PLEASE READ

This clock spring (also known as airbag spiral cable or airbag sensor spring) is a critical safety component located behind the steering wheel. Its role is to maintain continuous electrical connection for the driver's airbag (SRS), horn, and steering wheel controls as the steering wheel turns .

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN .

OEM Cross Reference: This part replaces OEM numbers including MN162064, 8619A018, MN162040 .

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Direct Fit for Mitsubishi Models
Based on compatibility research from official parts catalogs and supplier listings, this clock spring fits the following vehicles :

Make Model Years Chassis / Notes
Mitsubishi Grandis 2003–2010 NA_W chassis, 2.0L DI-D / 2.4L MIVEC
Mitsubishi Lancer / Lancer Sportback 2004–2017 CS_A, CT_A, CJ, CF chassis
Mitsubishi Outlander 2004–2013 CU_W, CW_W, ZG, ZH chassis
Mitsubishi Eclipse 2006–2012 4G chassis
Mitsubishi Galant 2004–2012
Mitsubishi Endeavor 2004–2011

Technical Specifications

  • 🔹 Brand: ROYUAN – Premium aftermarket manufacturer
  • 🔹 Function: Clock spring / Airbag spiral cable / Airbag sensor spring
  • 🔹 Placement on Vehicle: Steering column, behind steering wheel
  • 🔹 Material: High-strength copper ribbon, flame-retardant ABS plastic housing
  • 🔹 OE Numbers: MN162064, 8619A018, MN162040

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

  • ✅ Airbag (SRS) system activation – critical safety component
  • ✅ Horn operation
  • ✅ Steering wheel audio controls (if equipped)
  • ✅ Cruise control switches (if equipped)

Signs of Failure
A faulty clock spring may exhibit the following symptoms:

  • ⚠️ Airbag warning light illuminates on dashboard
  • 📢 Horn does not function
  • 🎛️ Steering wheel-mounted controls become unresponsive
  • 🔊 Clicking or grinding noise when turning the steering wheel
  • 🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge. Refer to GROUP 52B Service Precautions before working on airbag components .

Steering Wheel Alignment: Set the steering wheel at the straight-ahead position before removal .

Centering: The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable. After installation, align the clock spring mating marks .

Installation Steps: Remove the steering wheel and airbag module, disconnect the clock spring harness connector and column switch connectors, install the new clock spring, torque screws to specification, reconnect all electrical connections .

Verification: Always verify that the replacement part matches your original in connector type and pin configuration. For 100% confirmation, contact us with your VIN .

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly .

Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
