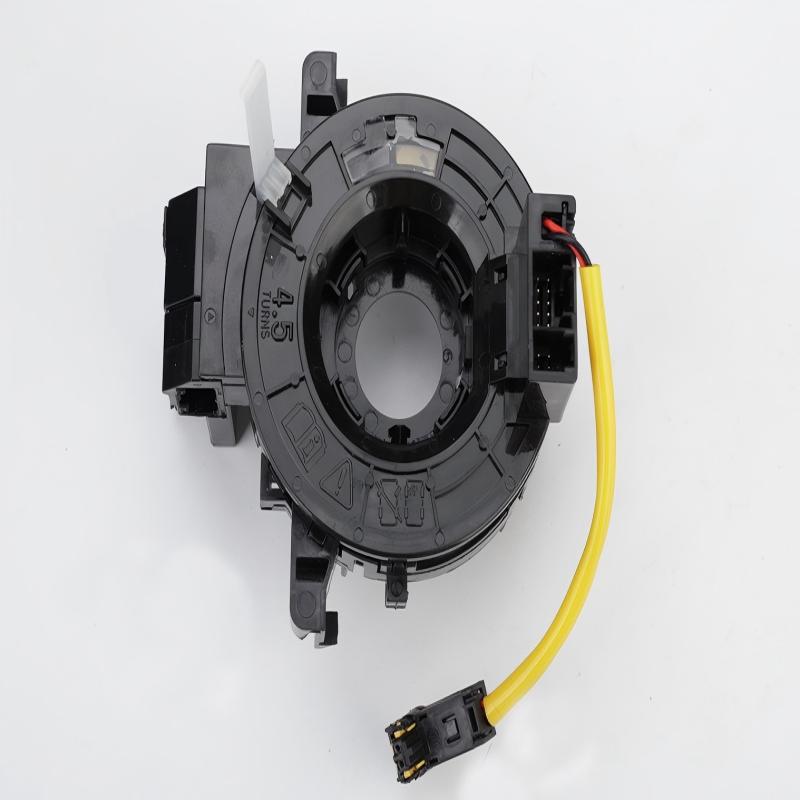

Clock Spring 83196-AJ000 for Subaru Legacy Outback 2009-2014 – Airbag Spiral Cable

Direct replacement clock spring (airbag spiral cable / steering roll connector) for Subaru Legacy / Liberty / Outback (2009-2014, BM/BR chassis). Replaces OEM #83196-AJ000, 83196AJ001, 86196-AJ000, 83116AJ000. Essential component for driver airbag (SRS), horn, radio controls, and cruise control. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Clock Spring 83196-AJ000 for Subaru Legacy / Outback (2009-2014)

🔍 IMPORTANT – PLEASE READ

This clock spring (also known as airbag spiral cable or steering roll connector) is a critical safety component located behind the steering wheel. Its role is to maintain continuous electrical connection for the driver's airbag (SRS), horn, radio volume and station selections, and cruise controls as the steering wheel turns . The clock spring is a coil that retracts and expands inside its housing to maintain electrical continuity for all components on the driver's airbag .

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN .

OEM Cross Reference: This part replaces OEM numbers including 83196-AJ000, 83196AJ001, 86196-AJ000, 83116AJ000 .

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Direct Fit for Subaru Models
Based on compatibility research, this clock spring fits the following vehicles:

Make	Model	Years	Chassis / Notes

Subaru Legacy / Liberty (Sedan) 2009–2014 BM chassis, 5th generation, 2.5GT / 2.5i variants Subaru Legacy / Liberty (Wagon) 2009–2014 BR chassis, 5th generation, B14 platform Subaru Outback (Wagon) 2009–2014 BR chassis, 4th generation, raised suspension variant

Technical Specifications

🔹 Brand: ROYUAN – Premium aftermarket manufacturer
🔹 Function: Clock spring / Airbag spiral cable / Steering roll connector
🔹 Placement on Vehicle: Steering column, behind steering wheel
🔹 Weight: Approximately 0.155–0.162 kg
🔹 Material: High-strength copper ribbon, flame-retardant ABS plastic housing
🔹 OE Numbers: 83196-AJ000, 83196AJ001, 86196-AJ000, 83116AJ000

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel audio controls (volume, station, mode)
✅ Cruise control switches

Signs of Failure
A faulty clock spring may exhibit the following symptoms:

⚠️ Airbag warning light illuminates on dashboard
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🔊 Clicking or grinding noise when turning the steering wheel
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable.

Sensor Transfer Note: This clock spring may require you to unclip and attach your old steering angle sensor to the new unit . If your vehicle has a separate steering angle sensor, please transfer it from your original clock spring.

Verification: Always verify that the replacement part matches your original in connector type and pin configuration. For 100% confirmation, contact us with your VIN .

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly .

Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.

Quality You Can Trust

🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
🔹 Centering Clip Included: Do NOT remove until fully installed
🔹 Warranty: 1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
