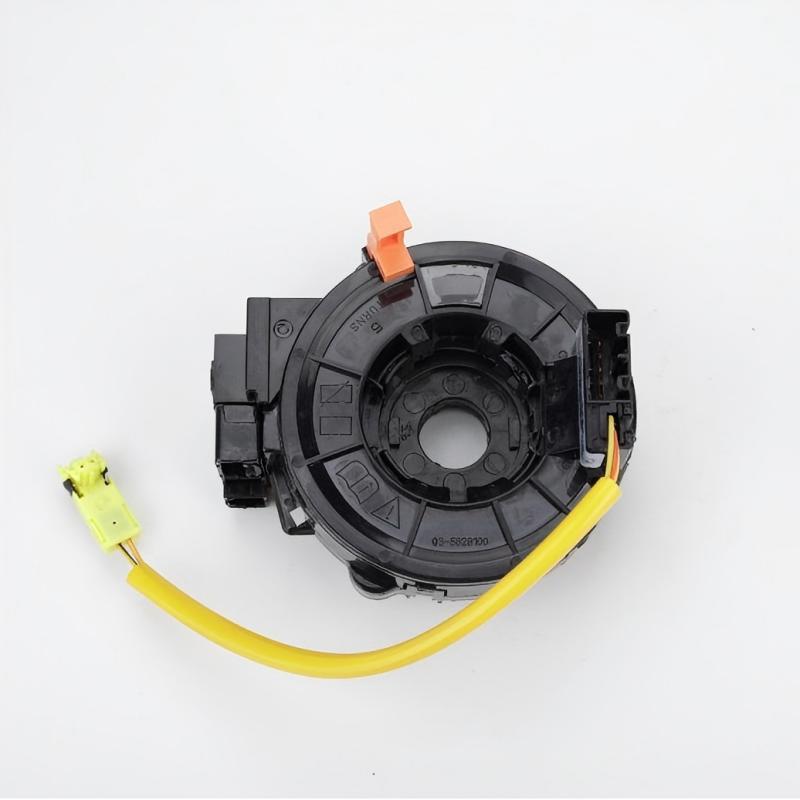

Clock Spring G3-5828100 for BYD G3 2010-2015 L3 2010-2014 – Airbag Spiral Cable

Direct replacement clock spring (airbag spiral cable) for BYD G3 (2010-2015) and L3 (2010-2014). Replaces OEM #G3-5828100, 5A-5828100, 5A-5828100A. Essential component for driver airbag (SRS), horn, and steering wheel controls. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Clock Spring G3-5828100 for BYD G3 / L3

🔍 IMPORTANT – PLEASE READ

This clock spring (airbag spiral cable) is a critical safety component located behind the steering wheel. Its role is to maintain continuous electrical connection for the driver's airbag (SRS), horn, and steering wheel controls as the steering wheel turns .

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN .

OEM Cross Reference: This part is available under multiple OEM numbers including G3-5828100, 5A-5828100, 5A-5828100A .

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Direct Fit for BYD Models
Based on compatibility research from multiple suppliers, this clock spring fits the following vehicles:

Make Model Years Notes
BYD (比亚迪) G3 (Sedan) 2010–2015 1.5L / 1.8L, with multifunction steering wheel
BYD (比亚迪) L3 (Sedan) 2010–2014 1.5L / 1.8L, with multifunction steering wheel
BYD (比亚迪) F3 / F3DM (Lower config) 2005–2015 May be compatible – verify with original part

Technical Specifications

  • 🔹 Brand: ROYUAN – Premium aftermarket manufacturer
  • 🔹 Function: Clock spring / Airbag spiral cable / Squib sensor
  • 🔹 Placement on Vehicle: Steering column, behind steering wheel
  • 🔹 Material: High-strength copper ribbon, flame-retardant ABS plastic housing
  • 🔹 OE Numbers: G3-5828100, 5A-5828100, 5A-5828100A
  • 🔹 Related OE Numbers: F3-5820800 (for high configuration F3)

Key Functions
The clock spring maintains continuous electrical connection between the steering wheel and vehicle systems, enabling:

  • ✅ Airbag (SRS) system activation – critical safety component
  • ✅ Horn operation
  • ✅ Steering wheel audio controls (volume, station, mode)
  • ✅ Cruise control switches

Signs of Failure
A faulty clock spring may exhibit the following symptoms:

  • ⚠️ Airbag warning light illuminates on dashboard
  • 📢 Horn does not function
  • 🎛️ Steering wheel-mounted controls become unresponsive
  • 🔊 Clicking or grinding noise when turning the steering wheel
  • 🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 5 minutes for the airbag system to discharge. Refer to service precautions before working on airbag components .

Steering Wheel Alignment: Set the steering wheel at the straight-ahead position before removal .

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Rotating the clock spring without the clip can damage the internal ribbon cable. Turn the clock spring rotor to the end stop in one direction, then rotate back approximately 2.5 turns to the center position .

Installation Steps: Remove the steering wheel and airbag module, disconnect the old clock spring, install the new unit, reconnect all electrical connections .

Verification: Always verify that the replacement part matches your original in connector type and pin configuration. For 100% confirmation, contact us with your VIN .

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly . If the light remains on, diagnostic scanning may be required .

Professional Installation: Due to the critical safety nature of this component, installation by a qualified technician is strongly recommended.

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
