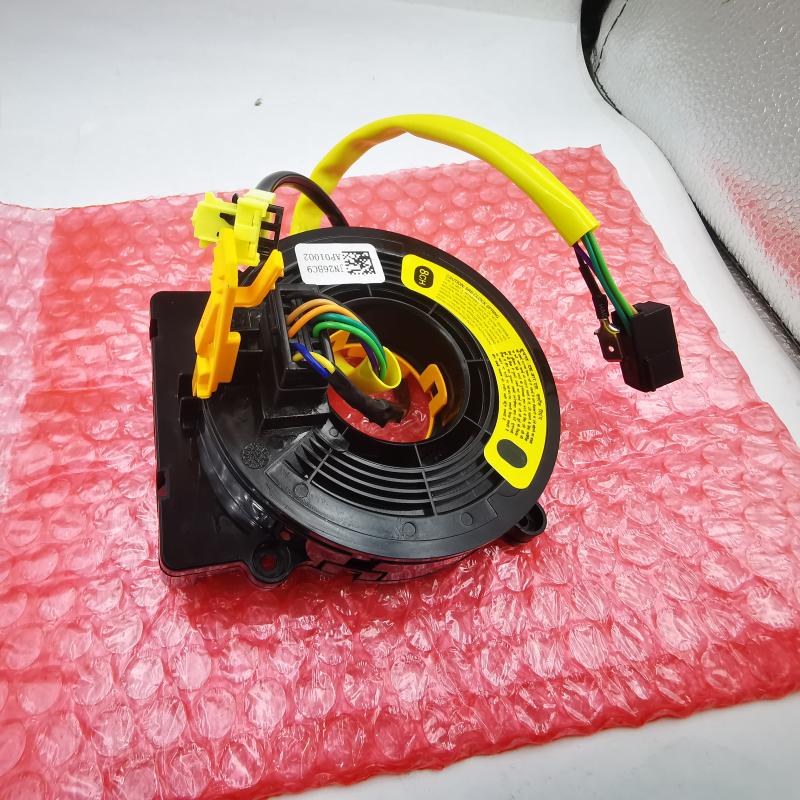

Clock Spring 1105DAA00771N for Mahindra Scorpio – Steering Wheel Airbag Spiral Cable

Direct replacement steering wheel clock spring (airbag spiral cable / squib) for Mahindra Scorpio. Replaces OEM #1105DAA00771N. 8 Channel / 6 Pole configuration. Essential for driver airbag (SRS), horn, radio controls, and cruise control. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – Steering Wheel Clock Spring 1105DAA00771N for Mahindra Scorpio

🔍 IMPORTANT – PLEASE READ

This clock spring (airbag spiral cable / squib) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection for the driver's airbag (SRS), horn, radio controls, and cruise control as the steering wheel turns. The part is designed as an 8 Channel / 6 Pole unit for specific vehicle configurations.

⚠️ CRITICAL: Always visually compare the connector shape, pin configuration, and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Cross Reference: 1105DAA00771N (other related Minda part numbers may apply).

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Compatible Vehicles

Make	Model	Years	Notes
Mahindra	Scorpio	2003–	Mid-size SUV, 8 channel airbag configuration, verify fitment
Tata	(Verify)	–	User-provided – NOT verified. Must compare with original part.

Technical Specifications

Brand: ROYUAN – Premium aftermarket manufacturer
Function: Steering wheel clock spring / Airbag spiral cable / Squib sensor
Placement: Steering column, behind steering wheel
Material: High-strength copper ribbon, flame-retardant ABS plastic housing
Color: Black
Features: Lightweight, 8 Channel / 6 Pole configuration
OE Number: 1105DAA00771N

Key Functions
✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel audio controls (volume, station, mode)
✅ Cruise control switches

Signs of Failure
⚠️ Airbag warning light illuminates on dashboard (SRS warning)
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🔊 Clicking or grinding noise when turning the steering wheel
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 30 seconds for the airbag system capacitor to discharge. The clockspring is secured by two screws onto the multi-function switch mounting housing near the top of the steering column.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. If recentering is required, turn the rotor clockwise to the stop, then rotate back approximately 2.5 turns to the center position.

Sensor Note: This part may include an integrated steering angle sensor. If your original unit has a separate sensor, transfer it to the new part.

Verification: This part is confirmed for Mahindra Scorpio but not verified for Tata models. Always compare connectors/pins with original. Provide VIN for confirmation.

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly.

Professional Installation: Strongly recommended.

Quality You Can Trust

High-purity copper ribbon – stable, interference-free signal
Flame-retardant housing – meets safety standards
300,000-cycle endurance test (-40°C to +85°C)
Centering clip included – do not remove early
1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), installation guide available on request.
