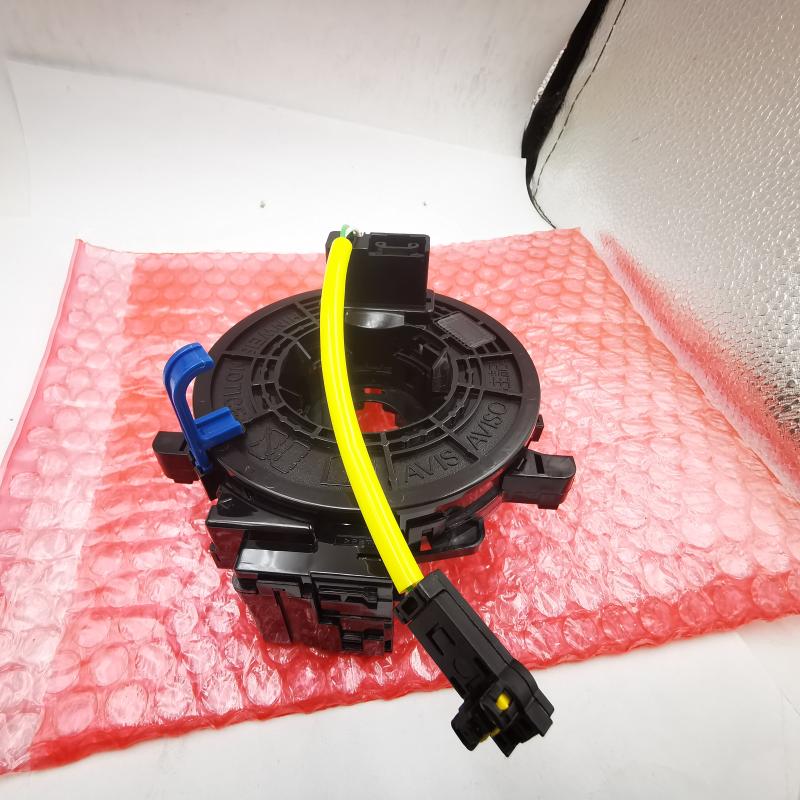

Clock Spring 1105DAA02071N 10 Pin for Mahindra Scorpio XUV500 – Steering Wheel Airbag Spiral Cable

Direct replacement 10-pin steering wheel clock spring (airbag spiral cable) for Mahindra Scorpio, XUV500, and compatible Tata 10CH models. Replaces OEM #1105DAA02071N, 1105DAA00811N, S1105D000151N. Essential for driver airbag (SRS), horn, radio controls, and cruise control. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test (-40°C to +85°C). Includes centering clip. CE/ISO9001 certified. 1-year warranty. Verify connector compatibility before ordering.

Product Description – 10-Pin Steering Wheel Clock Spring 1105DAA02071N for Mahindra Scorpio / XUV500 / Tata 10CH

🔍 IMPORTANT – PLEASE READ

This 10-pin steering wheel clock spring (airbag spiral cable / squib) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection for the driver's airbag (SRS), horn, radio controls, and cruise control as the steering wheel turns.

⚠️ CRITICAL: This part features a 10-pin connector configuration. Always visually compare the connector shape, pin count (10 pins), and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN.

OEM Cross Reference: 1105DAA02071N, 1105DAA00811N, S1105D000151N.

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Compatible Vehicles

Make	Model	Years	Notes
Mahindra	Scorpio	2002–	Mid-size SUV, 10-pin configuration
Mahindra	XUV500	2011–	Confirmed by parts catalog
Tata	10CH	—	User-provided – verify with original part

Technical Specifications

Brand: ROYUAN – Premium aftermarket manufacturer
Function: Steering wheel clock spring / Airbag spiral cable / Squib sensor
Pin Configuration: 10-pin connector
Placement: Steering column, behind steering wheel
Weight: Approximately 0.150 kg [reference:1]
Material: High-strength copper ribbon, flame-retardant ABS plastic housing
OE Numbers: 1105DAA02071N, 1105DAA00811N, S1105D000151N

Key Functions
✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel audio controls (volume, station, mode)
✅ Cruise control switches

Signs of Failure
⚠️ Airbag warning light illuminates on dashboard (SRS warning)
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🔊 Clicking or grinding noise when turning the steering wheel
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 30 seconds for the airbag system capacitor to discharge.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. If recentering is required, turn the rotor clockwise to the stop, then rotate back approximately 2.5 turns to the center position.

Pin Count Verification: This clock spring has a 10-pin connector configuration. Please count the pins on your original connector before ordering to ensure compatibility.

Verification: This part is confirmed for Mahindra Scorpio and XUV500. Tata 10CH compatibility is user-provided and not verified – always compare connectors/pins with original. Provide VIN for confirmation.

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly.

Professional Installation: Strongly recommended.

Quality You Can Trust

High-purity copper ribbon – stable, interference-free signal
Flame-retardant housing – meets safety standards
300,000-cycle endurance test (-40°C to +85°C)
Centering clip included – do not remove early
1-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), installation guide available on request.
