Which vehicles is this clock spring compatible with?

It is designed for Jeep Grand Cherokee (2011–2013, WK2 chassis).

What OEM number does this product replace?

It directly replaces OEM part number 10008742. It may also be known as 870C.

What are the symptoms of a bad clock spring?

Common signs include an illuminated airbag warning light, non-functioning horn, unresponsive steering wheel buttons, or a clicking noise when turning the wheel.

Can I install it myself?

Yes, if you have basic mechanical skills. Always disconnect the battery first and ensure the front wheels are straight. The included centering clip helps keep the spring aligned during installation. If unsure, consult a professional.

Does it work in extreme temperatures?

Yes, it is tested for reliable operation from -40°C to +85°C.

Yes, we offer a 1-year warranty against manufacturing defects.

ꁆ ꁇ

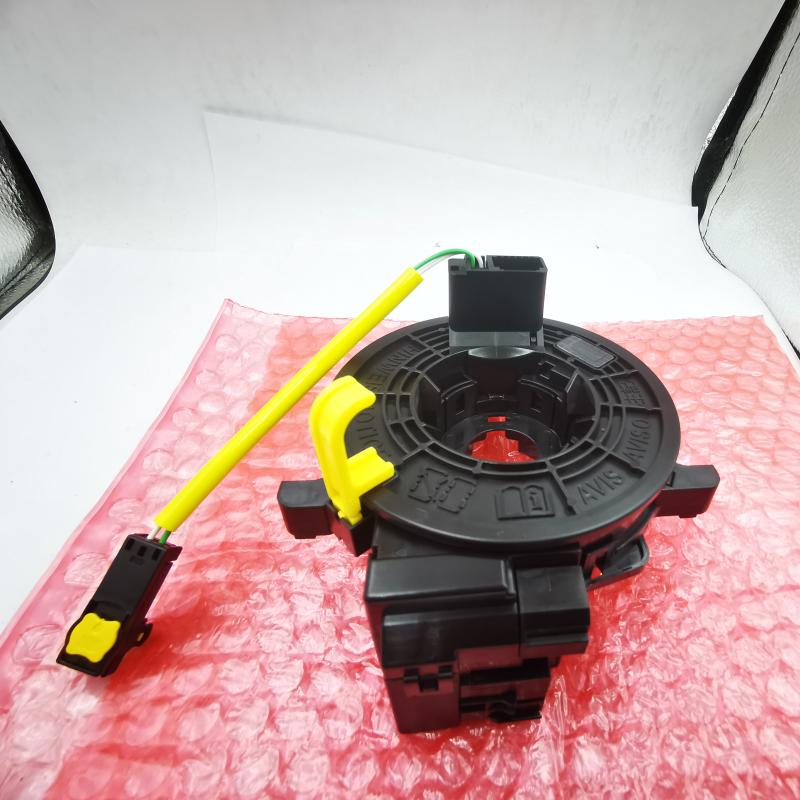

Clock Spring 37480-74P20 16 Pin for Suzuki Swift Vitara S-Cross Ignis Baleno 2017-2022 – Steering Wheel Airbag Spiral Cable

Direct replacement 16-pin steering wheel clock spring (airbag spiral cable) for Suzuki Swift, Vitara, S-Cross, Ignis, Baleno (2017-2022). Replaces OEM #37480-74P20. Essential for driver airbag (SRS), horn, radio controls, and cruise control. High-strength copper ribbon, flame-retardant housing. 300,000-cycle test. Includes centering clip. CE/ISO9001 certified. 2-year warranty. Verify 16-pin compatibility before ordering.

Product Description – 16-Pin Steering Wheel Clock Spring 37480-74P20 for Suzuki 2017-2022 Models

🔍 IMPORTANT – PLEASE READ

This 16-pin steering wheel clock spring (airbag spiral cable / squib) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection for the driver's airbag (SRS), horn, radio controls, and cruise control as the steering wheel turns.

⚠️ CRITICAL: This part features a 16-pin connector configuration. This OEM part number (37480-74P20) has NOT been verified in our catalogs. Always visually compare the connector shape, pin count (16 pins), and appearance with your original part before ordering. For 100% confirmation, please contact us with your VIN or clear photos of your original clock spring.

OEM Cross Reference (Unverified): 37480-74P20.

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Potential Compatibility (User-Provided)
Based on the part number pattern and vehicle generation, this 16-pin clock spring is intended for the following Suzuki models. Customers MUST verify with their original part.

Model	Generation	Years	Notes
Swift / Swift Sport	4th generation (A2L/A2M/A6L)	2017–2024	With multifunction steering wheel
Vitara / S-Cross	FY series	2015–2022	High-spec models
Ignis	FF series	2016–2022	Verify with original part
Baleno	WB series	2016–2021	Verify with original part

Technical Specifications

Brand: ROYUAN – Premium aftermarket manufacturer
Function: Steering wheel clock spring / Airbag spiral cable / Squib sensor
Pin Configuration: 16-pin connector (for vehicles with integrated steering controls & angle sensor)
Placement: Steering column, behind steering wheel
Material: High-strength copper ribbon, flame-retardant ABS plastic housing
OE Number (Reference): 37480-74P20

Key Functions
✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel audio controls (volume, station, mode)
✅ Cruise control switches
✅ ESP / Stability control system (via integrated angle sensor)

Signs of Failure
⚠️ Airbag warning light illuminates on dashboard (SRS warning)
📢 Horn does not function
🎛️ Steering wheel-mounted controls become unresponsive
🔊 Clicking or grinding noise when turning the steering wheel
🚨 ESP/ESC warning light on – indicates angle sensor malfunction
🚨 In critical cases, driver airbag may not deploy in a collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect the battery negative terminal and wait at least 30 seconds for the airbag system capacitor to discharge.

Centering: Ensure front wheels are perfectly straight. The new clock spring comes with a centering clip – do NOT remove this clip until the clock spring is fully installed and the steering wheel is in position. Turn the rotor clockwise to the stop, then rotate back approximately 2.75 turns to the center position.

Pin Count Verification: This clock spring has a 16-pin connector configuration. Please count the pins on your original connector before ordering to ensure compatibility.

Sensor Note: This part may include an integrated steering angle sensor. If your original unit has a separate sensor, transfer it to the new part.

Verification: This part number is NOT verified. Always compare connectors/pins with original. Provide VIN or clear photos of your original clock spring for confirmation.

Post-Installation: After installation, verify horn function, steering wheel controls, and ensure the airbag warning light extinguishes correctly.

Professional Installation: Strongly recommended.

Quality You Can Trust

High-purity copper ribbon – stable, interference-free signal
Flame-retardant housing – meets safety standards
300,000-cycle endurance test (-40°C to +85°C)
Centering clip included – do not remove early
2-year warranty

Package Includes: 1 x Clock Spring Assembly (with centering clip), installation guide available on request.
