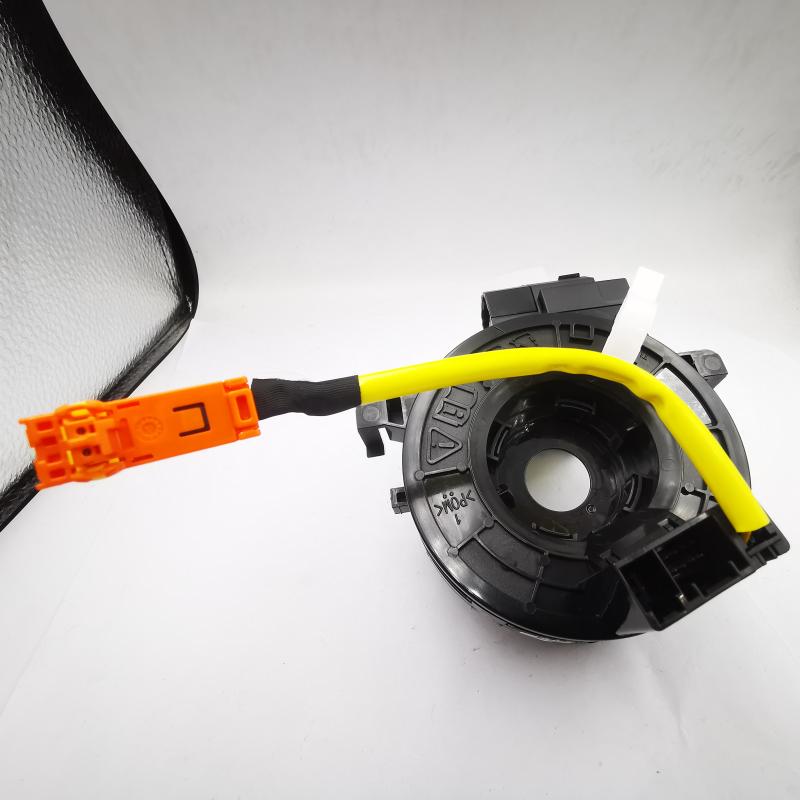

ROYUAN Clock Spring with Angle Sensor 89245-0K010 for Toyota Hilux SR/SR5 (2005-2015) – Airbag Spiral Cable & Steering Angle Sensor Combo, Single Connector

ROYUAN direct replacement clock spring with integrated steering angle sensor for Toyota Hilux SR/SR5 (2005-2015). Replaces OEM #89245-0K010. Essential for airbag, horn, steering controls & ESC. Single-connector design. High-strength copper ribbon, flame-retardant housing. 300K-cycle tested (-40°C to +85°C). Centering clip, CE/ISO9001, 1-yr warranty. Verify single-plug connector; not compatible with dual-plug variants.

ROYUAN

Premium Aftermarket Auto Parts – Safety & Reliability

Product Description – ROYUAN Clock Spring with Angle Sensor 89245-0K010 for Toyota Hilux SR/SR5 (2005-2015), Single Connector

🔍 IMPORTANT – PLEASE READ

This ROYUAN clock spring is a critical safety and vehicle dynamics component. It combines a clock spring (airbag spiral cable) and a steering angle sensor in one integrated unit. It maintains continuous electrical connection for the driver's airbag (SRS), horn, and steering wheel controls, while simultaneously providing steering angle data to the vehicle's ESC/traction control system.

⚠️ CRITICAL: This part number has NOT been verified in manufacturer catalogs. Fitment is not guaranteed without physical comparison. Always visually compare the connector shape, number of pins, and overall appearance with your original part before ordering. This is a single-connector (single-plug) version. If your vehicle has a dual-plug clock spring, this part will NOT fit. For 100% confirmation, contact us with your VIN or clear photos of your original clock spring.

OEM Reference (Unverified): 89245-0K010.

Return Policy: This electrical component is not returnable once installed. Please ensure compatibility before purchase.

Compatible Vehicles

Make Model Years Notes
Toyota Hilux SR / SR5 (AN10/AN20/AN30, KUN10/KUN15/KUN25/KUN35) 2005–2015 Single-connector clock spring with angle sensor. Fits SR and SR5 grades with ESC/traction control. Verify plug type before ordering.
Toyota (Global) Hilux Vigo / Hilux Revo (select markets, single-plug) 2005–2015 Australia, Southeast Asia, Middle East, South America, Africa. Same single-connector unit. Verify connector and angle sensor requirement.

Technical Specifications

  • Brand: ROYUAN – Premium aftermarket manufacturer
  • Function: Clock spring (airbag spiral cable) + Steering angle sensor (combo unit)
  • Placement: Steering column, behind steering wheel
  • Connector Type: Single plug (single connector) – please verify your original part has only one connector
  • Material: High-strength copper ribbon, flame-retardant ABS plastic housing
  • OE Number (Reference): 89245-0K010

Key Functions
✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel controls (audio, phone, cruise)
✅ Steering angle data output for ESC / traction control / stability system

Signs of Failure
⚠️ Airbag/SRS warning light on dashboard
📢 Horn does not function
🎛️ Steering wheel controls unresponsive
🔄 ESC/TRAC/VSC warning light illuminated (steering angle sensor fault)
🔊 Clicking/scratching noise when turning
🚨 Driver airbag may not deploy in collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect battery negative terminal and wait at least 90 seconds for airbag discharge. Follow Toyota safety procedures.

Centering & Angle Sensor Calibration: Keep front wheels straight. Do NOT remove centering clip until fully installed. After installation, the steering angle sensor must be calibrated using a diagnostic scan tool, otherwise ESC/VSC warning lights may remain on.

Verification: Compare connectors/pins with original — single-plug version only. Provide VIN or photos for confirmation.

Post-Installation: Test horn, steering controls, ensure all warning lights are off, and perform steering angle sensor zero-point calibration.

Professional Installation: Strongly recommended due to airbag risks and calibration requirements.

Quality You Can Trust

  • High-purity copper ribbon – stable signal for airbag and sensor data
  • Flame-retardant housing – safety certified
  • 300,000-cycle endurance test (-40 °C to +85 °C)
  • Centering clip included – do not remove early
  • 1-year warranty

Package Includes: 1 x ROYUAN Clock Spring with Angle Sensor Assembly (with centering clip), installation guide on request.
