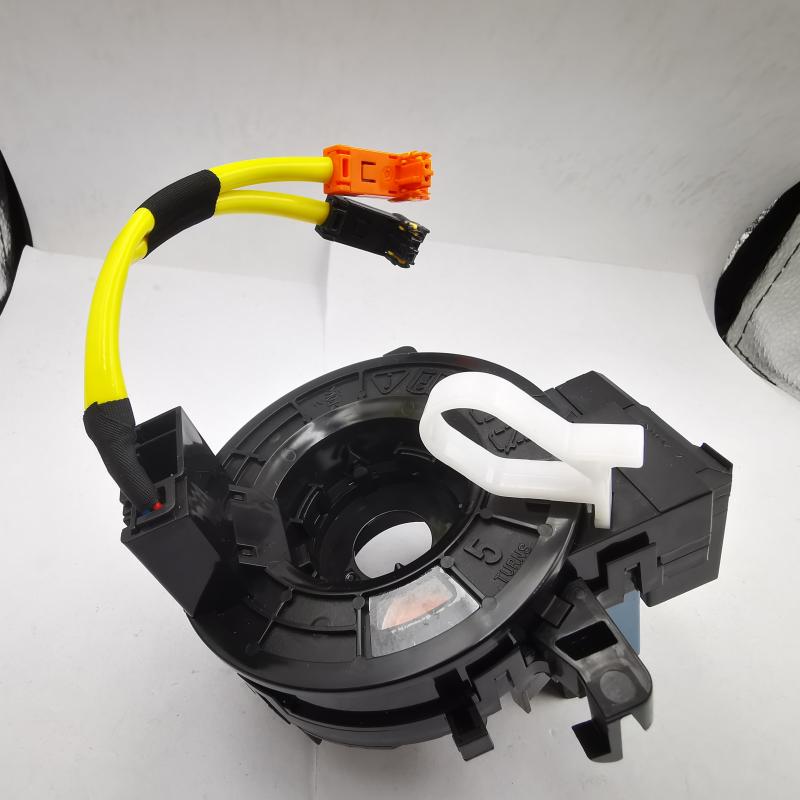

ROYUAN Clock Spring with Angle Sensor 84307-47020 / 89245-74010 for Toyota Camry Corolla RAV4 etc. (2006-2018) – Airbag Spiral Cable, Two Plug

ROYUAN replacement clock spring with integrated steering angle sensor for multiple Toyota models (2006-2018). Replaces OEM #84307-47020, 89245-74010. Two-plug design. Essential for airbag, horn, steering controls & ESC. High-strength copper ribbon, flame-retardant housing. 300K-cycle test (-40°C to +85°C). Centering clip, CE/ISO9001, 1-yr warranty. Verify two-plug connector & pin count; not compatible with single-plug variants.

ROYUAN

Premium Aftermarket Auto Parts – Safety & Reliability

Product Description – ROYUAN Clock Spring with Angle Sensor 84307-47020 / 89245-74010 for Toyota, Two Plug

🔍 IMPORTANT – PLEASE READ

This ROYUAN clock spring combines an airbag spiral cable and a steering angle sensor in one unit. It maintains electrical connection for the driver's airbag (SRS), horn, and steering wheel controls, while providing steering angle data for ESC/VSC systems.

⚠️ CRITICAL: Part numbers NOT verified in manufacturer catalogs. Fitment not guaranteed without physical comparison. This is a two-plug (two-connector) version. If your vehicle has a single-plug clock spring, this part will NOT fit. Always visually compare connector shapes, pin configuration, and appearance with your original part. For 100% confirmation, send VIN or clear photos of your original clock spring.

OEM References (Unverified): 84307-47020, 89245-74010.

Return Policy: This electrical component is not returnable once installed. Ensure compatibility before purchase.

Compatible Vehicles (Two-Plug with Angle Sensor)

Make Model / Chassis Approx. Years Notes
Toyota Aurion (ACV40, GSV40) 2006-2012 V6 sedan, mostly Oceania/Asia. Verify two-plug connector.
Toyota Avalon 2005-2012 North America full-size sedan. Verify ESC option.
Toyota Camry (ACV40, ACV41, AHV41, GSV40) 2006-2012 Global mid-size sedan. Two-plug typical for VSC-equipped grades.
Toyota Corolla (ZRE141, ZRE142, ZZE141, ZZE142) 2006-2012 Including Axio. Two-plug version with angle sensor.
Toyota Highlander / Kluger 2007-2013 SUV, verify two-plug connector.
Toyota Innova (TGN40, TGN41) / Kijang 2005-2014 MPV, commonly equipped with angle sensor for VSC.
Toyota Land Cruiser (select variants) 2007-2015 May also fit some J150/J200. Verify connector.
Toyota Matrix 2009-2013 Corolla-based hatchback. Two-plug with ESC.
Toyota RAV4 (ACA32, ACA33, ACA37) 2006-2012 Compact SUV, two-plug angle sensor variant.
Toyota Sienta (NSP170) 2015-2022 Mini MPV. Verify two-plug and angle sensor.
Toyota Tacoma 2005-2015 North American pickup. Two-plug with VSC.
Toyota Tundra 2007-2013 Full-size pickup. Two-plug variant.
Toyota Venza (AGV10, AGV15, GGV10, GGV15) 2008-2015 Crossover wagon. Two-plug with angle sensor.
Toyota Yaris (NCP150, NCP91, NSP151) 2005-2013 Subcompact. Verify two-plug and ESC option.

Technical Specifications

  • Brand: ROYUAN – Premium aftermarket manufacturer
  • Function: Clock spring + Steering angle sensor (combo unit)
  • Placement: Steering column, behind steering wheel
  • Connector Type: Two plugs (two connectors) – do not order if your original is single-plug
  • Material: High-strength copper ribbon, flame-retardant ABS plastic housing
  • OE Numbers (Reference): 84307-47020, 89245-74010

Key Functions
✅ Airbag (SRS) system activation – critical safety component
✅ Horn operation
✅ Steering wheel controls
✅ Steering angle data for ESC / VSC / traction control

Signs of Failure
⚠️ Airbag / SRS warning light
📢 Horn not working
🎛️ Steering controls unresponsive
🔄 ESC / VSC warning light (angle sensor fault)
🔊 Clicking / scratching noise when turning
🚨 Driver airbag may not deploy in collision

⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS

Before Installation: Disconnect battery negative terminal and wait at least 90 seconds for airbag discharge.

Centering: Keep front wheels straight. Do NOT remove centering clip until fully installed. After installation, steering angle sensor must be calibrated using a diagnostic scan tool, otherwise ESC/VSC lights will remain on.

Verification: Confirm two-plug connector. Provide VIN or photos for 100% confirmation.

Post-Installation: Test horn, steering controls, ensure all warning lights are off, and perform angle sensor zero-point calibration.

Professional Installation: Strongly recommended.

Quality You Can Trust

  • High-purity copper ribbon – stable signal for airbag and sensor data
  • Flame-retardant housing – safety certified
  • 300,000-cycle endurance test (-40 °C to +85 °C)
  • Centering clip included – do not remove early
  • 1-year warranty

Package Includes: 1 x ROYUAN Clock Spring with Angle Sensor Assembly (with centering clip), installation guide on request.
