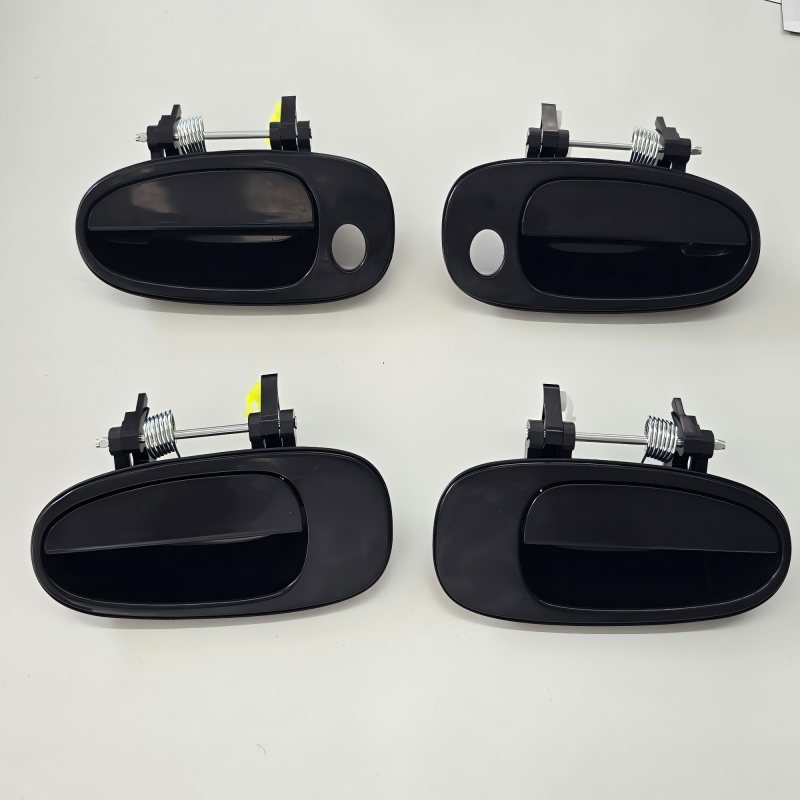

Toyota Corolla (E100) Exterior Door Handle – Front & Rear Left/Right (1992–1997) | OEM 69220-12160 / 69210-12160 / 69230-12140 / 69240-12140 | Black
As a professional auto parts wholesaler located in Ruian, China's Auto Parts City, we supply the ROYUAN exterior body-side door handle for the seventh-generation Toyota Corolla (E100 chassis, 1992–1997). Unlike universal handles, this product is engineered as four distinct position-specific parts, each with its own OEM number and precise net weight: FL = 69220-12160 (123.5g), FR = 69210-12160 (122.8g), RL = 69230-12140 (116.1g), RR = 69240-12140 (117.1g). Finished in factory-matched Black, these handles restore the original exterior appearance of one of the most widely exported Toyota platforms worldwide.
Each Door Position Is a Unique Part — Never Interchange
⬅️ FRONT LEFT (Driver Side LHD)
69220-12160
⚖️ Net Weight: 123.5g
➡️ FRONT RIGHT (Passenger Side LHD)
69210-12160
⚖️ Net Weight: 122.8g
⬅️ REAR LEFT
69230-12140
⚖️ Net Weight: 116.1g
➡️ REAR RIGHT
69240-12140
⚖️ Net Weight: 117.1g
⚠️ EXTERIOR HANDLE ONLY. All four positions have different mounting geometry, linkage angles, and weights. Verify position AND OEM number before ordering.
Product Specifications
| Parameter | Specification |
|---|---|
| Application Position | 🚗 Exterior Body-Side Door Handle ONLY |
| Color / Finish | ⬛ Black (Factory-matched textured finish) |
| Vehicle Fitment | Toyota Corolla E100 (1992–1997) |
| Side Configuration | ↔️ 4 Positions Sold Separately (FL / FR / RL / RR) |
| Net Weight (per position) | FL: 123.5g | FR: 122.8g | RL: 116.1g | RR: 117.1g |
| Quality Standard | ISO9001 certified. UV-resistant coating. Cycle tested ≥10,000 pulls. |
🌍 Toyota Corolla E100: The Most Produced Car Platform in History
Japan (JDM)
Corolla / Sprinter
North America
Corolla / Geo Prizm
Europe / Oceania
Corolla Sedan/Wagon
SE Asia / LATAM
Corolla / Tercel
💡 The E100 Corolla was produced in over 15 countries with localized nameplates. All share identical exterior door handle mounting points. This single SKU family serves the highest-volume Toyota aftermarket segment globally.
Compatible Vehicle Applications
| Model / Nameplate | Year Range | Body Style / Notes |
|---|---|---|
| Toyota Corolla (E100) | 1992 – 1997 | Sedan, hatchback, wagon, coupe |
| Toyota Sprinter (E100) | 1992 – 1997 | JDM twin model, same body panels |
| Geo Prizm / Chevrolet Prizm | 1993 – 1997 | GM badge-engineered E100 (USA) |
| Toyota Corolla (E110 early overlap) | 1995 – 1997 | Select markets with extended E100 production |
⚠️ NOT compatible with E110 Corolla (1998+) or E90 Corolla (pre-1992). Verify by VIN or original part number before ordering.
Frequently Asked Questions
Q1: Why do all four positions have different weights?
A: Each exterior handle has a unique internal mechanism: front handles include the key cylinder bore and lock actuator linkage (heavier at ~123g), while rear handles omit the keyway (lighter at ~116g). The slight FL vs. FR and RL vs. RR weight differences reflect mirror-asymmetric casting geometry. These weight values serve as an additional authenticity verification checkpoint.
Q2: Can I use a front handle on a rear door or vice versa?
A: Absolutely not. Front handles have a key cylinder opening and different linkage arm length. Rear handles lack the keyway and have a shorter pivot bracket. They are physically non-interchangeable.
Q3: Is this handle painted black or molded in black?
A: This handle features a factory-matched textured black coating applied over the base material, replicating the original E100 exterior trim finish. It is UV-resistant and designed to withstand outdoor exposure without fading or peeling.
Q4: Does this fit both sedan and wagon body styles?
A: Yes. The E100 Corolla sedan, hatchback, wagon, and coupe all share the same exterior door handle mounting specification across all four positions.
Contact Our Wholesale Team
Need Full 4-Position Sets or Mixed Quantities? Just Ask!
Example: "Corolla E100 handle, FL×200, FR×200, RL×100, RR×100, ship to Thailand."
