ROYUAN Tailgate Handle for Toyota Hilux Revo 2015-2018 - OEM 69090-0K110 | W/ Keyhole & Camera Hole Dual Port | Chrome & Black | GW 608.6g | Ruian Wholesaler
📍
Ruian Auto Parts City
🤝
Since 2011
📱
Global Exporter
ROYUAN AUTO PARTS
Professional Auto Parts Wholesaler & Exporter
Located in China's Auto Parts City | Direct Factory Sourcing | Competitive Wholesale Pricing

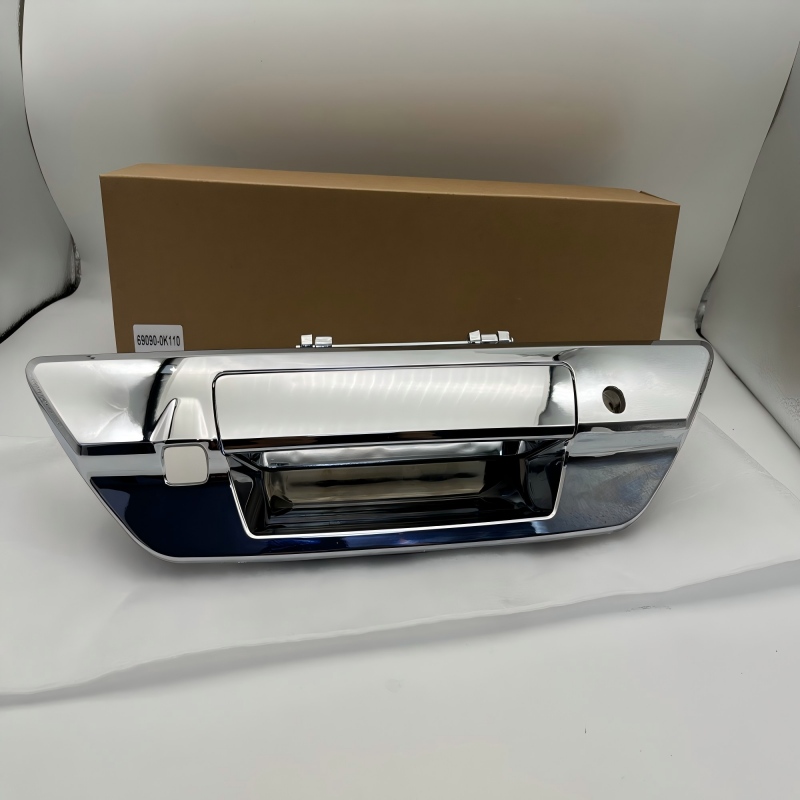

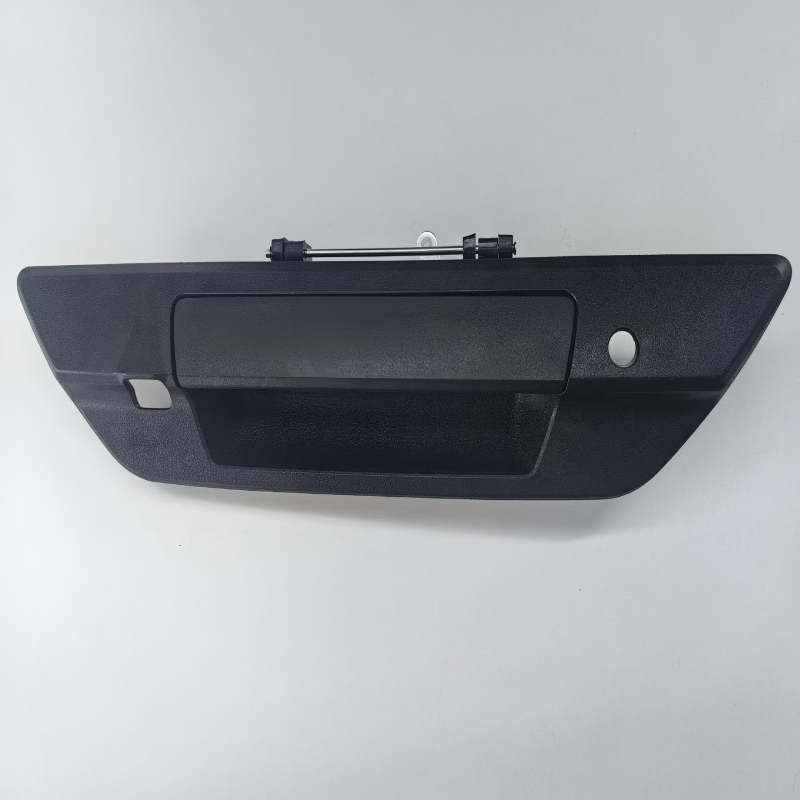

Toyota Hilux Revo (2015–2018) Tailgate Outer Handle WITH Keyhole & Camera Hole (Dual Port) – Rear Gate Release | OEM 69090-0K110 | Chrome & Black | GW 608.6g
As a professional auto parts wholesaler located in Ruian, China's Auto Parts City, we supply the ROYUAN rear tailgate exterior release handle with integrated keyhole AND backup camera hole (dual-port configuration) specifically engineered for the eighth-generation Toyota Hilux Revo (AN120/AN130 chassis, 2015–2018). Bearing OEM number 69090-0K110, this is the highest-specification tailgate handle variant in the Revo lineup — combining mechanical keyed locking with factory-ready camera mounting in a single unit. Available in both Chrome and Black finishes. Net weight 461g, gross weight 608.6g per piece (with inner box), shipped in an elongated 46 × 12.5 × 8 cm individual package. This dual-port handle serves top-trim Revo models and aftermarket upgrade buyers who require both security and rear-view functionality.
Three Hilux Revo Tailgate Handle Configurations
🔑📷
Keyhole + Camera Hole
69090-0K110
⚖️ GW: 608.6g
NW: 461g
🔑
Keyhole Only
69090-0K100
⚖️ GW: 606.6g
No Camera Hole
🖐️
Plain (No Ports)
69090-0K090
⚖️ GW: ~450g
Base Model Spec
⚠️ The dual-port 69090-0K110 is the heaviest variant due to reinforced structures around BOTH openings. All three configurations share identical outer dimensions (46×12.5×8cm) but are NOT interchangeable. Verify your vehicle’s original equipment before ordering.
Product Specifications
| Parameter | Specification |
|---|---|
| OEM Number | 69090-0K110 |
| Port Configuration | 🔑📷 Dual Port: Keyhole + Backup Camera Hole |
| Available Colors | ✨ Chrome · ⬛ Black |
| Application Position | 🛻 Rear Tailgate Exterior Handle ONLY |
| Vehicle Fitment | Toyota Hilux Revo AN120/AN130 (2015–2018) |
| Weight | NW: 461g | GW: 608.6g (with inner box) |
| Inner Box Dimensions | 📦 46 × 12.5 × 8 cm |
| Quality Standard | ISO9001 certified. Cycle tested ≥10,000 actuations. Salt spray 480h. Camera port IP67 alignment verified. |
🔑📷 Why the Dual-Port Handle Commands Premium Positioning
Top Trim OE Spec
Rogue, GR Sport, Conquest
Aftermarket Upgrade
Add camera to keyed-lock trucks
Universal Replacement
Fits ALL Revo trim levels
💡 The dual-port 69090-0K110 is backward-compatible: it fits base-model Revo trucks that originally had no camera hole (the unused camera port is simply covered by the trim panel). This makes it the safest "universal" replacement when the original configuration is unknown — eliminating the risk of ordering a keyhole-only handle for a truck that later receives a camera upgrade.
Compatible Vehicle Applications
| Model / Trim | Year Range | Configuration Notes |
|---|---|---|
| Hilux Revo Rogue / GR Sport | 2015 – 2018 | Factory dual-port (key + camera) |
| Hilux Revo SR5 / Conquest | 2015 – 2018 | Optional camera; keyhole standard |
| Hilux Revo Base / Fleet (Upgrade) | 2015 – 2018 | Aftermarket camera addition using dual-port handle |
⚠️ NOT compatible with pre-Revo Hilux (Vigo/AN10, 2005–2015) or post-2018 facelift models. All cab styles (Single/Extra/Double) within 2015–2018 share the same tailgate handle OE. Verify by VIN before ordering.
Frequently Asked Questions
Q1: Does "dual port" mean both the lock cylinder AND the camera are included?
A: No. This listing includes the handle body with pre-molded keyhole opening and camera hole opening only. Neither the mechanical lock cylinder nor the backup camera module/wiring harness is included. Both must be transferred from the original assembly or sourced separately. The handle provides precision-aligned mounting points for both components.
Q2: What is the difference between NW 461g and GW 608.6g? Why provide both?
A: NW (Net Weight) 461g is the handle body alone without packaging. GW (Gross Weight) 608.6g includes the inner box, protective foam inserts, and mounting hardware bag. We provide both because: ① NW helps installers verify they received the correct dual-port variant (heavier than single-port). ② GW is essential for freight calculation and customs declaration. The 147.6g packaging weight reflects reinforced protection for the dual-port structure during transit.
Q3: Can I use this dual-port handle on a base-model Hilux that originally had NO camera hole?
A: Yes. The mounting bolt pattern is identical across all Revo tailgate handle variants. The unused camera hole will be concealed behind the tailgate trim panel. This makes the 69090-0K110 the safest universal replacement when the original configuration is uncertain — it covers all possible trim levels without fitment risk.
Q4: How do I choose between Chrome and Black for the dual-port version?
A: Match the original vehicle specification: Chrome is standard on Rogue, GR Sport, and high-spec SR5 trims. Black is standard on Conquest, mid-spec SR5, and commercial/fleet variants with matte-black accessory packages. Both colors are identical in weight, dimensions, and internal mechanism. When upgrading a base model, chrome is preferred for resale value; black for fleet uniformity.
Contact Our Wholesale Team
Dual-Port Universal Fit! Specify Color When Ordering!
State clearly: "69090-0K110 CHROME" or "69090-0K110 BLACK". Mixed color orders welcome. Quote within 2 hours.
📍 Ruian, Wenzhou, Zhejiang Province, China (Auto Parts City)
