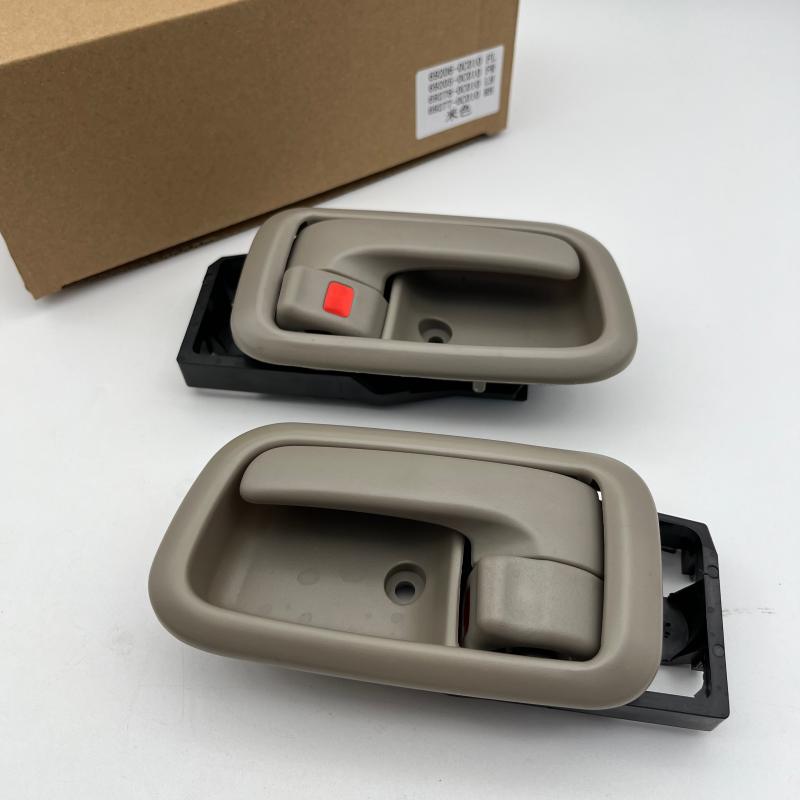

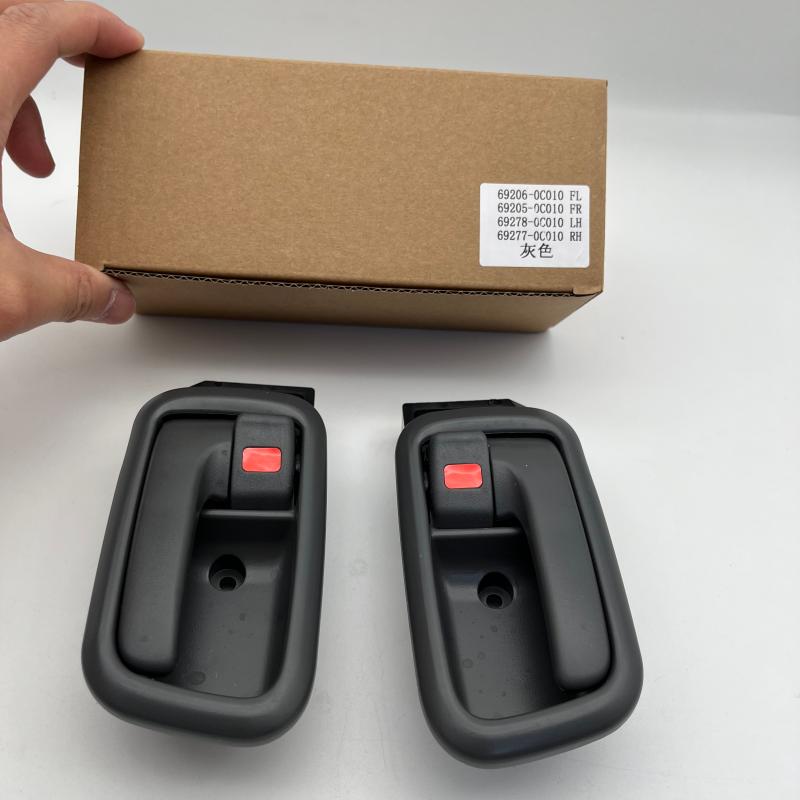

Toyota Tundra (2000–2006) Interior Door Handle & Bezel Assembly – 4 Handles + 2 Bezels | 6 OE Numbers | Beige or Gray | GW 142g
As a professional auto parts wholesaler located in Ruian, China's Auto Parts City, we supply the ROYUAN interior door release handle and bezel assembly (内拉手+饰框) for the first-generation Toyota Tundra XK30/XK40 (2000–2006). Unlike most passenger cars that share handles across doors, the Tundra uses four distinct handle OE numbers for each door position (FL/FR/RL/RR) plus two dedicated bezel OE numbers (LH/RH), totaling 6 unique part numbers per complete set. Available in factory-matched Beige and Gray interior colors. Each piece weighs 142g gross and ships in a compact 18.5 × 9.5 × 5.5 cm inner box optimized for high-density container loading.
Complete Tundra Interior Handle System Reference
🔧 DOOR HANDLES (4 Positions)
Front Left
69206-0C010
Front Right
69205-0C010
Rear Left
69208-0C010
Rear Right
69207-0C010
🖼️ BEZELS / TRIM PLATES (2 Sides)
Left Side (LH)
69278-0C010
Right Side (RH)
69277-0C010
⚠️ All 4 handles are position-specific and NOT interchangeable. Bezels are side-specific (LH/RH) and shared between front/rear on same side. Both handles and bezels available in BEIGE or GRAY. Specify exact OE + color when ordering.
Product Specifications
| Parameter | Specification |
|---|---|
| Handle OEs (4 pcs) | FL: 69206-0C010 · FR: 69205-0C010 · RL: 69208-0C010 · RR: 69207-0C010 |
| Bezel OEs (2 pcs) | LH: 69278-0C010 · RH: 69277-0C010 |
| Available Colors | 🟡 Beige · ⚪ Gray |
| Gross Weight | 142g/pc (handle or bezel, with inner box) |
| Inner Box Dimensions | 📦 18.5 × 9.5 × 5.5 cm per piece |
| Vehicle Fitment | Toyota Tundra XK30/XK40 (2000–2006), All Cab Styles |
| Quality Standard | ISO9001 · Cycle ≥30,000 · Color Fastness Tested · Pull Force 3.5–5.0N |
🔧 Why Does the Tundra Need 4 Different Handles?
Front Doors
Integrated power window switch cutout + lock rod linkage
Rear Doors
Simplified latch mechanism, different mounting angle
Left vs. Right
Mirror-image latch arms, non-symmetric clip geometry
Bezel = Separate Part
Trim plate sold independently, allows partial replacement
💡 Wholesale Strategy: The Tundra’s 4-position handle architecture means customers rarely need all 4 at once. Front driver-side handles fail 3× more frequently than rear passenger due to usage frequency. Stock heavily on FL (69206-0C010) and FR (69205-0C010), with lighter inventory on rear positions. Bezels (69278/77-0C010) are often replaced independently when cracked during previous repairs. At 142g and 18.5cm per box, this SKU achieves ~3,200 pcs/CBM for optimal freight efficiency.
Compatible Vehicle Applications
| Model | Year Range | Chassis / Cab Style |
|---|---|---|
| Toyota Tundra | 2000 – 2006 | XK30/XK40 (1st Gen), Regular / Access / Double Cab |
⚠️ NOT compatible with Tundra XK50 (2007+) which uses completely different handle architecture. Same OE applies to all cab styles within 2000–2006 range. Verify door position (FL/FR/RL/RR) and color before ordering.
Frequently Asked Questions
Q1: Can I use a front handle in the rear position or vice versa?
A: No. Front handles (69206/69205) have integrated power window switch cutouts and different latch linkage geometry compared to rear handles (69208/69207). Rear handles lack the switch opening and have a simplified mounting bracket. Installing a front handle in a rear door will leave an exposed switch hole and may not engage the latch correctly. Always match the exact position-specific OE.
Q2: Do I need to buy the bezel separately, or does it come with the handle?
A: Sold separately. The handle (69206/05/08/07-0C010) and bezel/trim plate (69278/77-0C010) are independent components with separate OE numbers. Many customers only need the handle mechanism and can reuse their existing bezel. Others need only the bezel after it cracked during a previous repair. Order exactly what you need — no forced bundling.
Q3: My Tundra has beige interior but the handles look faded. Will new beige handles match?
A: Our Beige handles are color-matched to new/unfaded OE specification. If your existing trim has significantly yellowed or darkened from UV exposure over 20+ years, the new handle may appear lighter. We recommend: (1) ordering one sample first to verify against your specific vehicle, or (2) replacing all visible handles simultaneously for uniform appearance. Gray tends to show less age-related color shift.
Q4: Does this fit both Regular Cab and Double Cab Tundras?
A: Yes. All three Tundra cab configurations (Regular Cab 2-door, Access Cab extended, Double Cab 4-door) within the 2000–2006 model years share the same interior door handle OE numbers. Front handles apply to all cabs; rear handles (69208/69207) apply only to Access Cab and Double Cab models that have rear doors.
