Toyota Corolla E170 (2014–2016) Exterior Door Handle – 4 Finishes | LH 69212-02170 + RH 69211-02320 | 4 Unique Caps FL/FR/RL/RR | Black Chrome White
As a professional auto parts wholesaler located in Ruian, China's Auto Parts City, we supply the ROYUAN exterior door handle assembly (外拉手总成) for the Toyota Corolla E170/E180 (2014–2016). This generation features a sophisticated dual-component design: separate handle bodies (LH 69212-02170 / RH 69211-02320) and position-specific decorative caps. Available in an industry-leading four finish combinations: Black with Chrome Accent, All Black, White, and White with Chrome Strip. Each of the four door positions uses a unique cap OE (FL 69218-02220 / FR 69227-02320 / RL 69228-02460 / RR 69217-02460) that is NOT interchangeable. Direct bolt-on replacement retaining OE lock cylinder and linkage — no drilling or modification required.

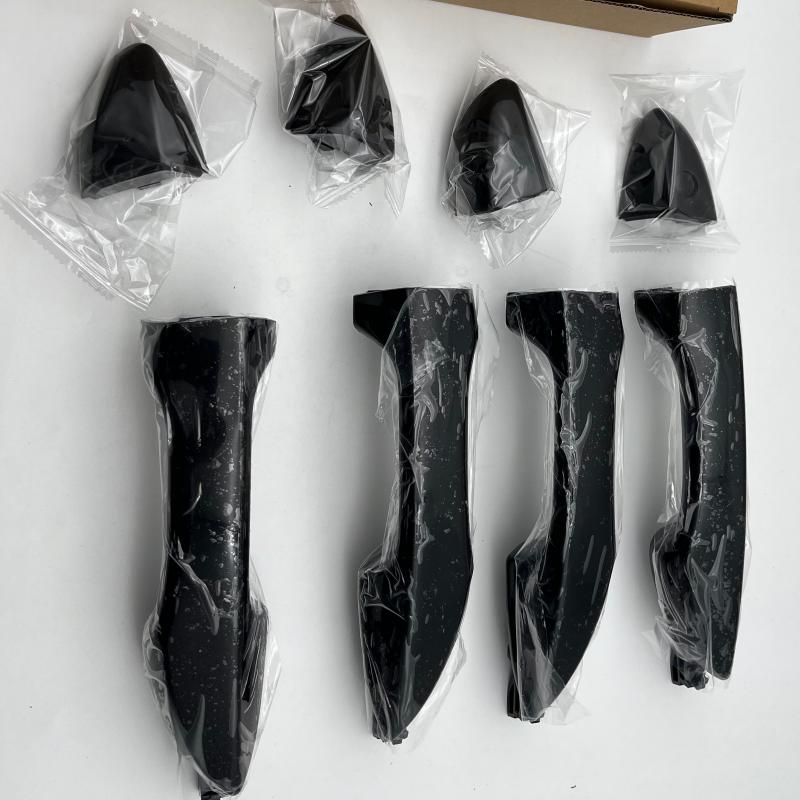

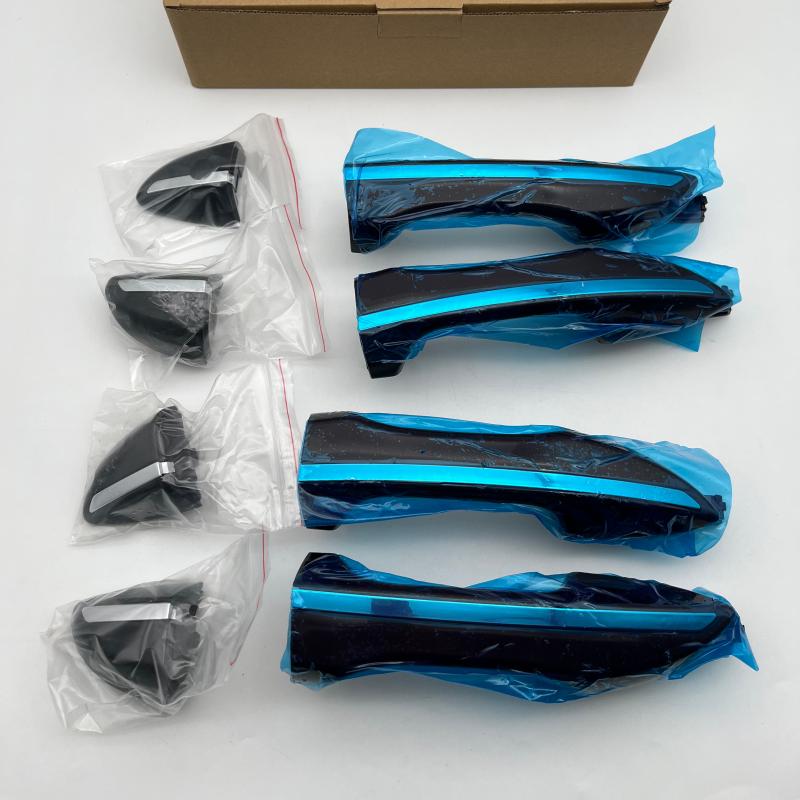

Complete OE Breakdown: Handle Body + 4 Position-Specific Caps
🔧 HANDLE BODIES (LH ≠ RH)
⬅️ LH (Left Hand)
69212-02170
➡️ RH (Right Hand)
69211-02320
🎨 DECORATIVE CAPS (4 Unique OEs — NOT Interchangeable)
FL Cap
69218-02220
FR Cap
69227-02320
RL Cap
69228-02460
RR Cap
69217-02460
🎨 4 Available Finishes: ① Black + Chrome Accent · ② All Black · ③ White · ④ White + Chrome Strip
⚠️ CRITICAL: All 4 cap OEs are unique per position. FL ≠ FR ≠ RL ≠ RR. Handle body is sold separately from caps. Verify exact finish code against vehicle trim level before ordering.
Product Specifications
| Parameter | Specification |
|---|---|
| LH Handle Body OE | 69212-02170 |
| RH Handle Body OE | 69211-02320 |
| Cap OEs (FL/FR/RL/RR) | 69218-02220 / 69227-02320 / 69228-02460 / 69217-02460 |
| Available Finishes | 🖤✨ Black+Chrome · 🖤 All Black · ⚪ White · ⚪✨ White+Chrome |
| Vehicle Fitment | Toyota Corolla E170/E180 (2014–2016) |
| Quality Standard | ISO9001 · Cycle ≥30,000 · Chrome Salt Spray ≥200h · UV Resistant |
🏆 Four Finishes, Four Trim Levels: Precision Color Matching Guide
Black+Chrome
LE/XLE Premium
All Black
L/Base/Fleet
White
Super White Pearl
White+Chrome
Premium White
💡 Wholesale Strategy: The E170 Corolla's dual-component handle architecture creates significant inventory complexity but also substantial competitive advantage. Most aftermarket suppliers only stock 1–2 finishes; offering all four establishes your catalog as the definitive Corolla handle source. For wholesale accounts: stock ratio should mirror regional trim distribution. North America/Japan: Black+Chrome 40%; Middle East/Southeast Asia: White variants 50%; Fleet/taxi markets: All Black 30%. Always verify buyer's vehicle paint code and trim level before confirming finish — mismatched color is the #1 return reason for this SKU family.
Compatible Vehicle Applications
| Model | Year Range | Chassis / Notes |
|---|---|---|
| Toyota Corolla | 2014 – 2016 | E170/E180, Sedan, All Trims (L/LE/XLE/SE), Dual-Component Handle Design |
⚠️ NOT compatible with Corolla E140 (2004–2013) or E210 (2017+). Fits LHD and RHD markets (verify side designation). Verify exact finish against vehicle paint code and trim level before ordering.
Frequently Asked Questions
Q1: Are the handle body and cap sold together or separately?
A: This listing covers both components. The handle body (LH 69212-02170 / RH 69211-02320) provides the structural and mechanical function, while the decorative cap determines the visible finish. Both must be ordered together for a complete assembly. If you only need to replace a damaged cap while retaining the original handle body, please contact our team for cap-only availability.
Q2: Why are there four different cap OEs? Can I use an FL cap on the RR position?
A: No. Each cap OE corresponds to a specific door position due to differences in curvature, mounting clip locations, and chrome accent alignment. FL (69218-02220), FR (69227-02320), RL (69228-02460), and RR (69217-02460) are all unique and NOT interchangeable. Installing a cap on the wrong position will result in visible gaps, misaligned chrome strips, or failure to snap into place.
Q3: How do I determine which of the four finishes my Corolla requires?
A: Match the finish to your vehicle's trim level and paint code: Black+Chrome = LE/XLE premium trims; All Black = L/base/fleet trims; White = Super White Pearl (040) paint; White+Chrome = premium white trims with chrome package. When uncertain, photograph your existing handle and send via WhatsApp for visual confirmation before ordering.
Q4: Do I need to transfer my original lock cylinder and linkages?
A: Yes. This product supplies the handle body shell and decorative cap only. Lock cylinders, rods, clips, and any electronic modules must be transferred from your original handles during installation. We recommend inspecting all linkage bushings and retaining clips during replacement — aged plastic components are a common failure point on 2014–2016 Corollas approaching 10 years of service.
